2025 CIMC AU15 40′ Drop Deck Skeletal Trailer

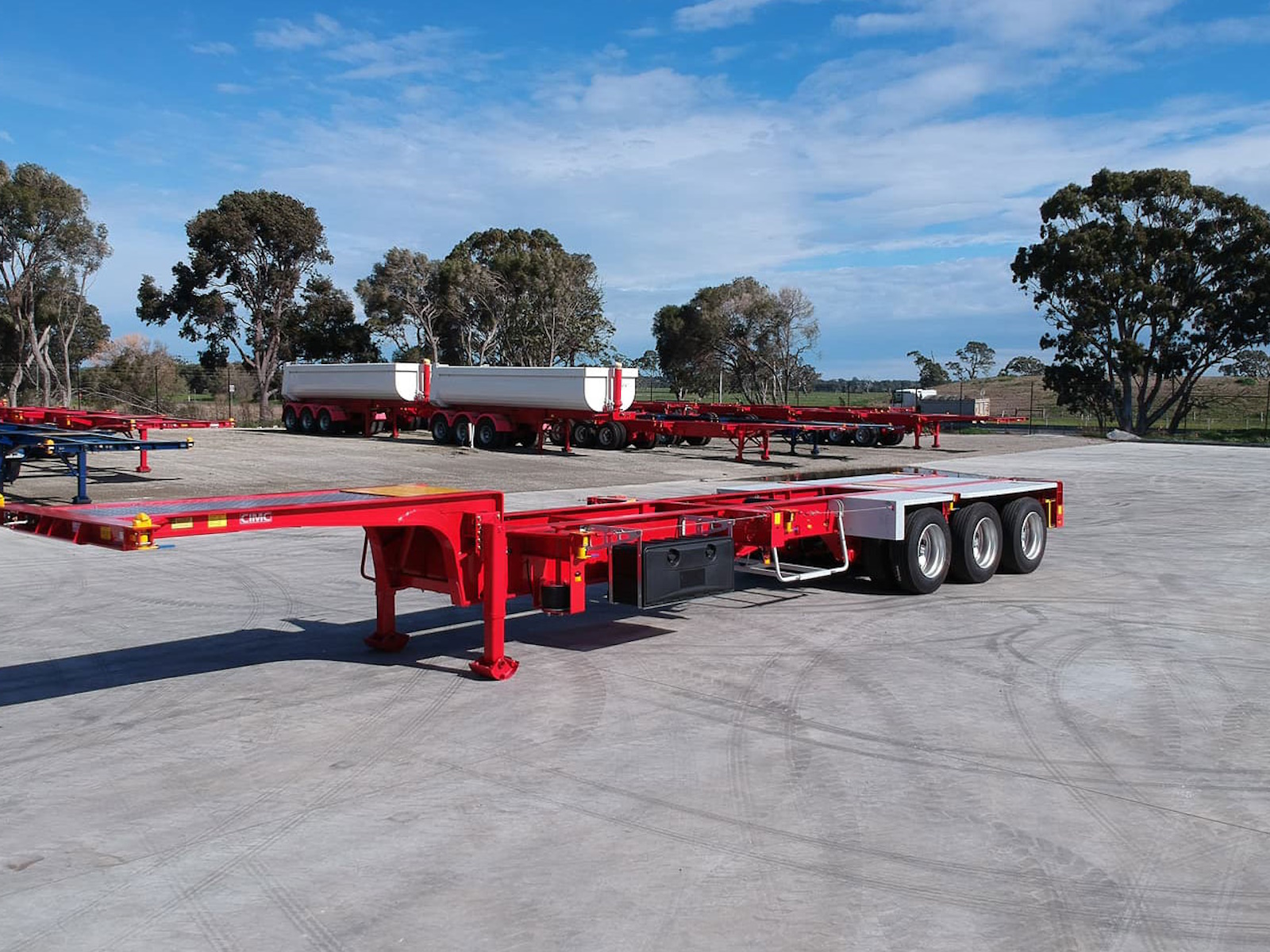

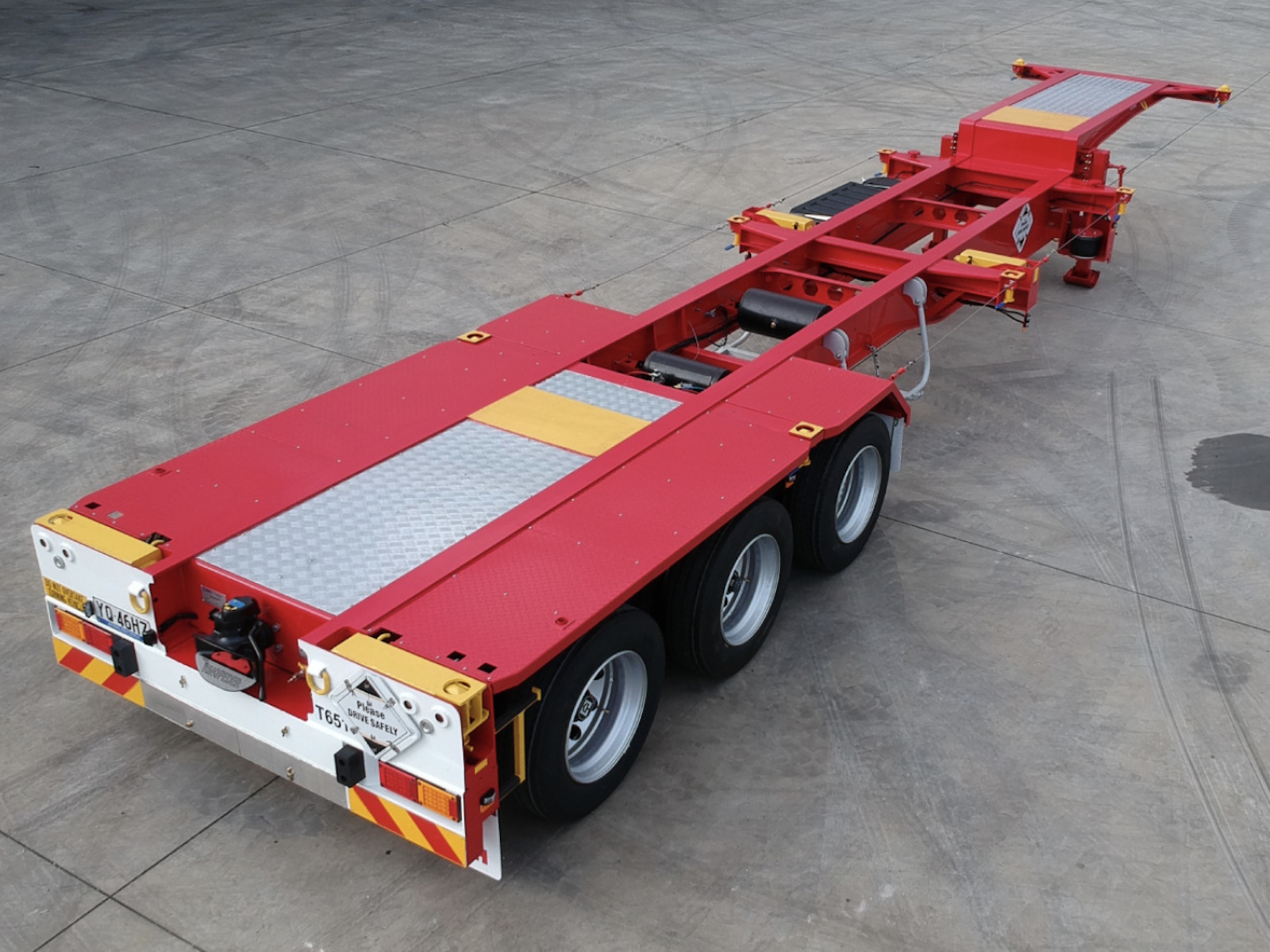

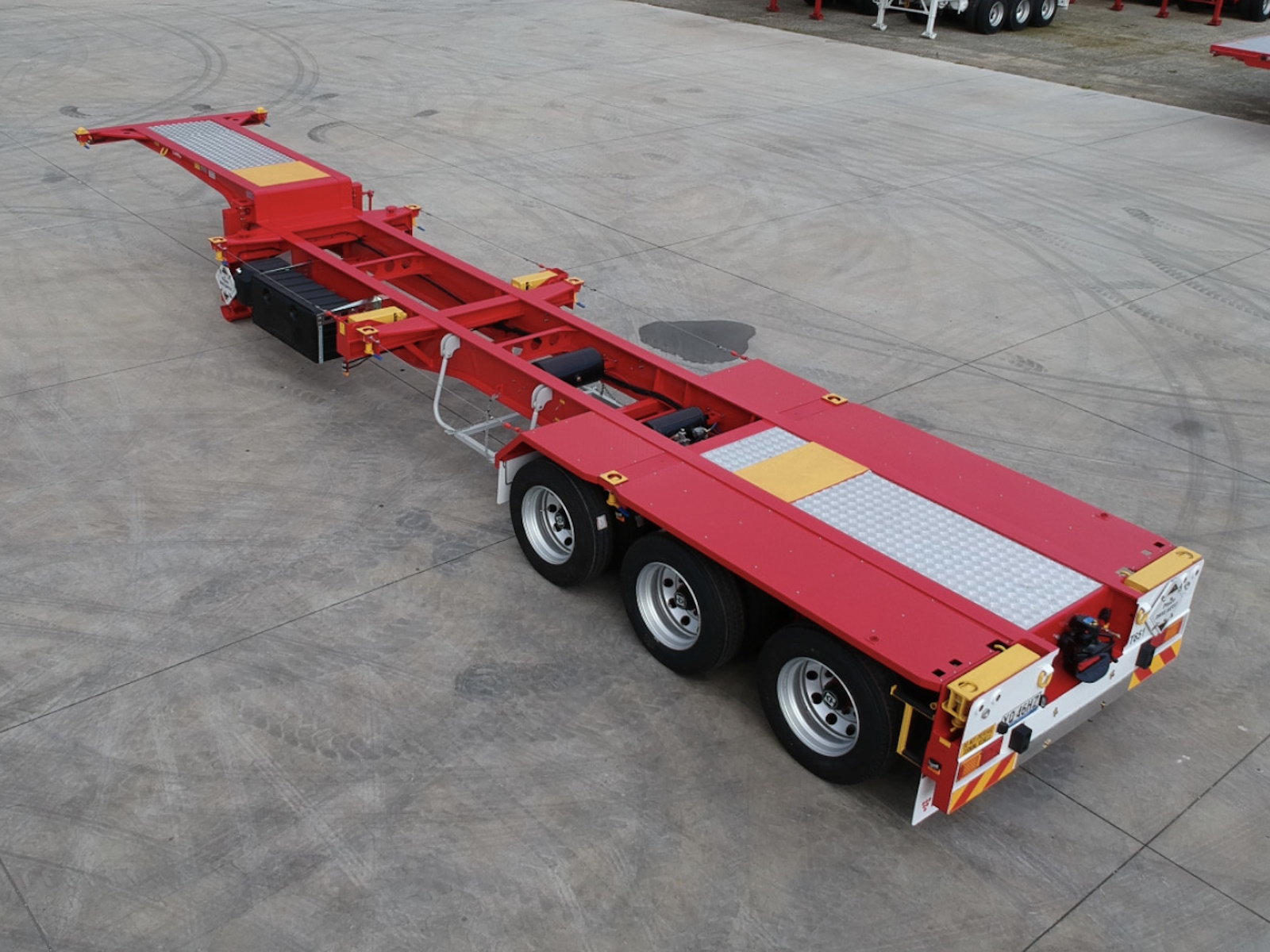

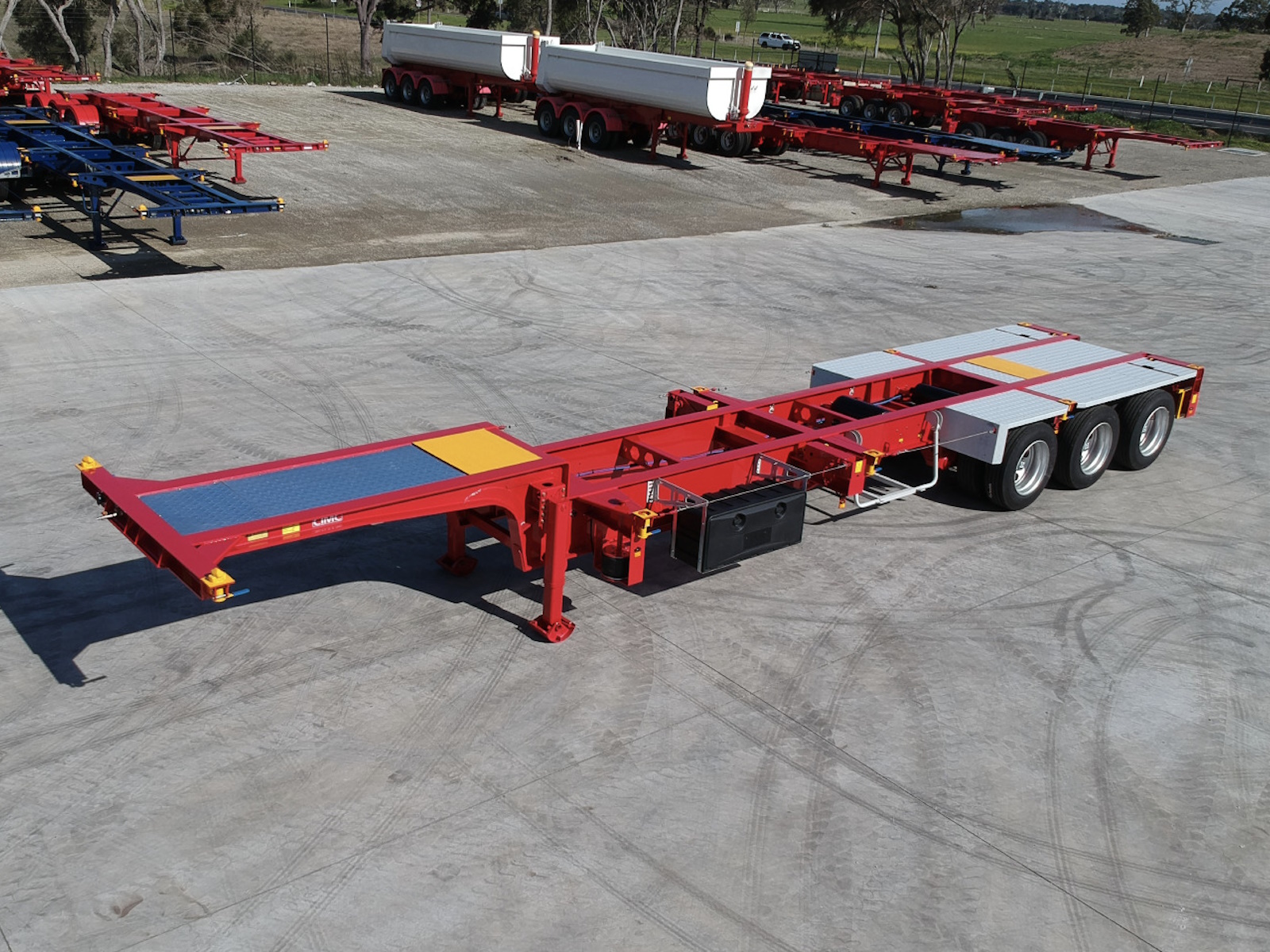

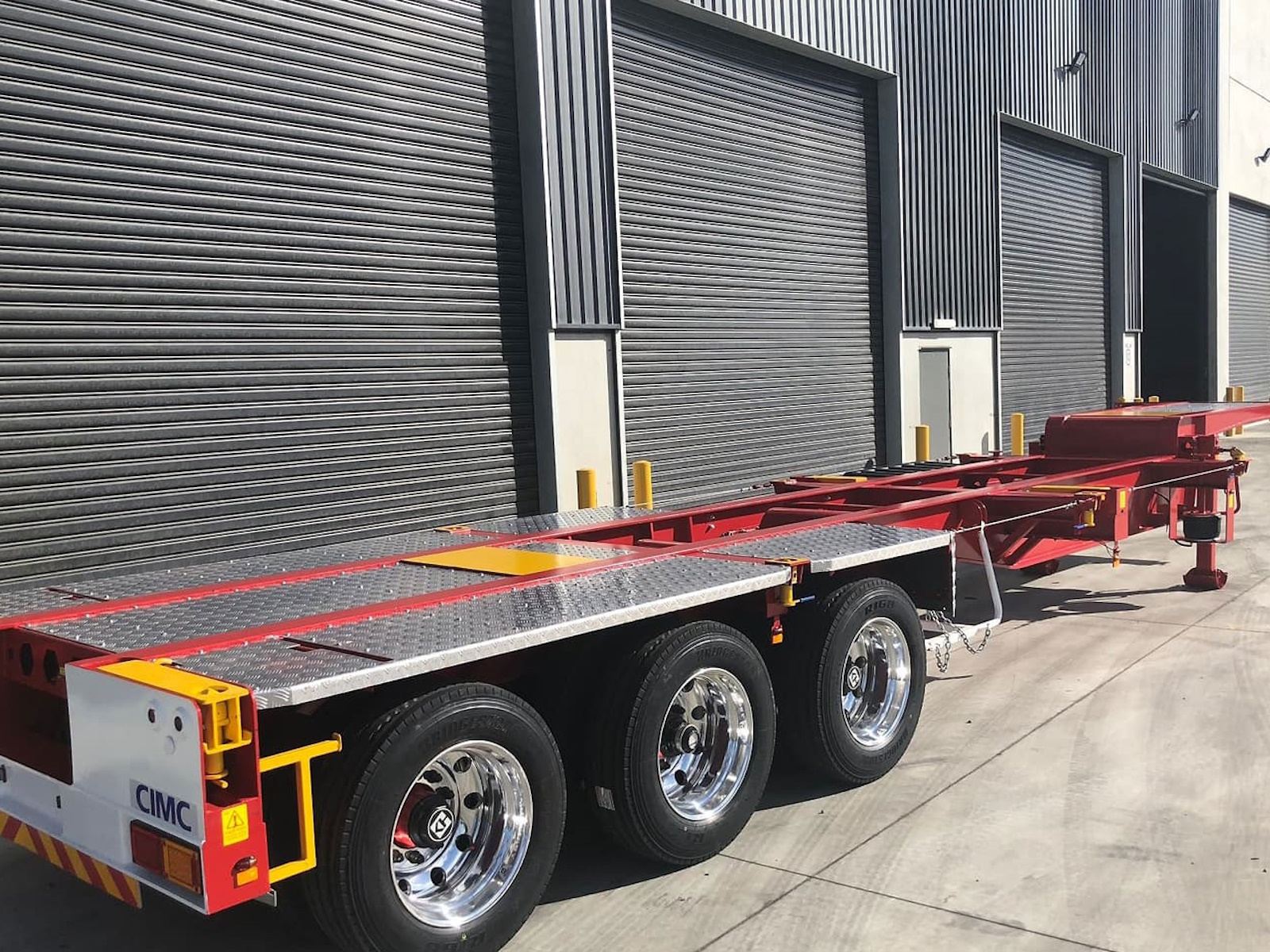

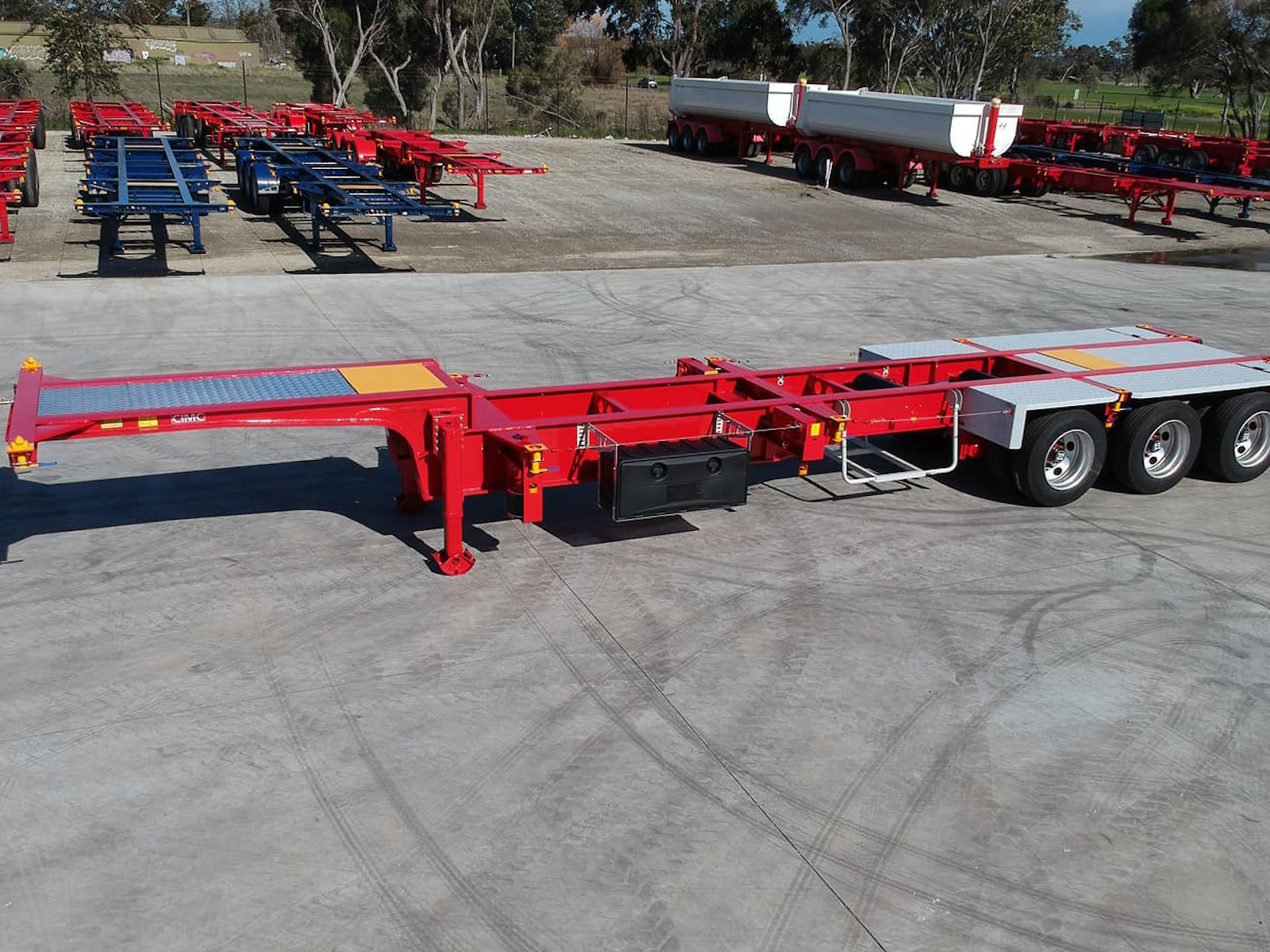

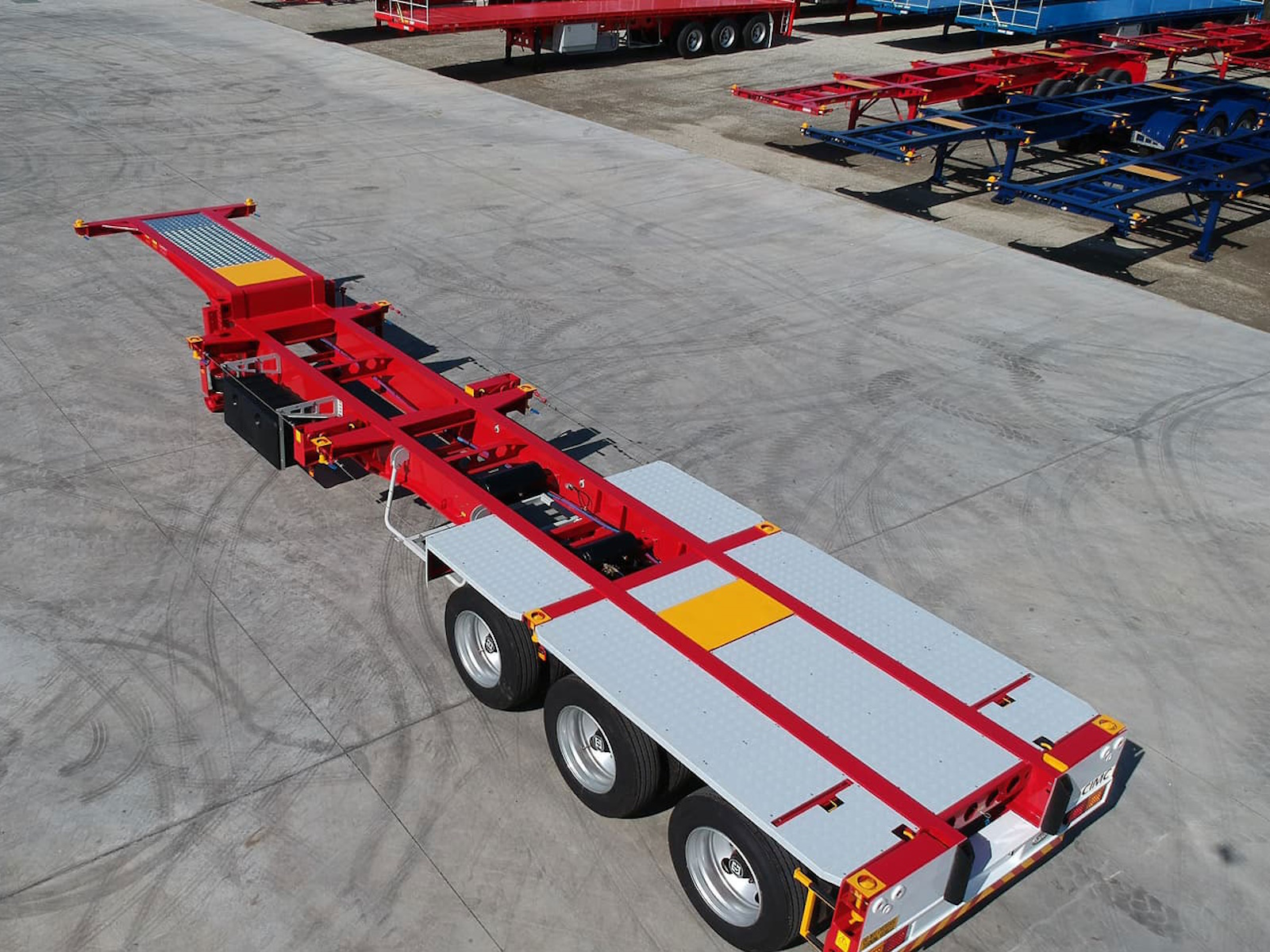

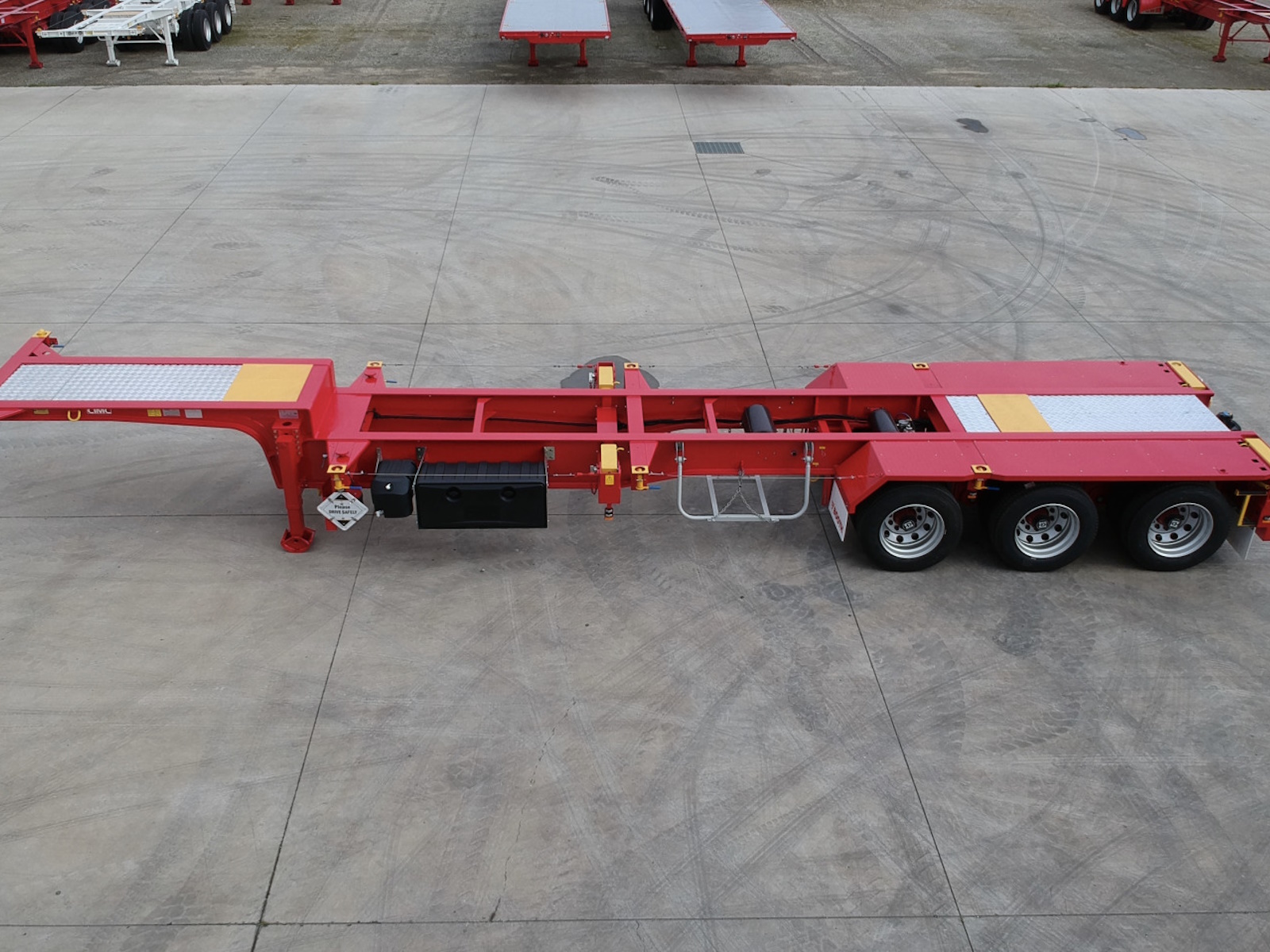

CIMC AU15 40′ Drop Deck Skeletal Trailer

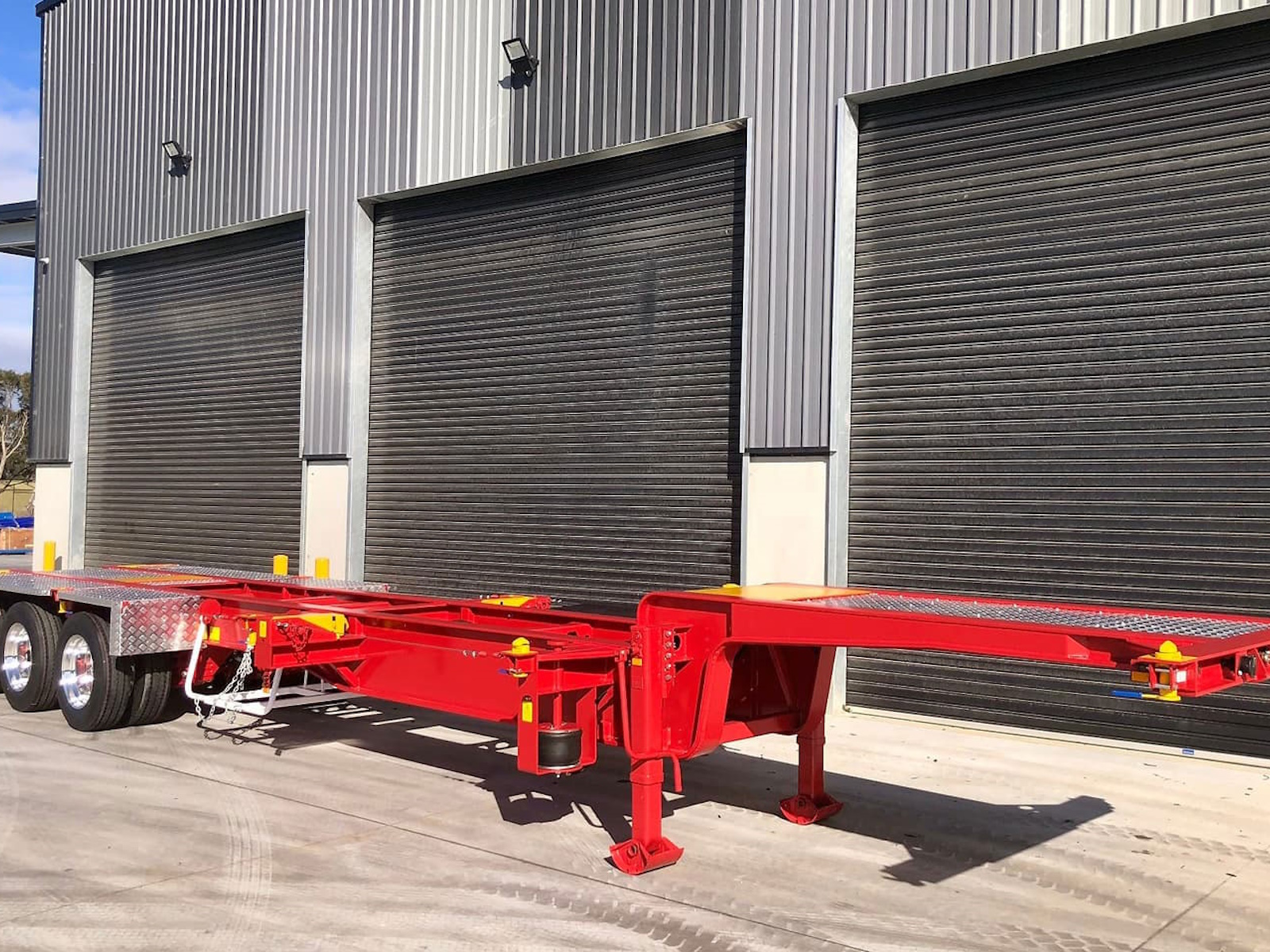

Our Heavy-Duty 3-way Drop Deck Skeletal Trailer is a purpose built trailer to suit carrying heavy 1×20′ containers & ISO tank containers. While also giving you the ability to carry 2×20′ & 1×40′ containers. The safety aspect of the Drop Deck allows the centre of gravity to be lower while carrying heavy containers. Featuring fold down pedestal legs at the rear of the front 1×20′ Container and at the rear of the trailer for those 1×40′ containers. Another standard feature is the air operated lift airbag under the front of the heavy 1×20′ to tip the container. Designed to suit the rigours of the harsh Australian outback and to be an asset to any container carrying business.

Features May Include:

• KHITCH 50mm bolt-on kingpin with 10mm skid plate
• JOST A400 Series 2 speed landing legs with rocker feet
• 3mm aluminum chequer plate deck covers in between main rails

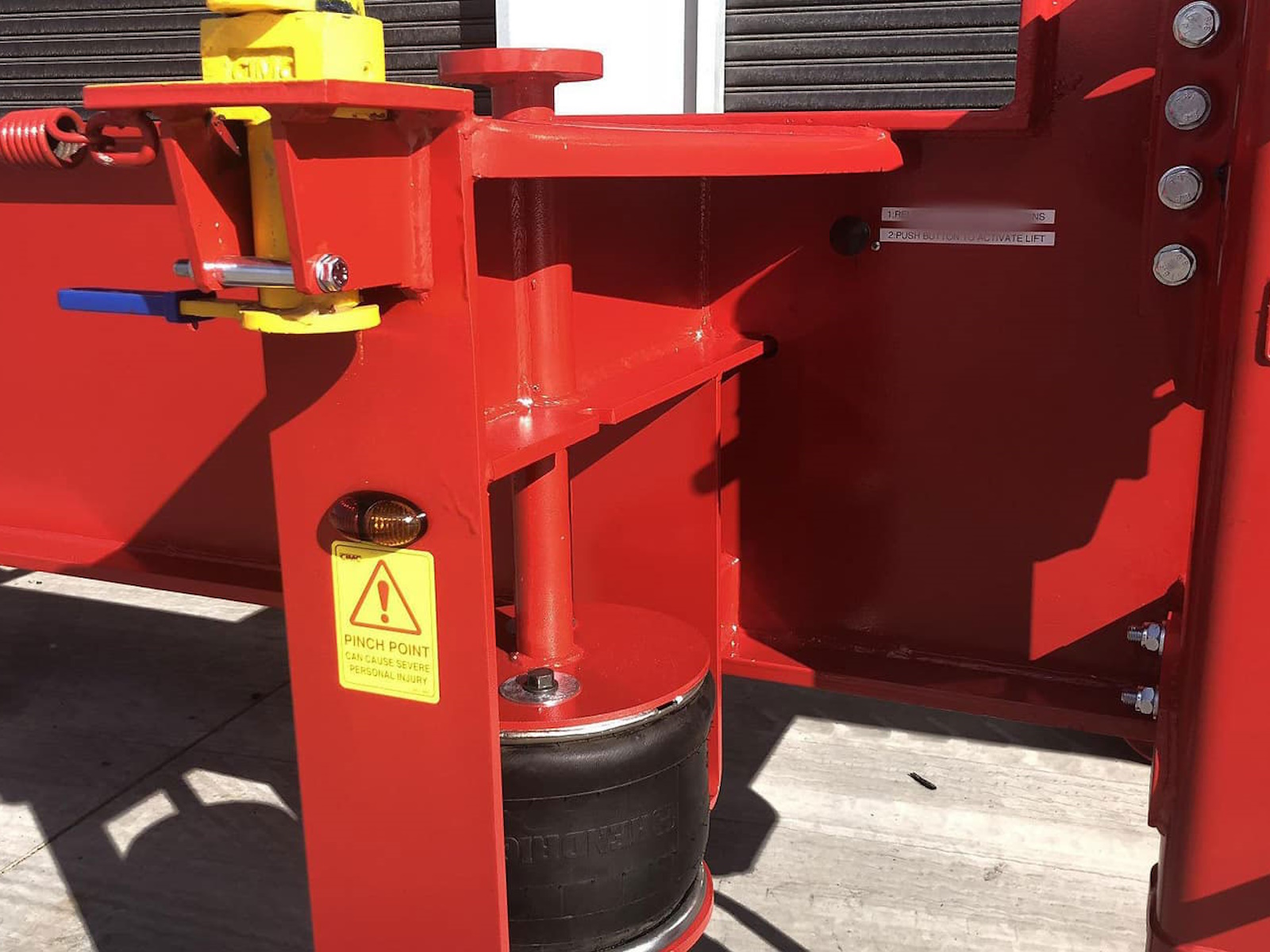

• Air operated airbag under front heavy center to tip container fitted with airbag protection as standard
• Side Loader Pads & side intrusion cables fitted
• 3 Way Twist Locks: 1 x 20’, 2 x 20’ and 1 x 40’
• Rear bumper bar incorporated on rear twist lock beam with recessed lights
• Dock rubbers fitted at rear
• Provision for Road Train, air & electrical to rear (Tow coupling not fitted)
• Conspicuity plates at rear
• Swing type dual spare tyre carrier fitted
• K-Hitch 146mm drum brake round axles with parallel bearings
• K-Hitch tri-axle underslung airbag suspension KT Series
• Auto Slack Adjusters fitted
• Hubodometer fitted on centre axle roadside
• WABCO EBS Multi-Voltage (EBS) brake system to ADR 38/05
• Front connection plate w/PBR air couplings
• Twelve (12) off 275/70R22.5
• Twelve (12) off 10 Stud 285 PCD steel rims
• Optional: Alloy Wheels
• 3mm steel chequer plate guards to suit B double application
• LED multi-volt lighting to ADR 13
• 7-pin socket & heavy duty socket at front and rear
• Dangerous Goods wiring loom with weatherproof connectors and conduit
• Chassis, twist lock beams and bumper bar finished in 2pak paint
• Approx. 6,460kg based on standard specification
