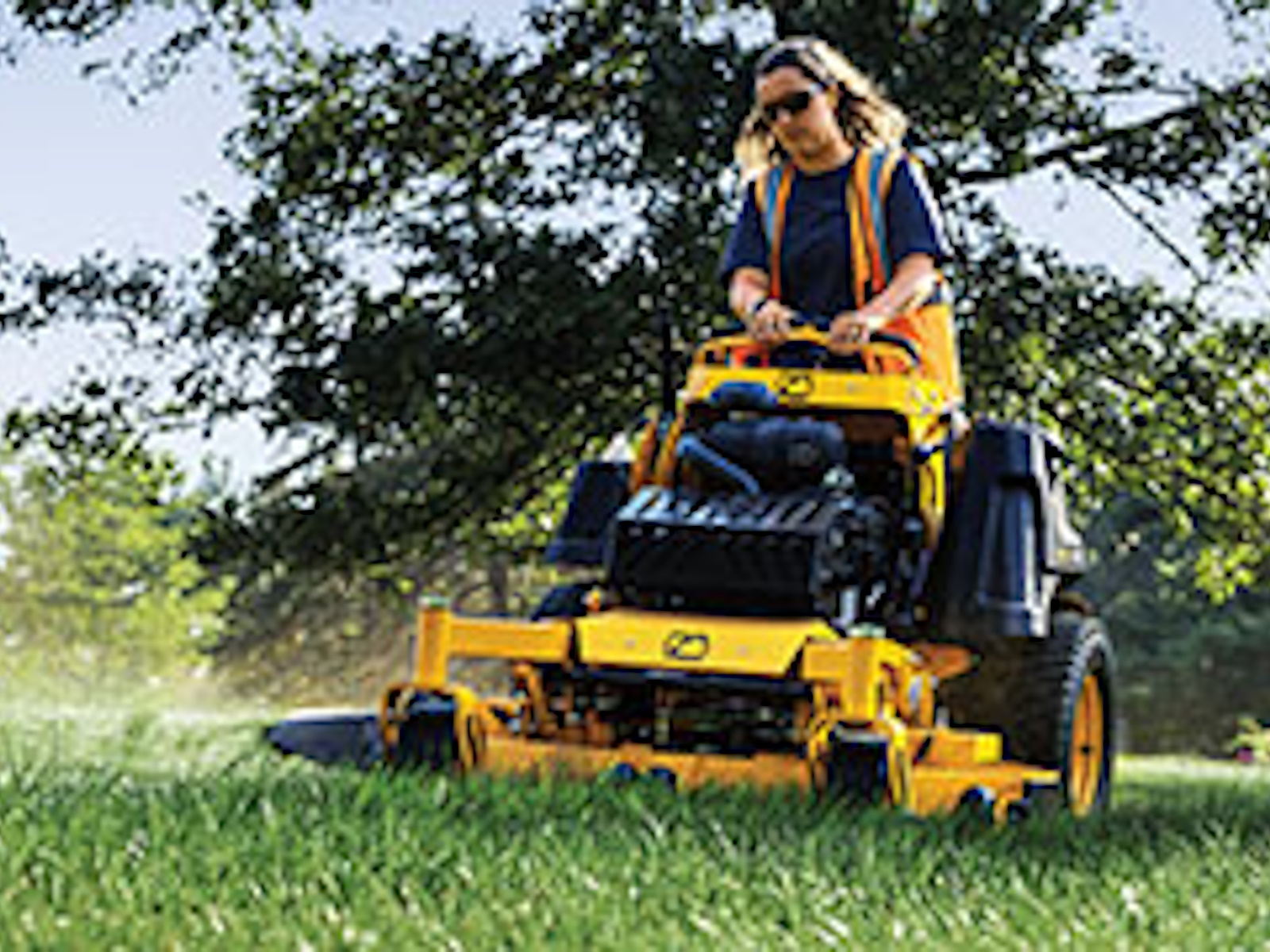

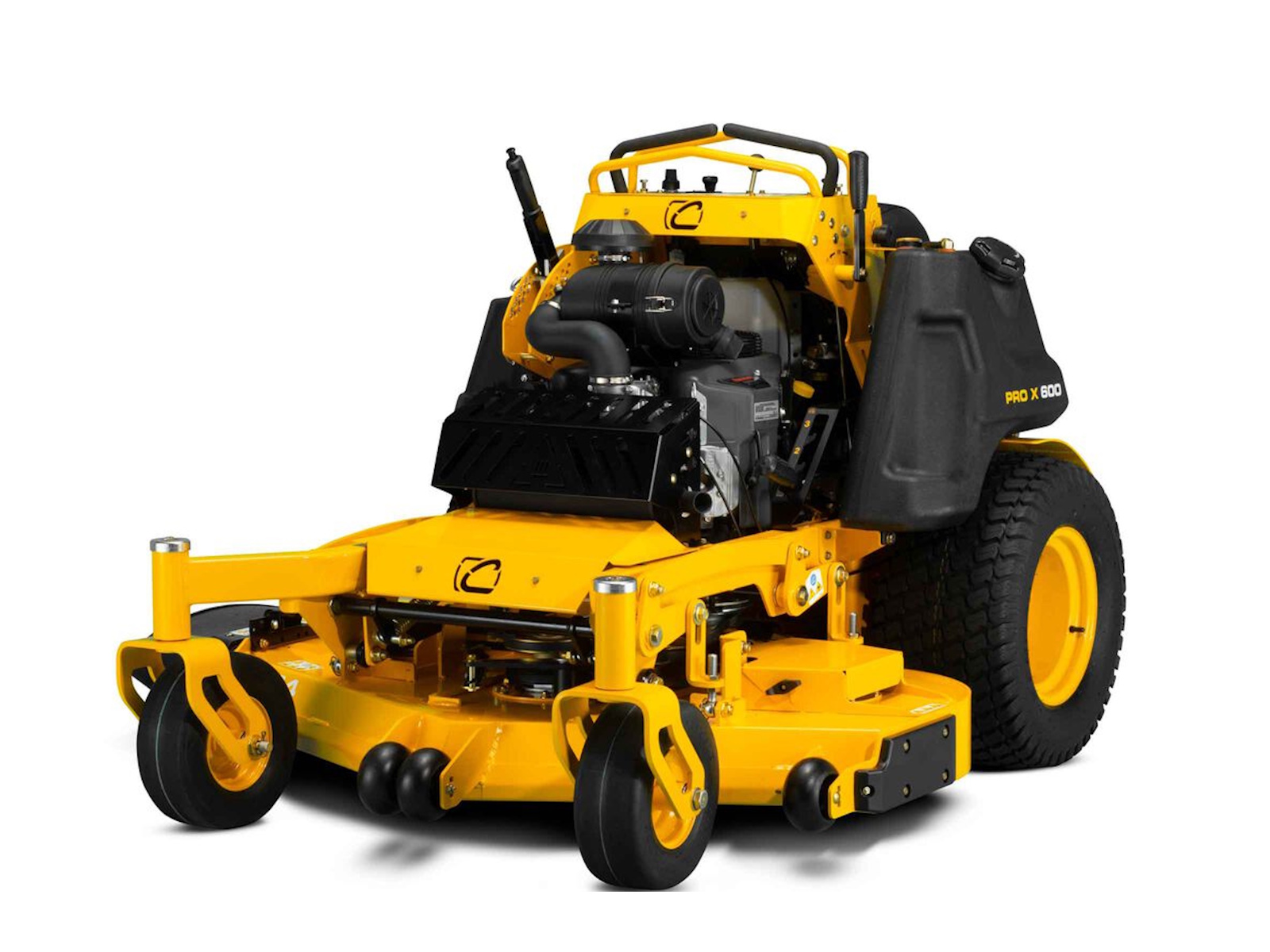

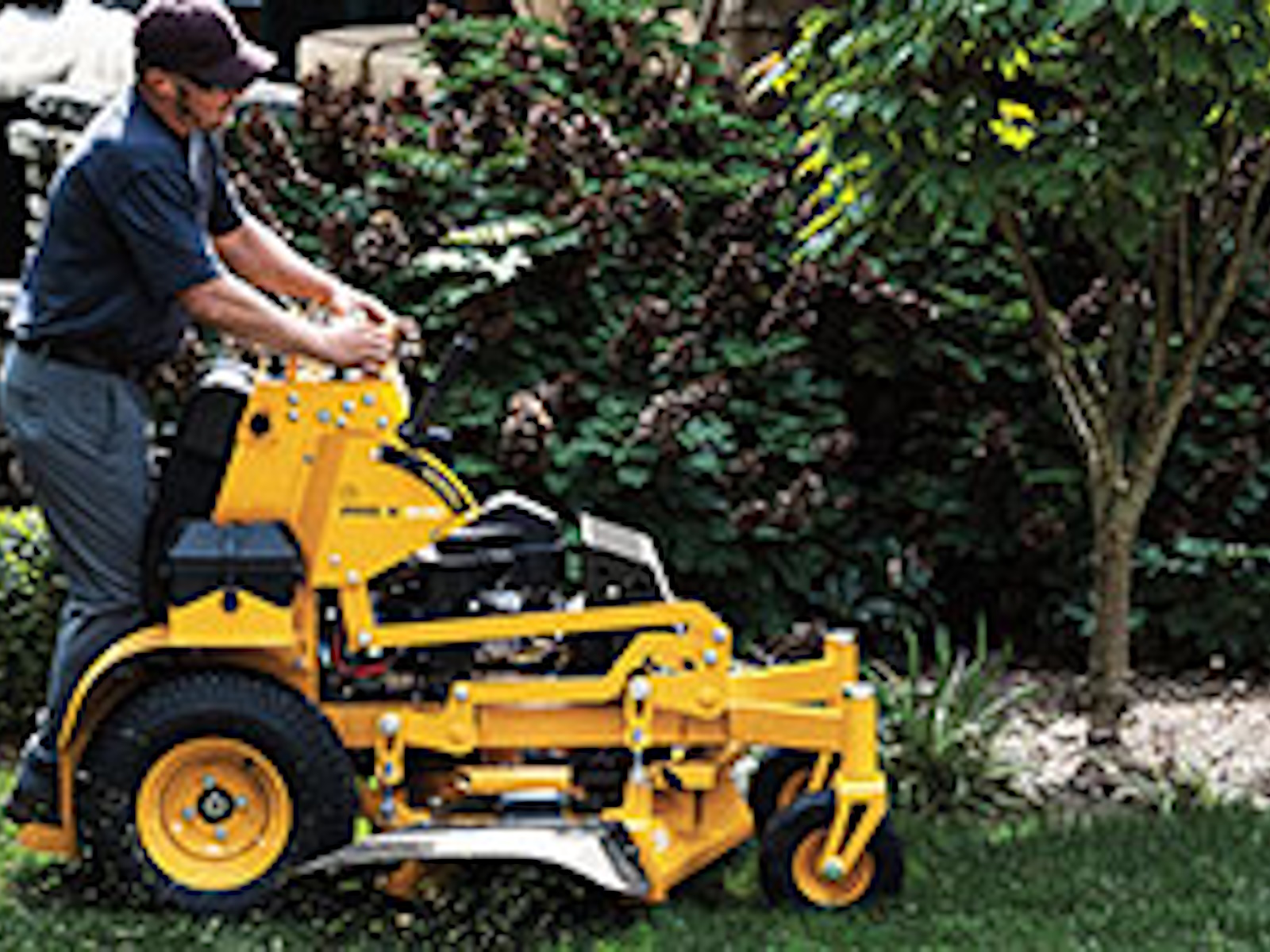

2027 Cub Cadet PRO X 654

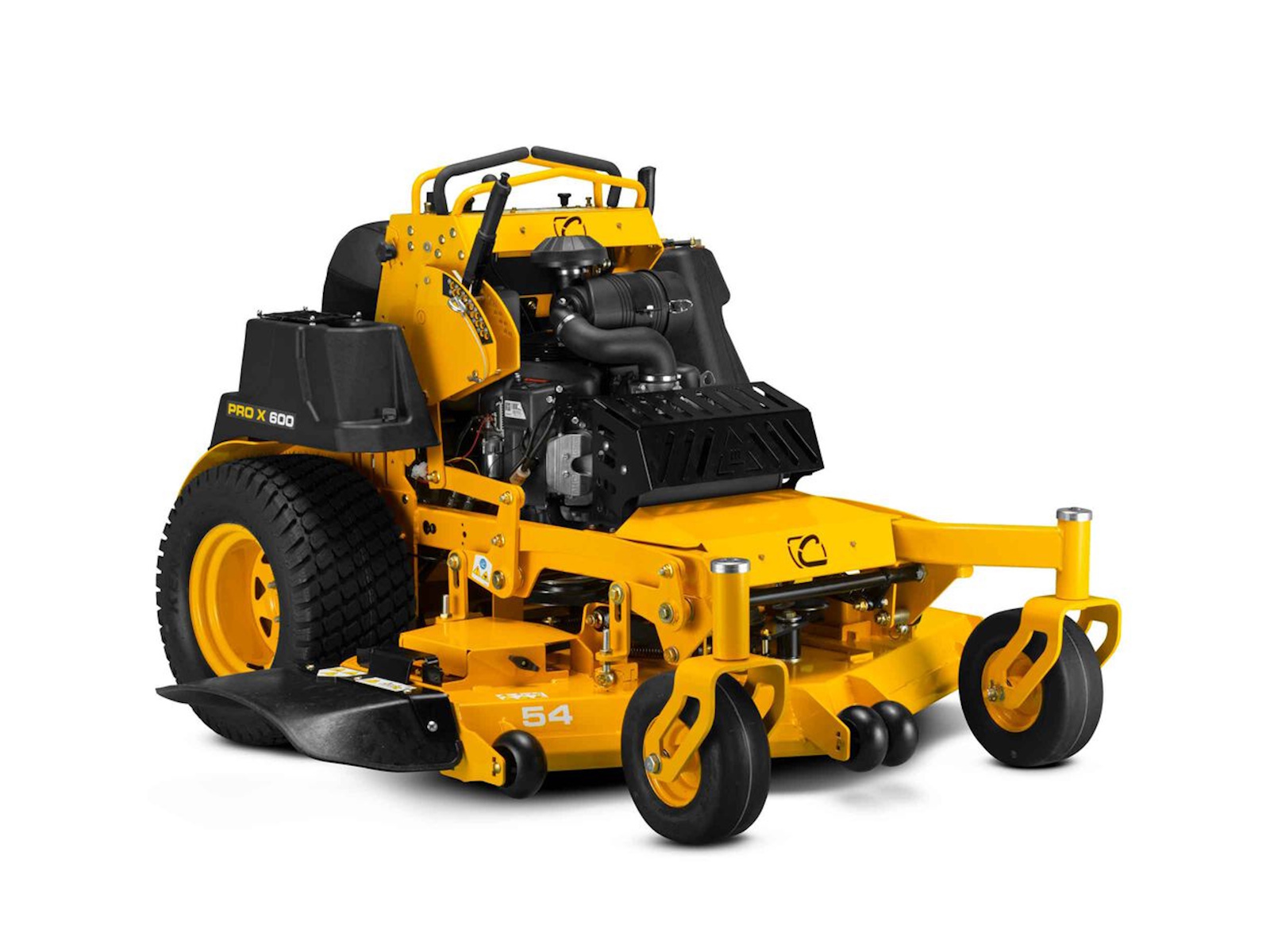

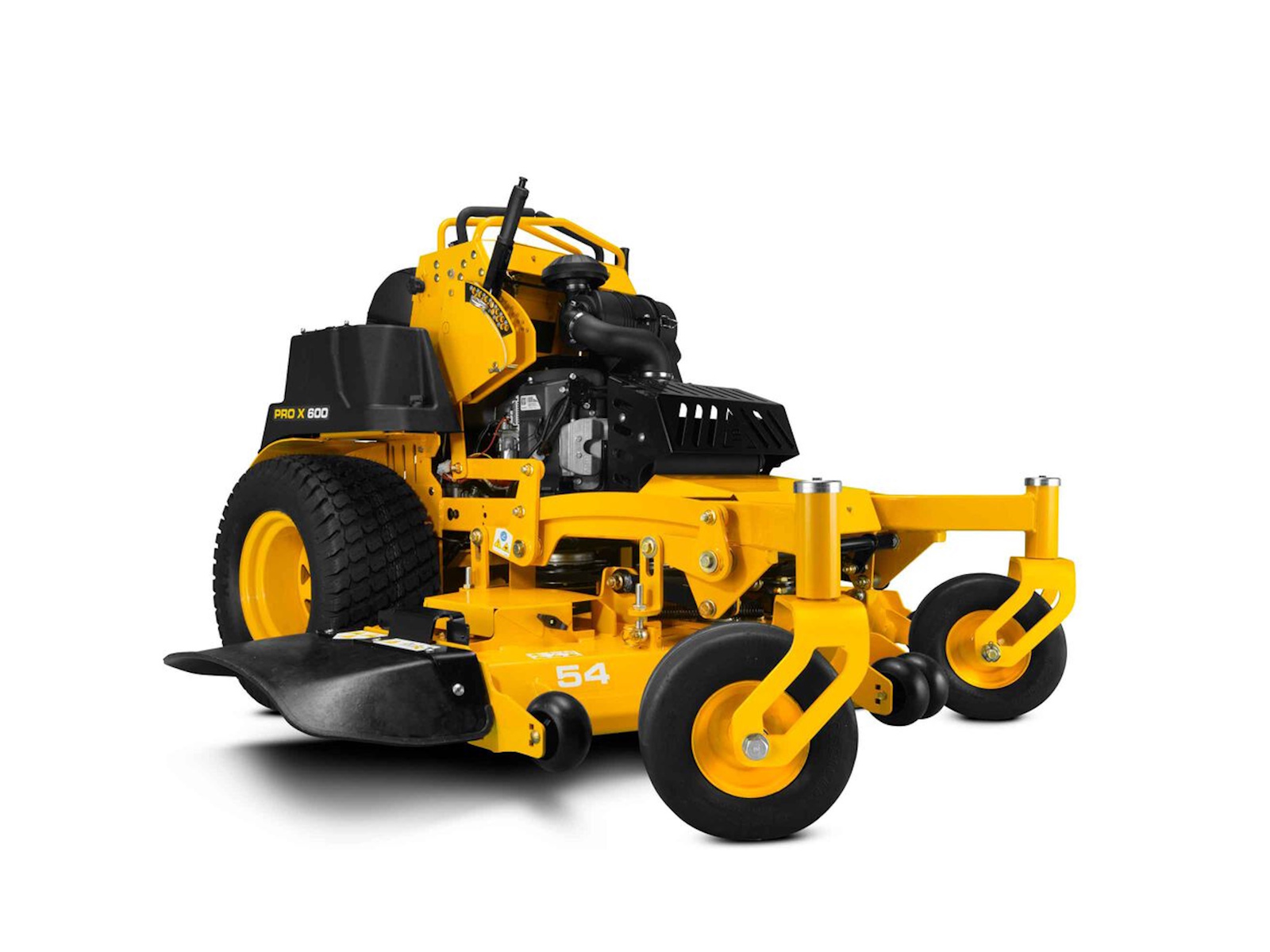

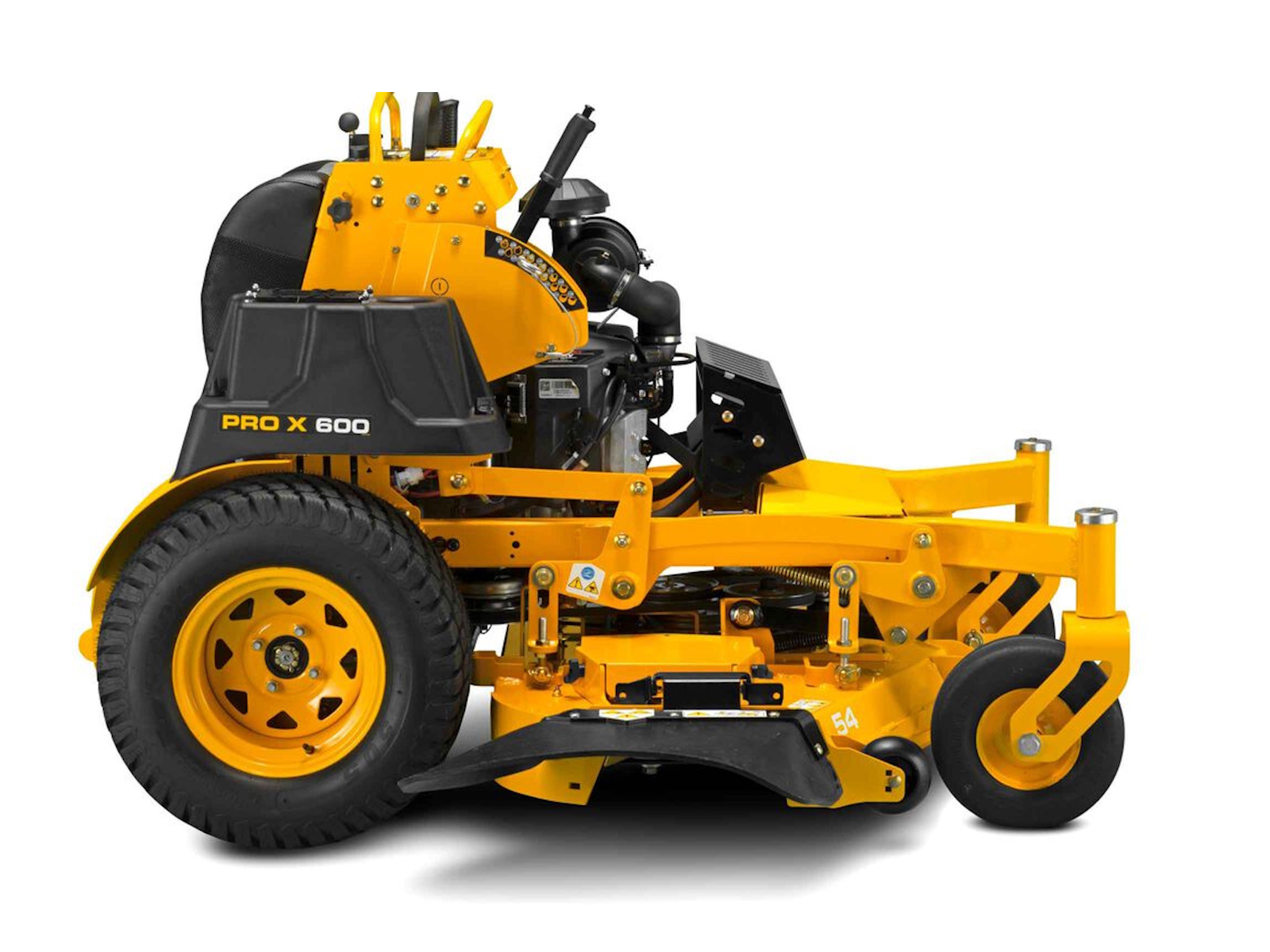

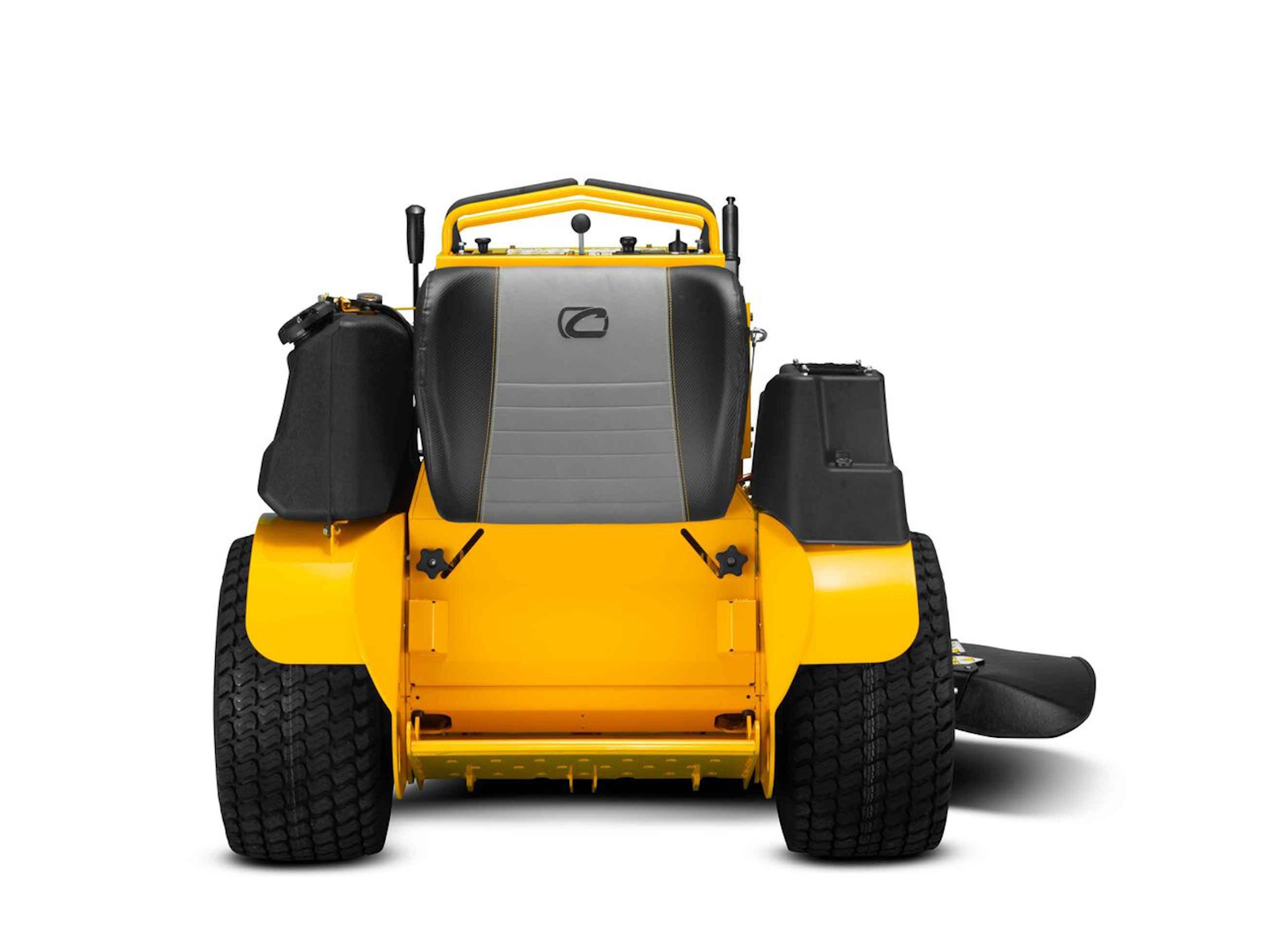

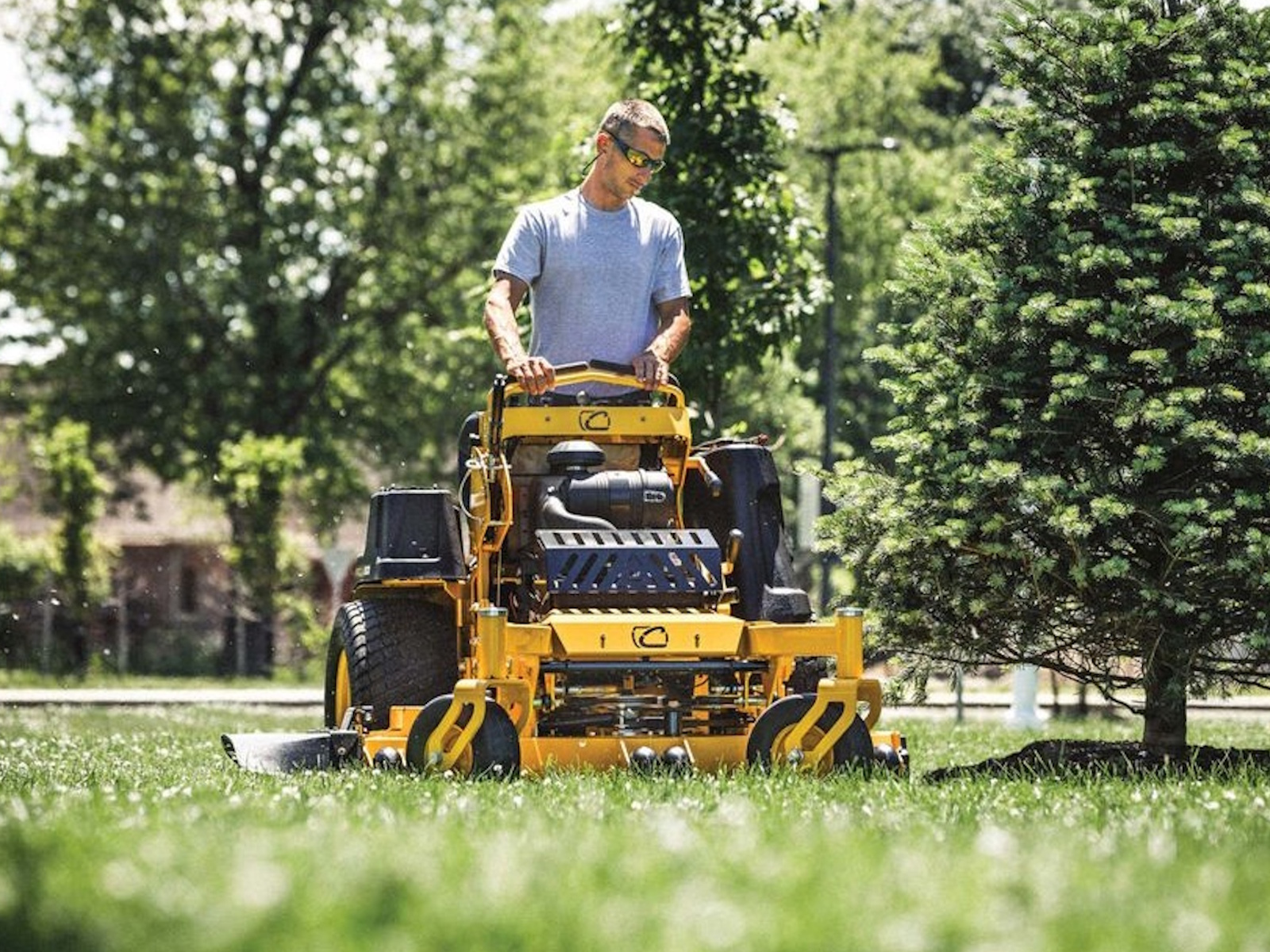

The Cub Cadet® PRO X 654 54-in. 25.5 HP* Commercial Stand-On Lawn Mower features a fully fabricated 10-gauge steel commercial deck shell with top, bottom and side reinforcements. Standard 24-in. tires are designed to give you ground clearance to easily hop on curbs. A large, fully adjustable suspension platform is engineered to allow you to glide comfortably through tough terrains.

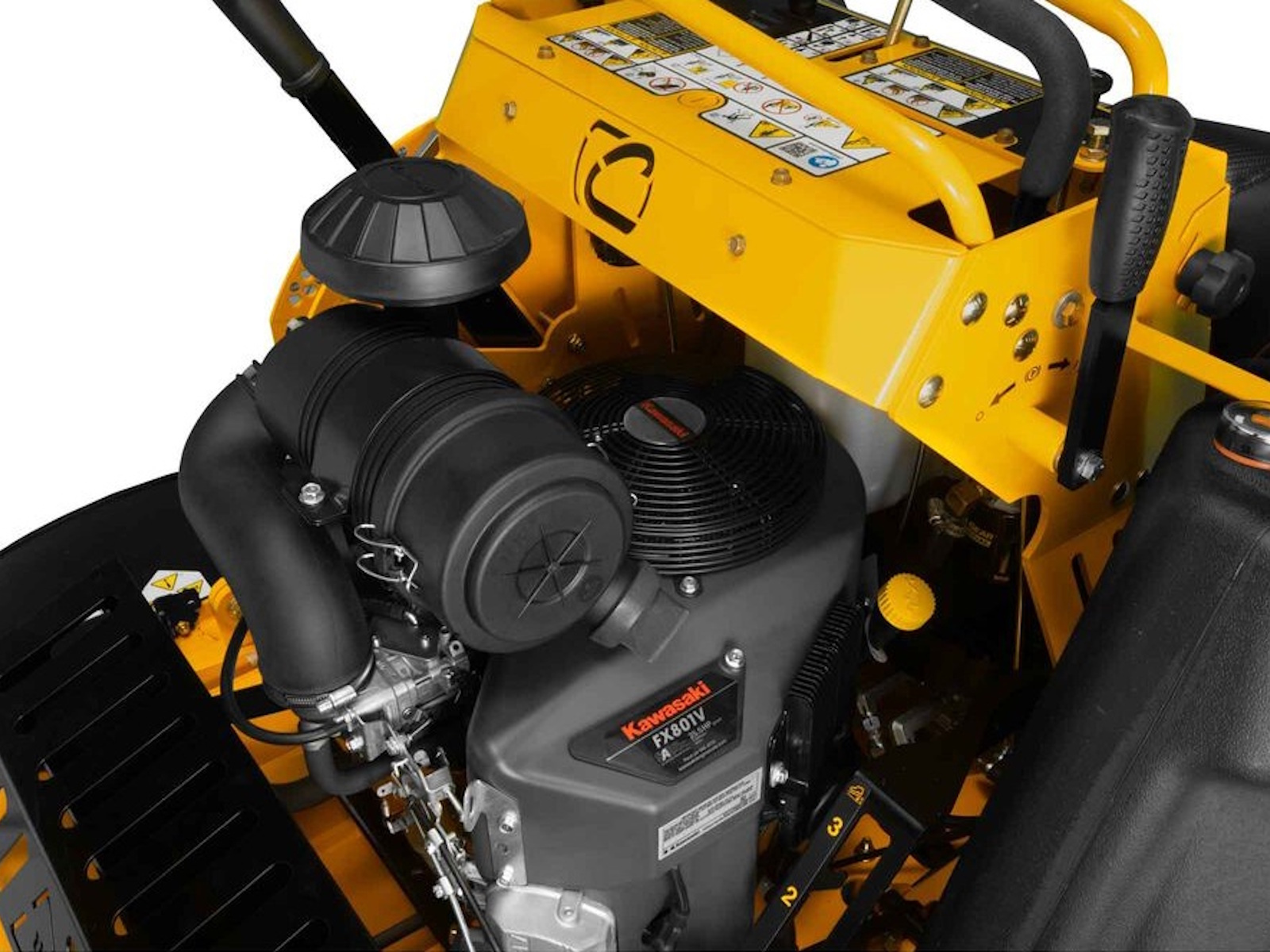

• Commercial-grade 25.5 hp Kawasaki® FX801V (852cc) engine
• A fully fabricated 54-inch 10-gauge steel commercial deck shell with top bottom and side reinforcements plus standard 24" tires give you more ground clearance to easily hop on curbs.
• A large, fully adjustable suspension platform allows you to adjust tension and glide comfortably through tough terrains.
• High-performance commercial Hydro-Gear® PK 12cc pumps & Parker® TL 240cc wheel motors deliver quick response to the drive wheels and smooth control for cutting speeds up to 10 mph.

Features May Include:

Strength Without Compromise

• A fully fabricated 10-gauge deck shell stands up to tough jobs with top and bottom reinforcements.

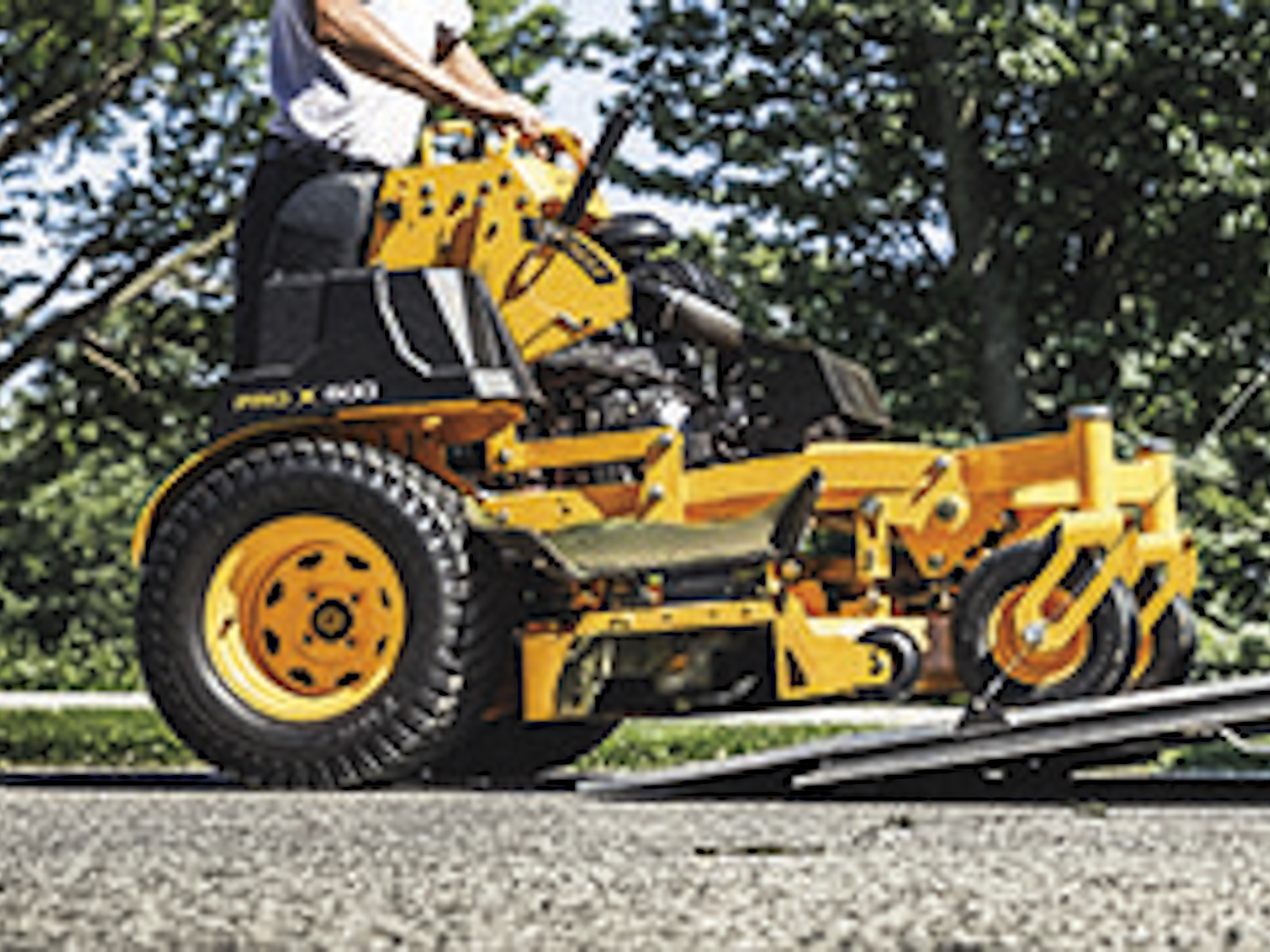

Hop On Up

• Easily hop on curves and get to work quickly with 24-inch tires that come standard, giving you more ground clearance.

Work Smarter, Not Harder

• Reduce turfing thanks to a bigger deck that offers more traction with an easy step-on/step-off design that allows for quick debris pickup.

Strong Warranty

• Backed by a 3-year, no-hour-limit commercial warranty and/or 5-year,1,200-hour limited warranty and a nationwide network of Cub Cadet dealers.

Strength Without Compromise

• A fully fabricated 10-gauge deck shell stands up to tough jobs with top and bottom reinforcements.

Options:

Engine

• Engine Brand: Kawasaki®

• Engine Model: FX Series

• Engine Model Number: 801V

• Engine Displacement: 852cc

• Engine Output: 25.5HP

• Starter Type: Electronic

• Fuel Tank Capacity: 7.5 gal. US (28.4 L)

• Cylinders: Twin

• Engine Start: Ignition Key

• Engine Oil Capacity: 2.0 qt. US (1.89 L)

• Lubrication: Fully pressurized

• Charging System: 15 amp regulated

• Fuel Gauge: No

• Choke: Separate Choke

• Air Filter: High Density

• Oil Filter: Yes

• Fuel Delivery: Carburetor

Drive System

• Transmission: 12cc Hydro-Gear® pumps / 240cc Parker® wheel motors

• Forward Speed: 10 mph / 16 km/h

• Reverse Speed: 5 mph / 8 km/h

Cutting Deck

• Deck Cutting Width: 54 in

• Deck Material: 10-gauge steel

• Deck Engagement (PTO): Electronic with quick reset

• Deck Construction: 10 ga shell w/ 7 ga top & bottom reinforcement

• Spindle Construction: HD 8" aluminum housing, 35mm double-row sealed ball bearings, 1-3/8" through-shaft and maintenance-free design

• Blade(s): Three 19" long high-lift Marbain blades, 1-1/2" of blade overlap

• Deck Lift: Hand lever adjusting spring lift, pin selector for height

• Cutting Height Range: 1.5”- 4.5”

• Anti-Scalping: 2 front deck gauge wheels

Chassis

• Frame: 2" x 3" full-length tube frame

• Front Axle: 2" x 3" tube construction

• Front Caster Mount: 3/8" thick steel

• Suspension: Hand lever adjust, 3-position spring suspension foot platform

Controls

• Cruise Control: NA

• Brakes: Hand lever control / external band

• Steering Control: Lap Bar Steering Wheel Control

Wheels

• Rear Tires: 24"x12"-12"

• Front Tires: 13x5-6" Reliance Run Flat carlisle

Dimensions

• Weight (approx.): 1080 lbs

Additional Specifications

• Hour Meter: Crew Boss

• Model Number: 53FI8CSAA50
