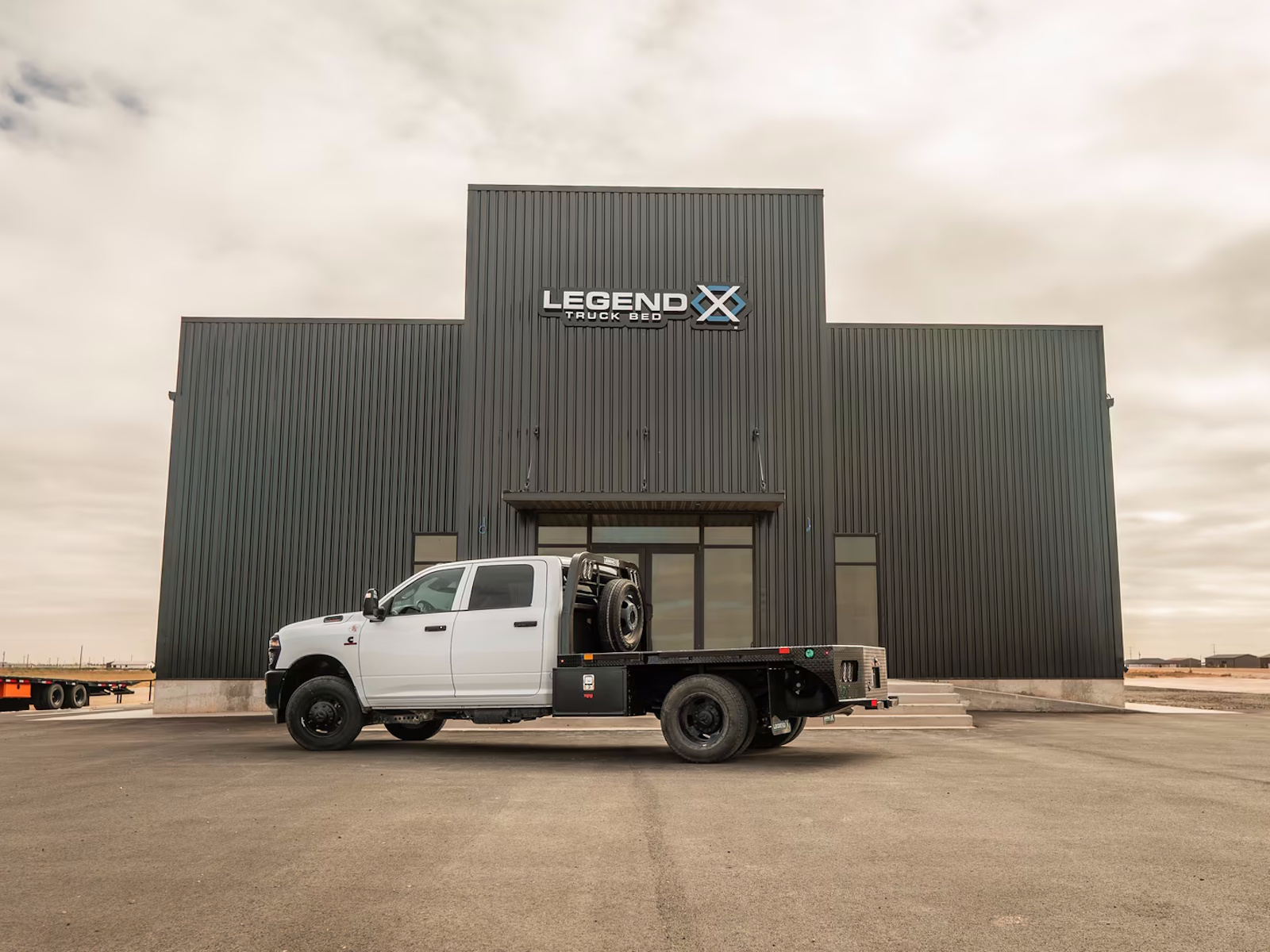

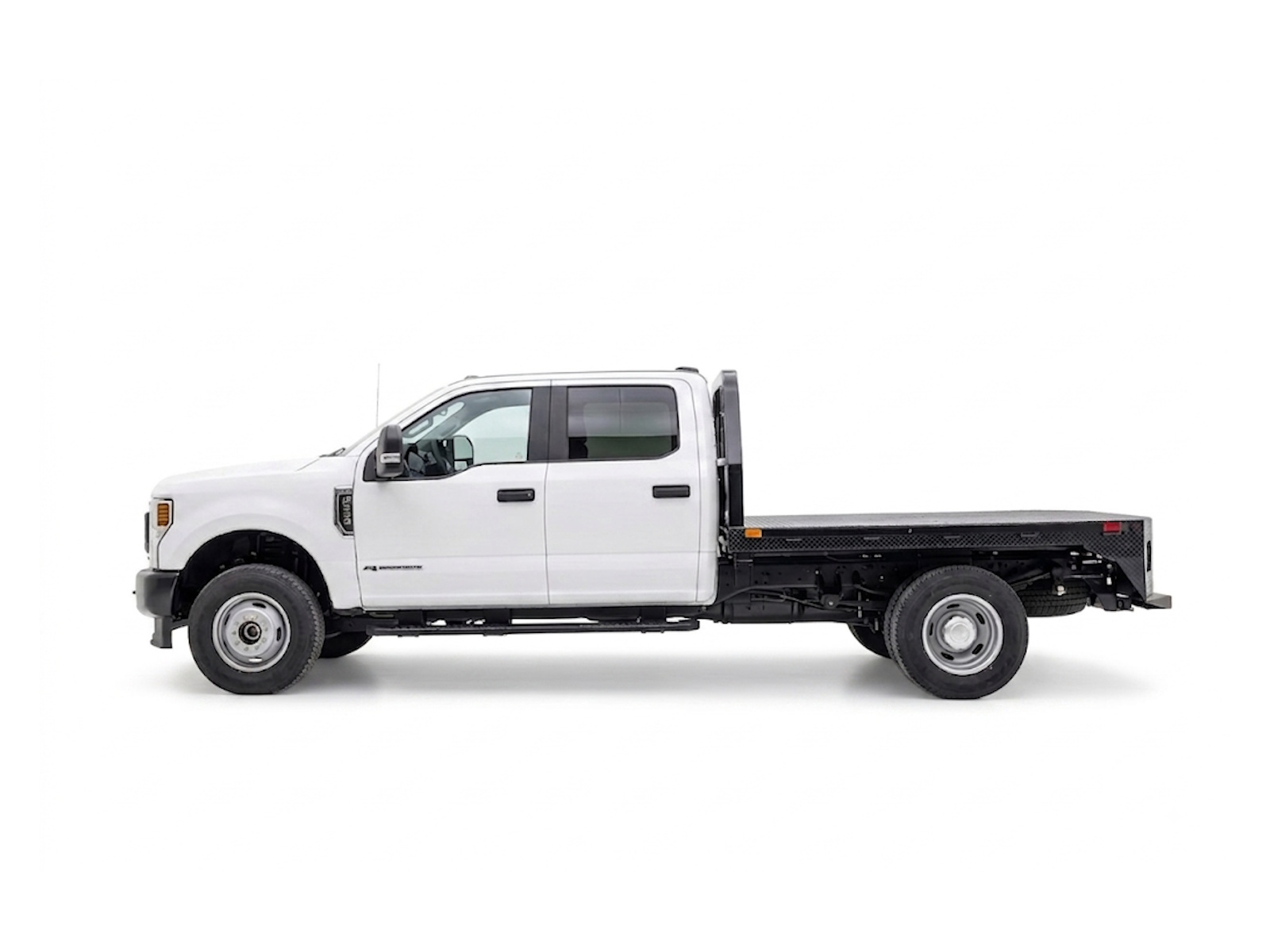

2027 Legend X Spartan 8 ft 6 in

Non-Skirted Flatbed

Spartan

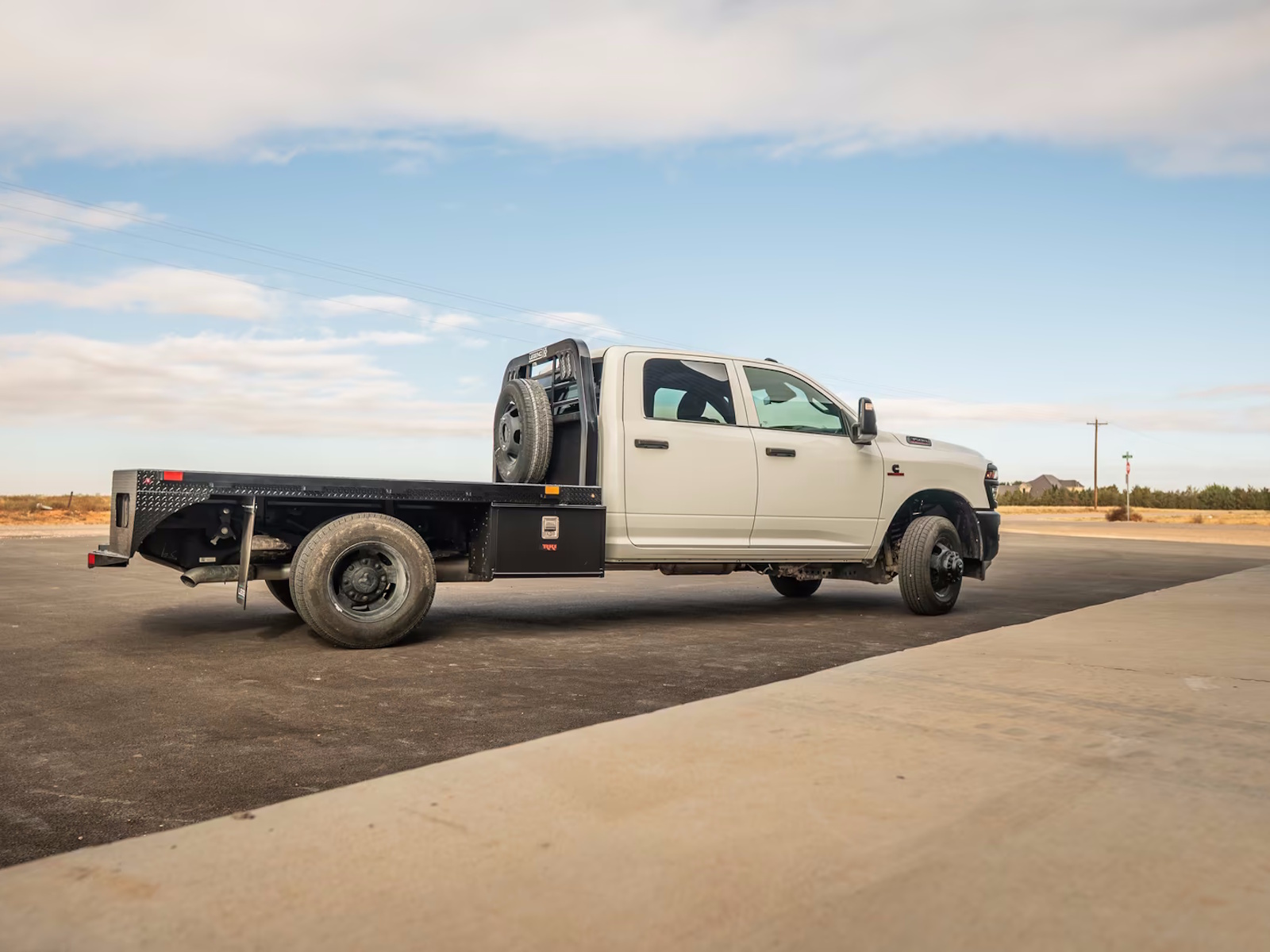

A non-skirted flatbed built to be configured.

Across 7 ft 0 in, 8 ft 6 in, 9 ft 4 in, and 11 ft 4 in lengths, Spartan leaves the body unskirted so an upfitter can plan storage or mounted equipment around the chassis.

Why Spartan

Operators who choose their own equipment layout.

Start with the truck, the work, and the equipment list. Then decide with an upfitter where storage and mounted equipment belong.

Features May Include:

Put equipment where it earns its space.

• Plan underbody boxes, top-mounted boxes, a generator, welder, or feeder—or keep the body simpler for direct side loading and tie-down access.

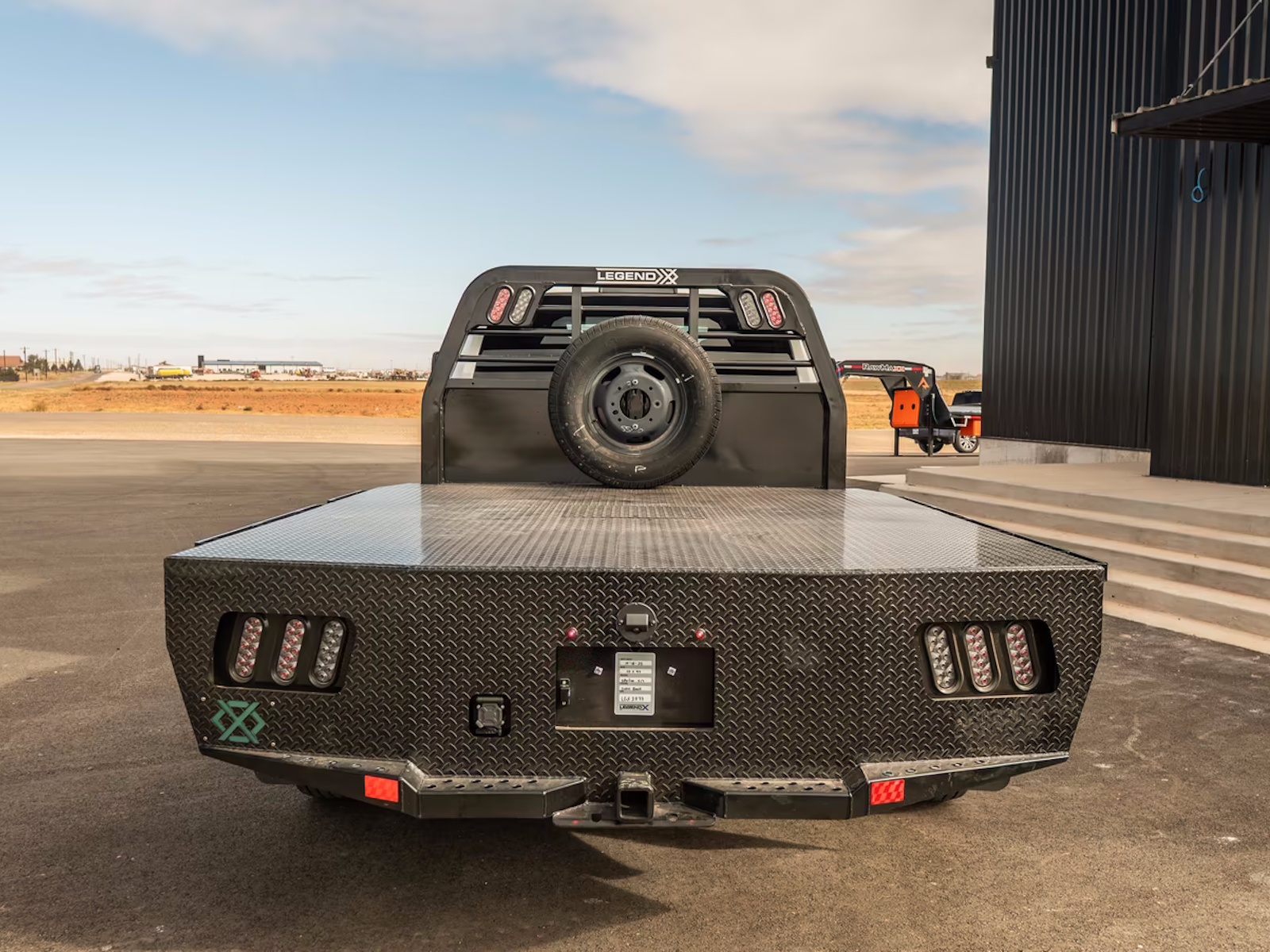

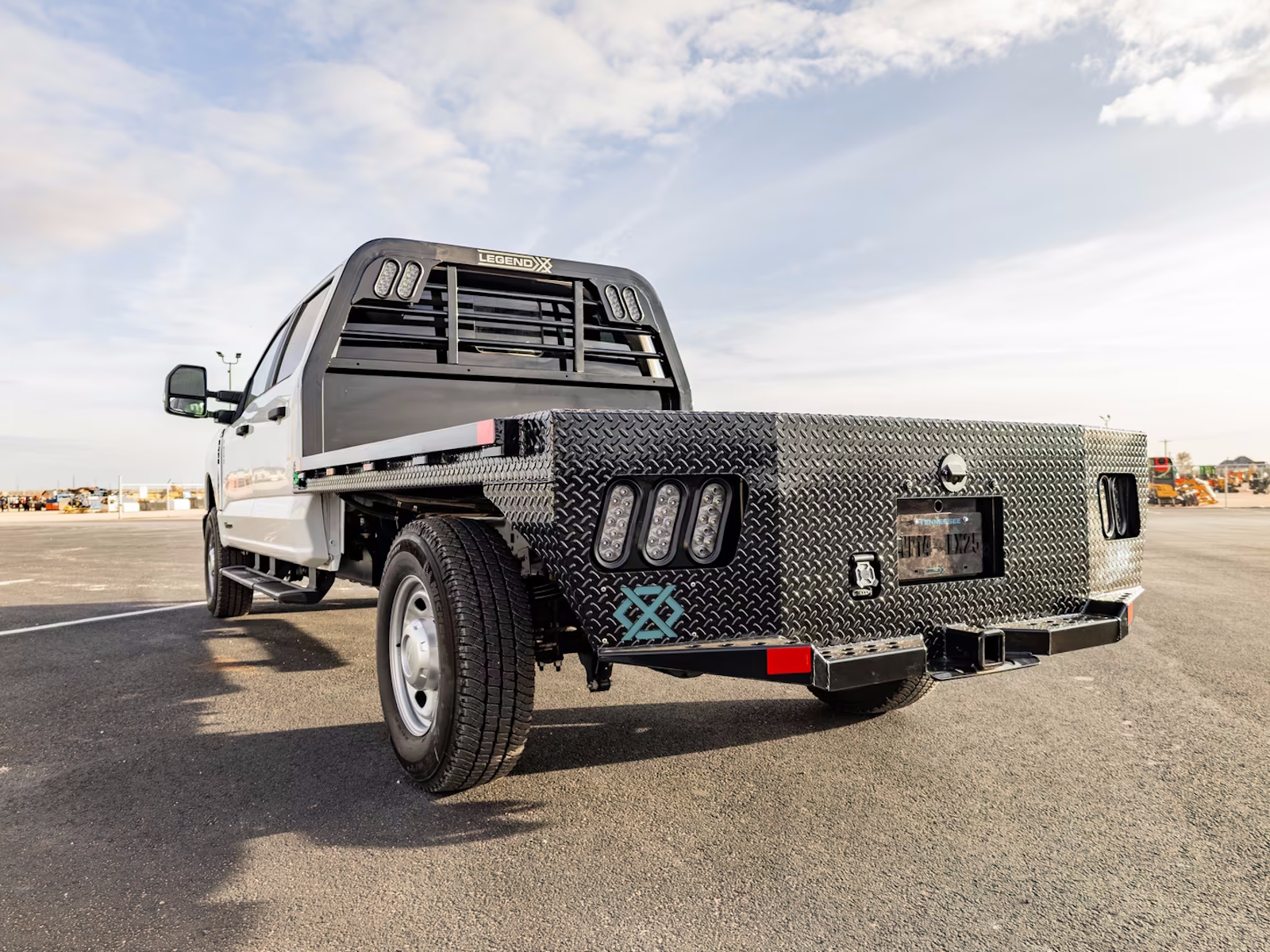

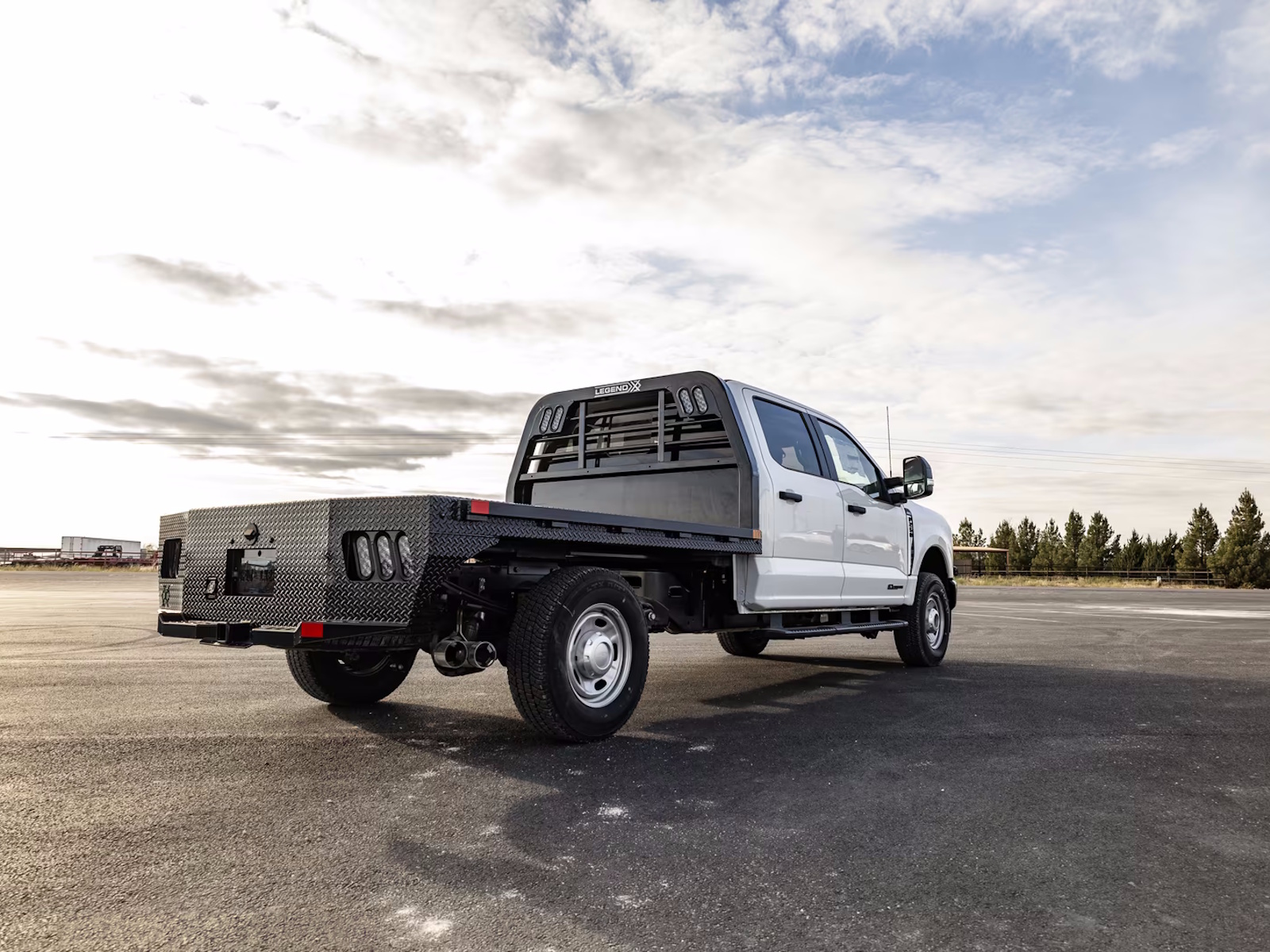

Diamond-Plated Rear Skirt

• The diamond-plated rear skirt incorporates a sturdy step for dependable bed access.

Side Rails with Stake Pockets

• Side rails and stake pockets provide multiple tie-down points for securing different kinds of cargo.

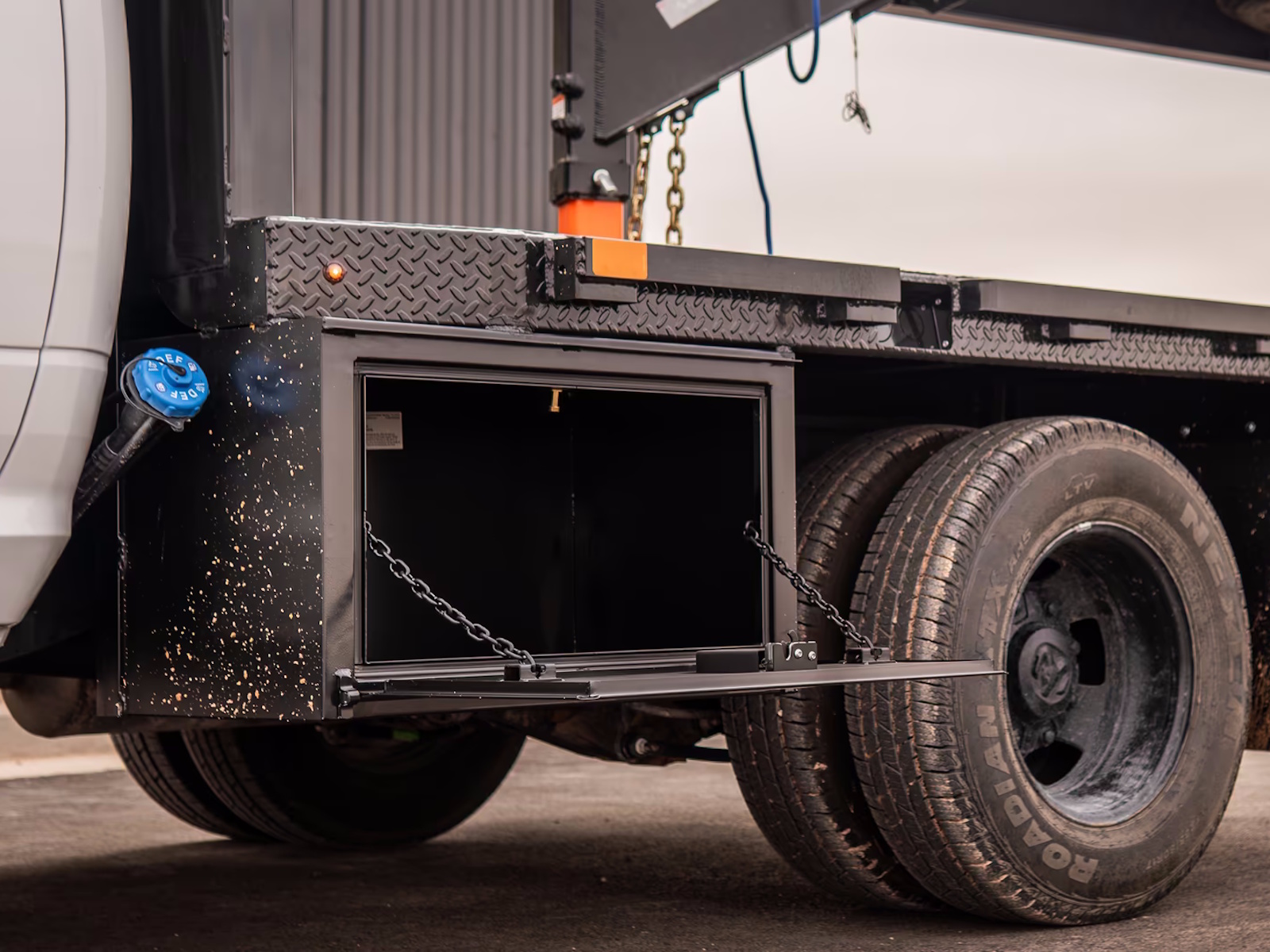

Configurable Equipment Space

• The unskirted sides leave room for an upfitter to plan compatible underbody boxes, top boxes, a generator, welder, feeder, or a simpler body without added equipment.

Structure below the surface

Keep reinforcement under the working surface.

The frame and crossmembers reinforce the working surface from below, leaving the sides available for an upfitter-planned equipment layout.

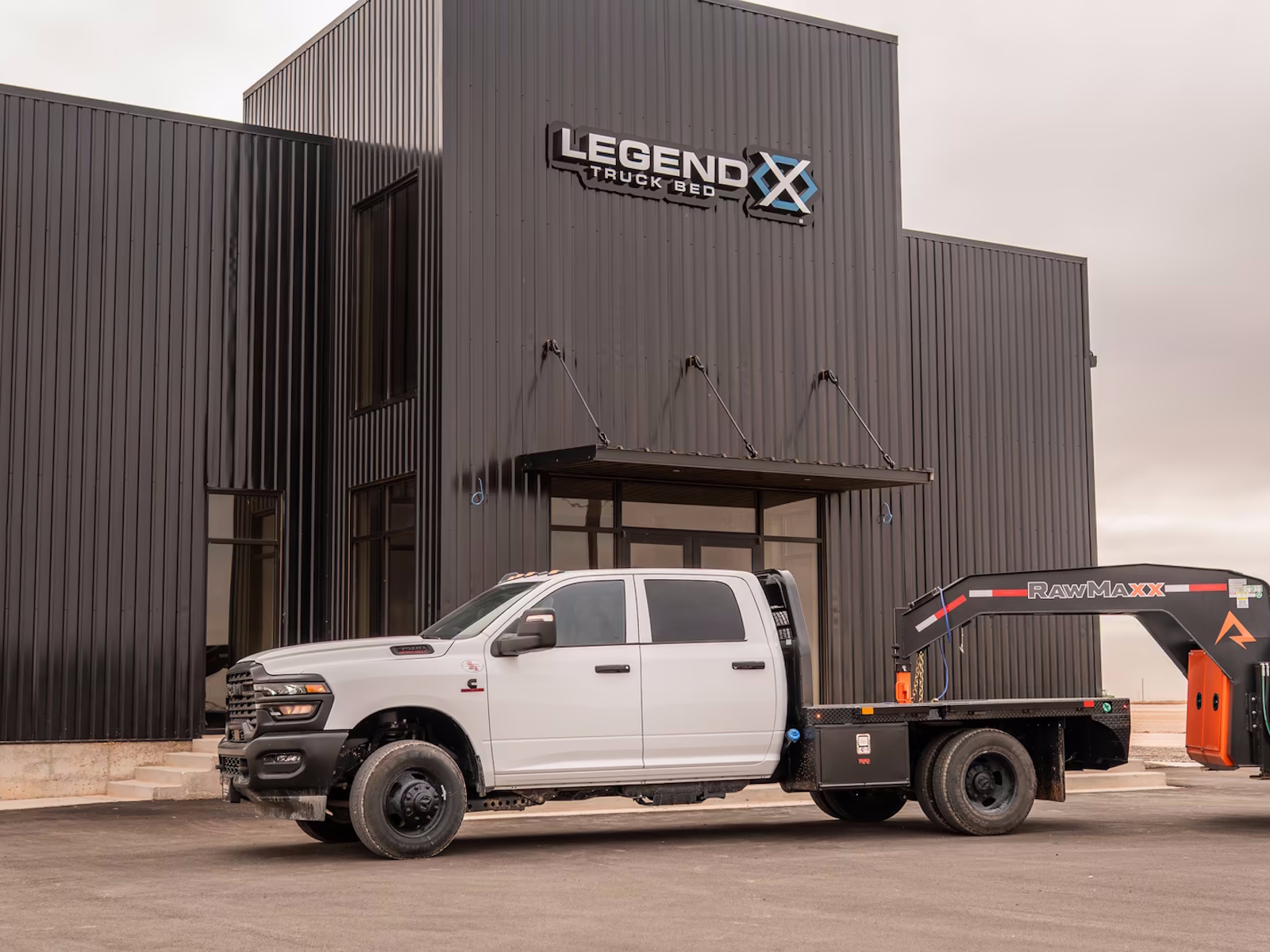

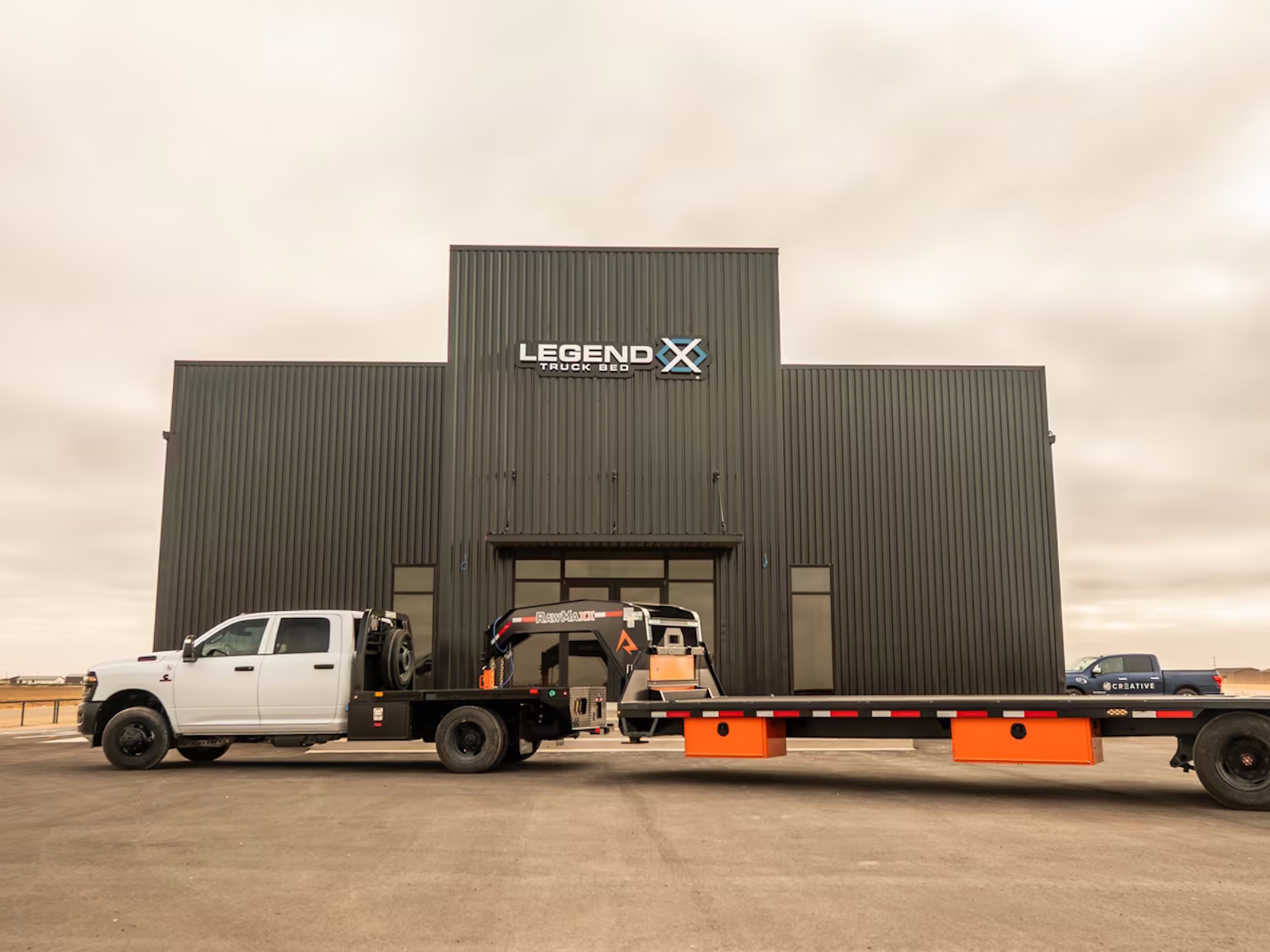

See the Spartan at Work

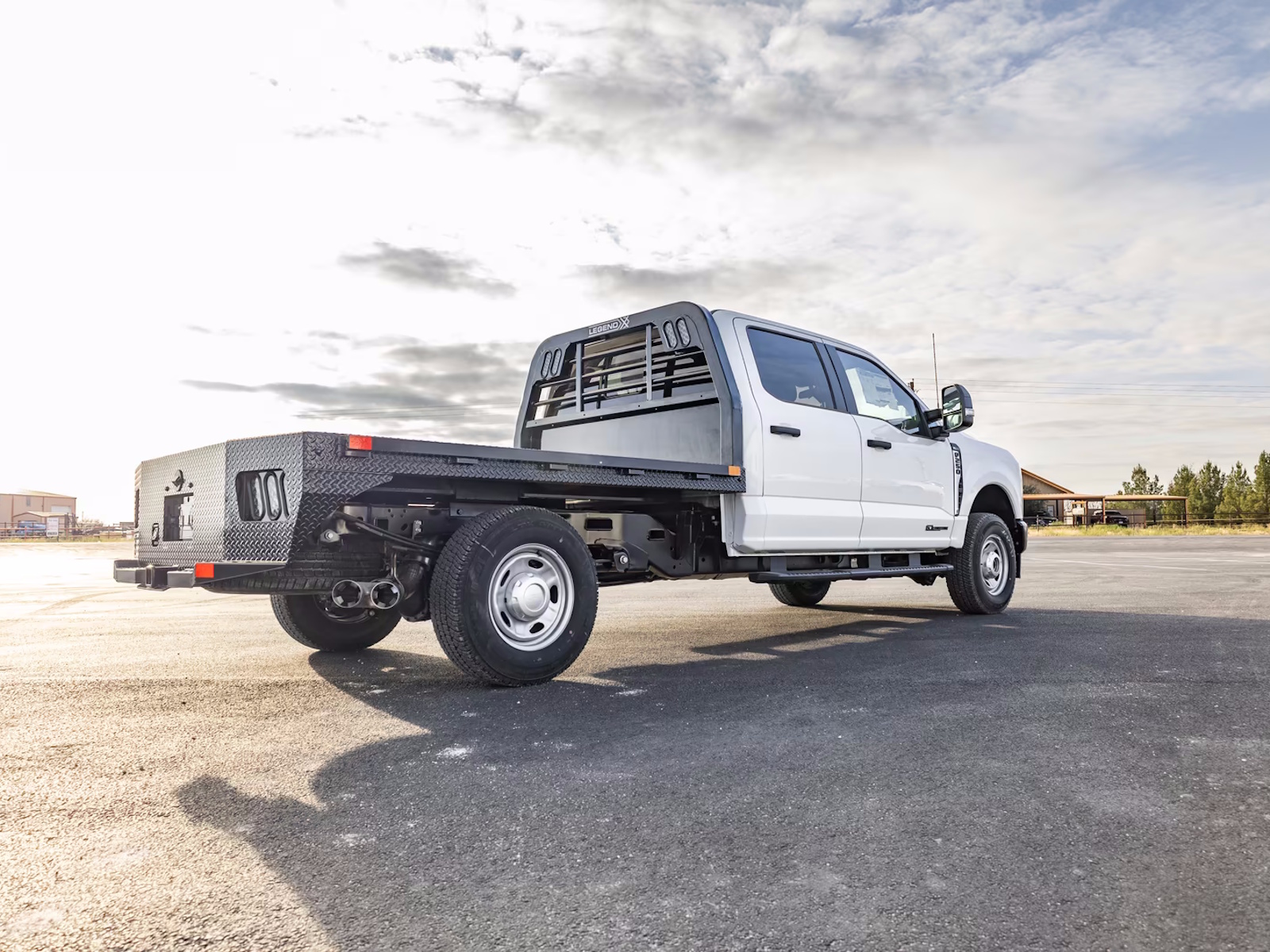

Take a full walk around the non-skirted Spartan and see the cargo surface, towing structure, side rails, and rear step.

Spartan specifications.

Your dealer or upfitter confirms body length, options, fitment, and installation for the final truck.

Spartan details

Structural Side Rails

• Side rails measuring 1.5 in wide by 3 in high help keep cargo secure while providing additional tie-down points.

3 1/2 in Integrated Tube Headache Rack

• The integrated 3 1/2 in tube design adds durable support and protection.

Durable Powder-Coated Finish

• A high-quality powder coating covers the bed for a durable, long-lasting finish.

4 in Structural Steel Channel Frame Rails

• Solid 4 in structural steel channel frame rails provide strength, durability, and internal rust prevention without roll-formed runners.

1/8 in Steel Treadplate Deck

• A durable 1/8 in steel treadplate deck is built for heavy-duty work conditions.

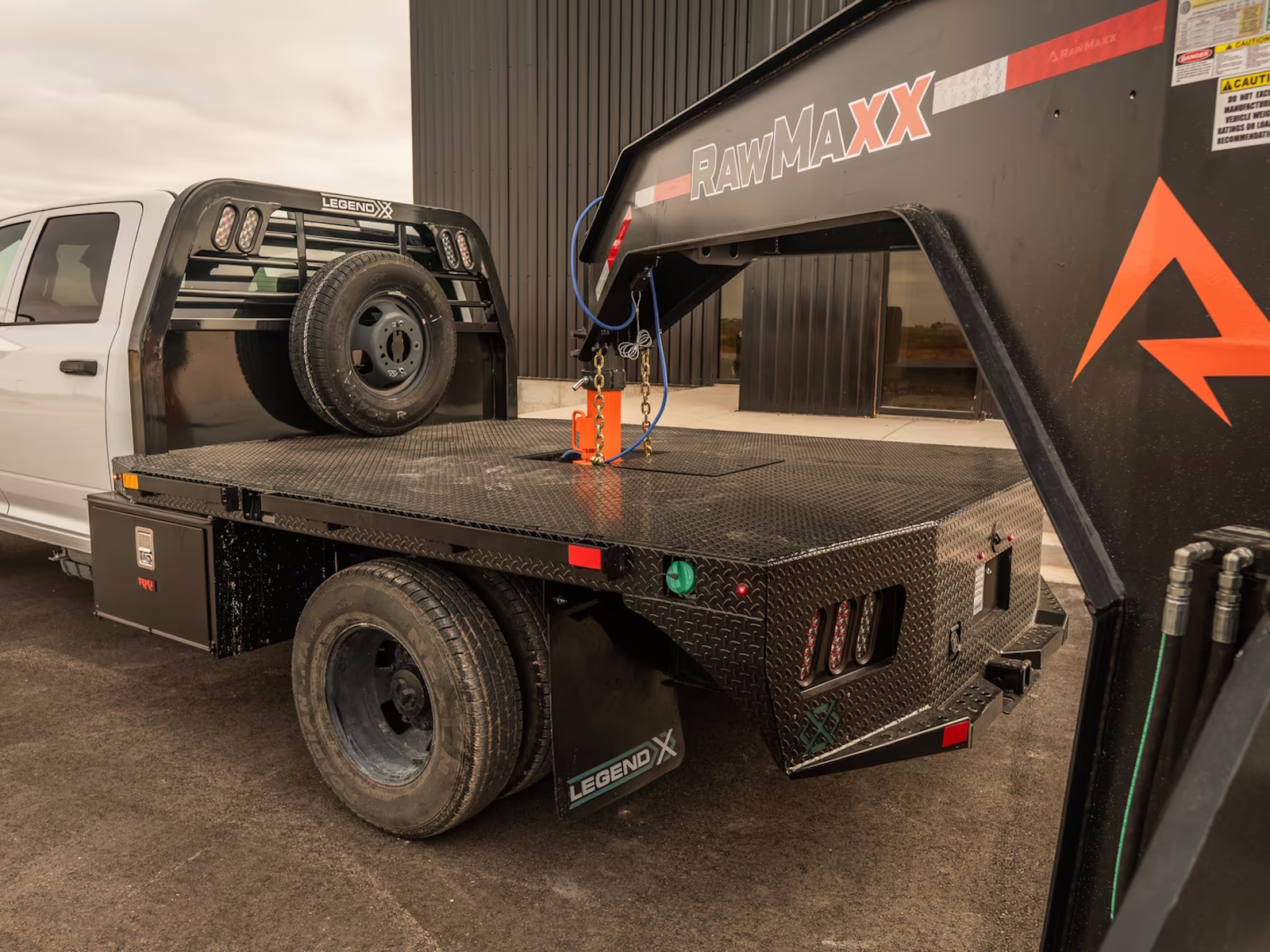

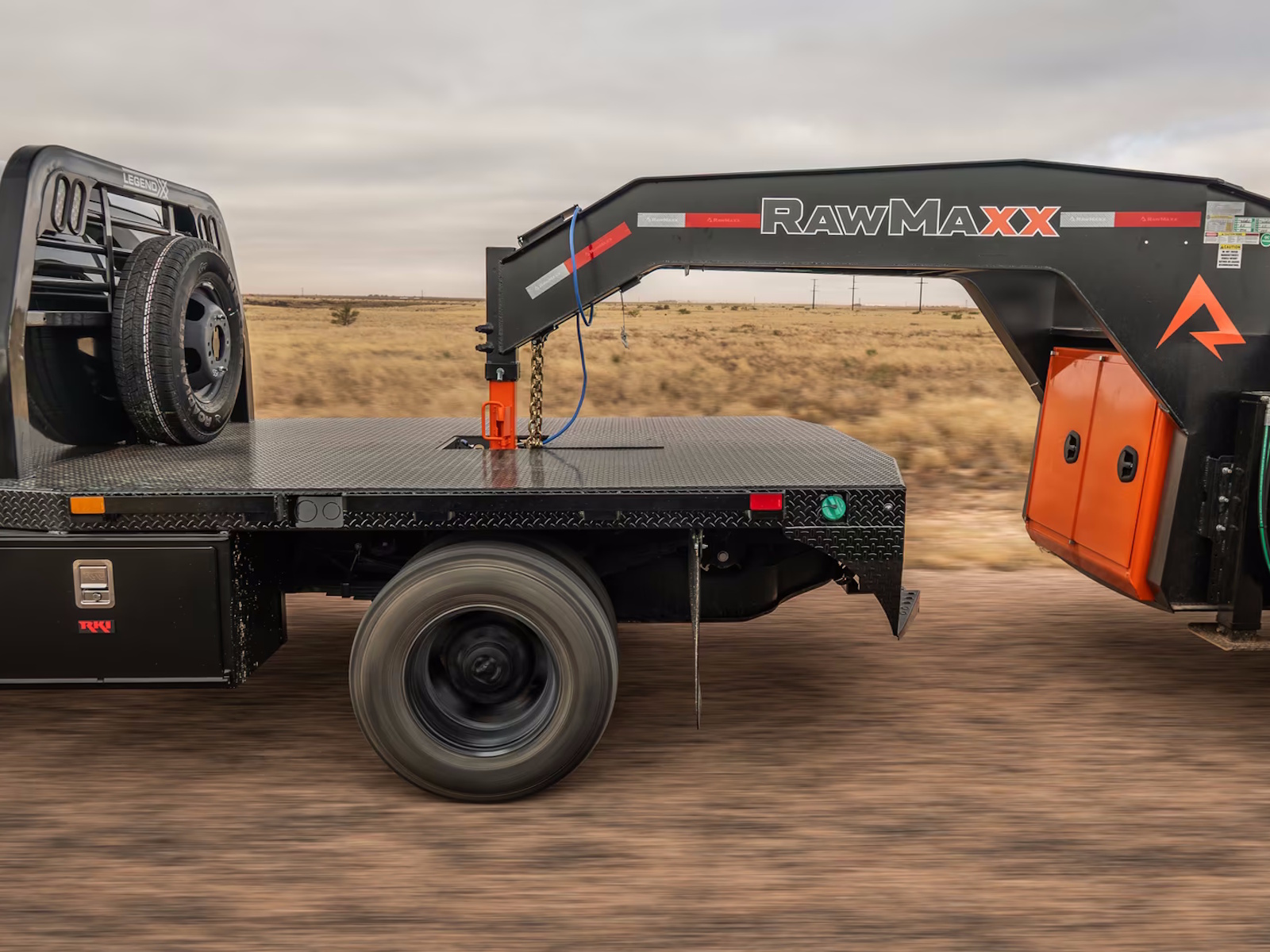

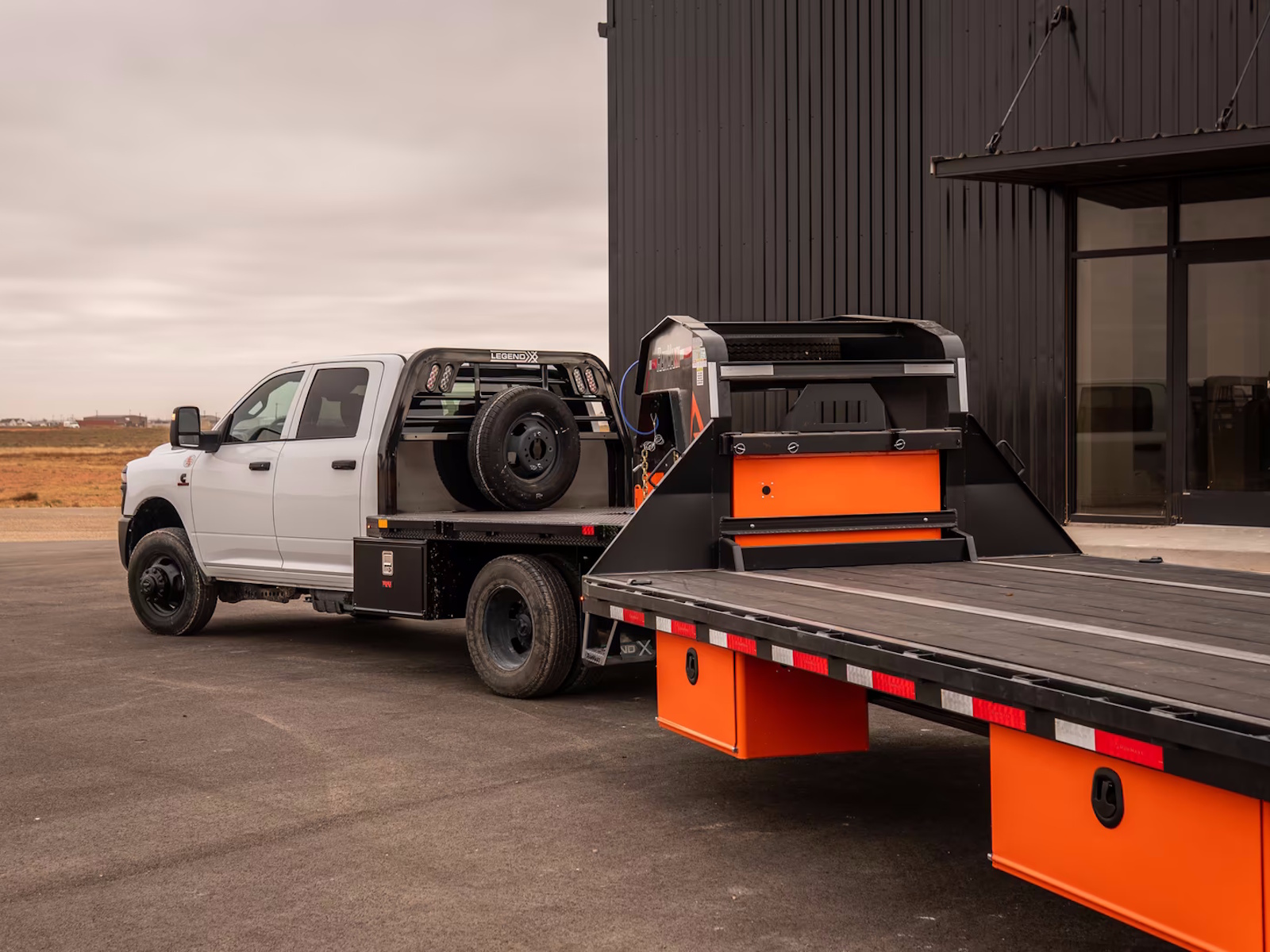

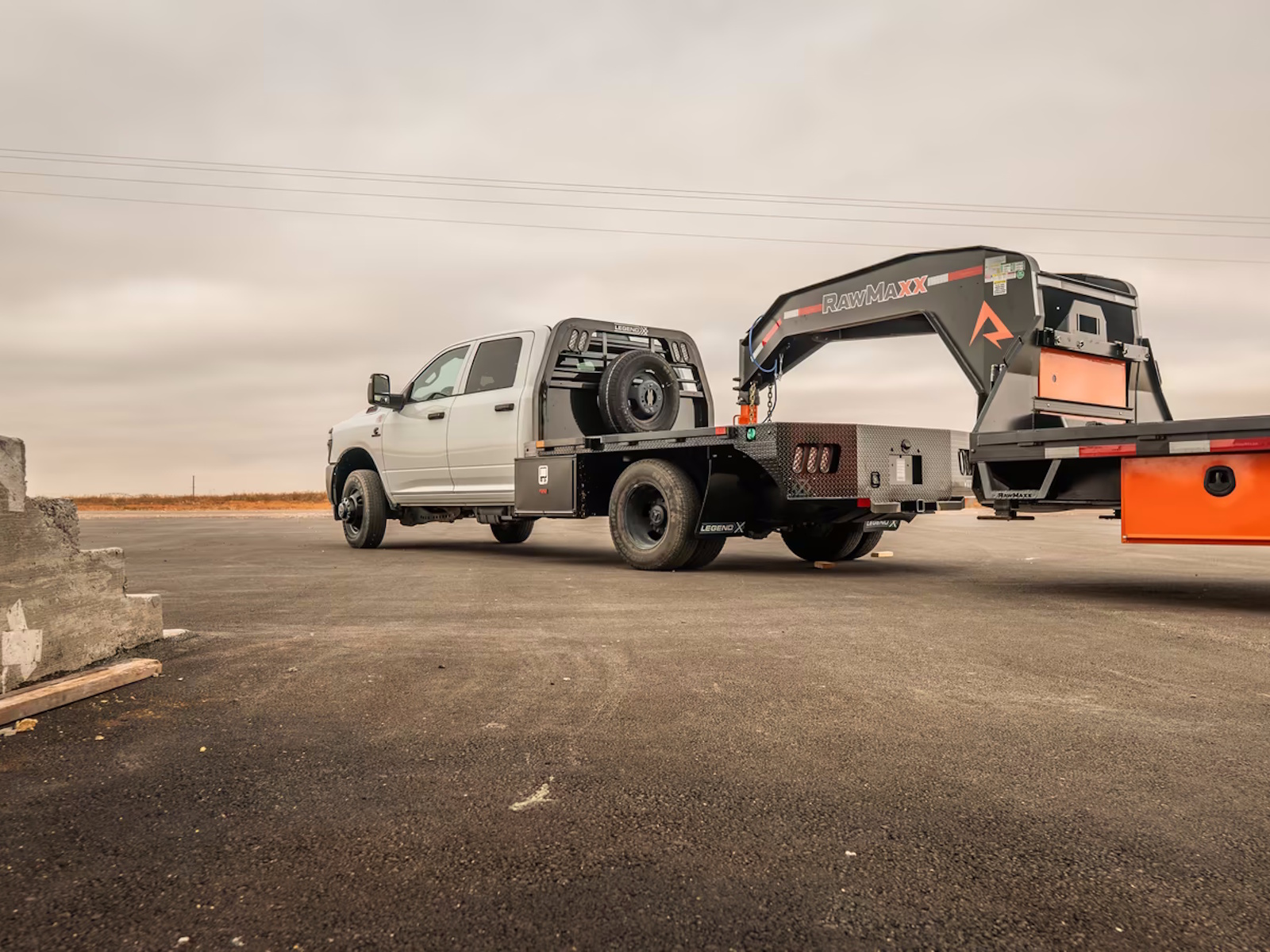

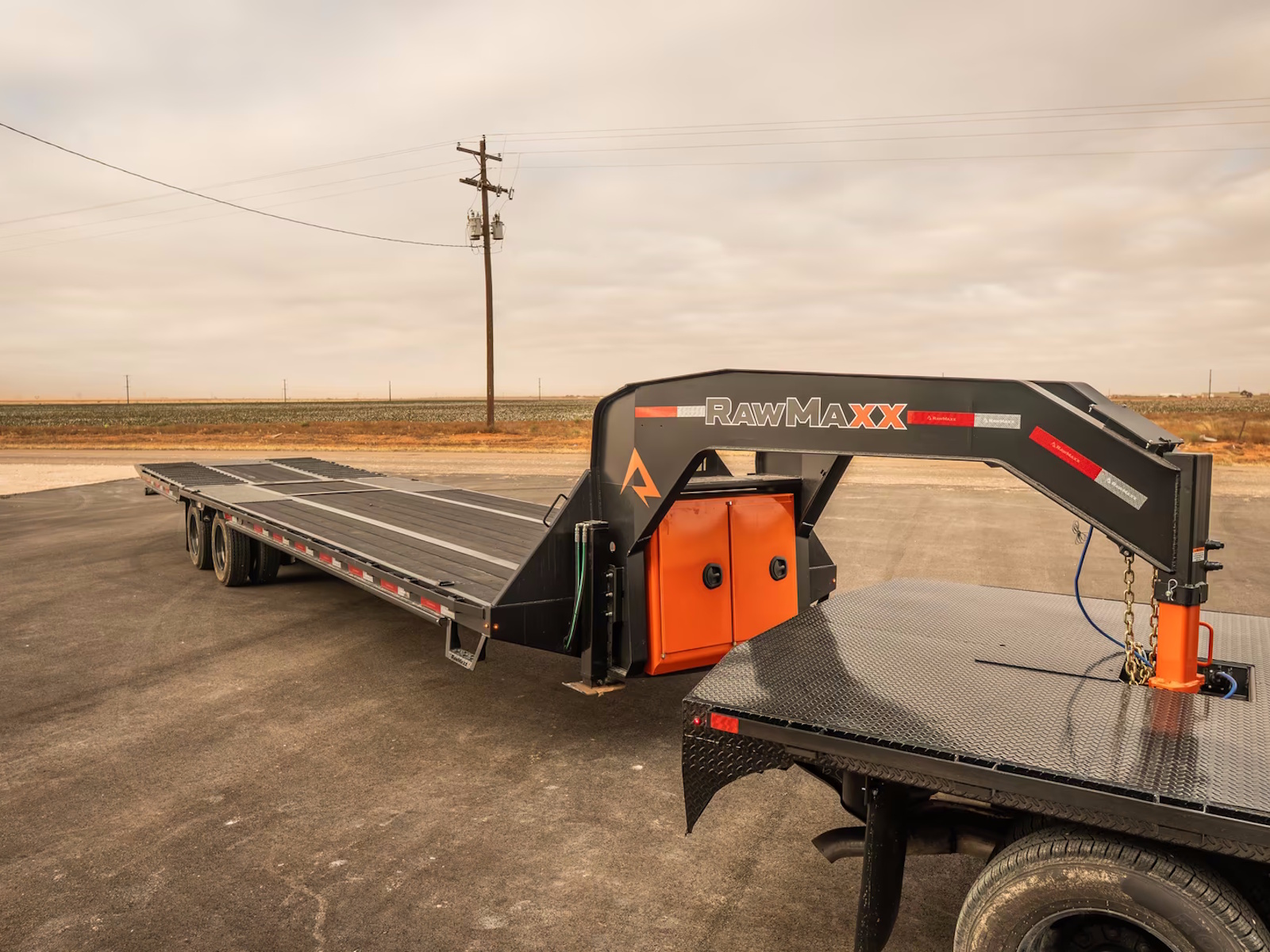

30,000 lb. Rated Gooseneck Hitch

• An independently tested gooseneck hitch provides dependable hauling capability and includes a 7-way electrical connection.

Modular Sealed Wiring Harness

• The sealed wiring harness is built to resist corrosion, wear, and disconnection in demanding conditions.

24,000 lb. Rated Bumper Pull Hitch

• A standard 2.5 in bumper pull hitch integrates into the frame for dependable towing capacity.

Standard 7-Way Round Rear Plug

• A 7-way round plug on the rear tailboard supports trailer connectivity.
