2027 MaxxD Trailers LHX10230

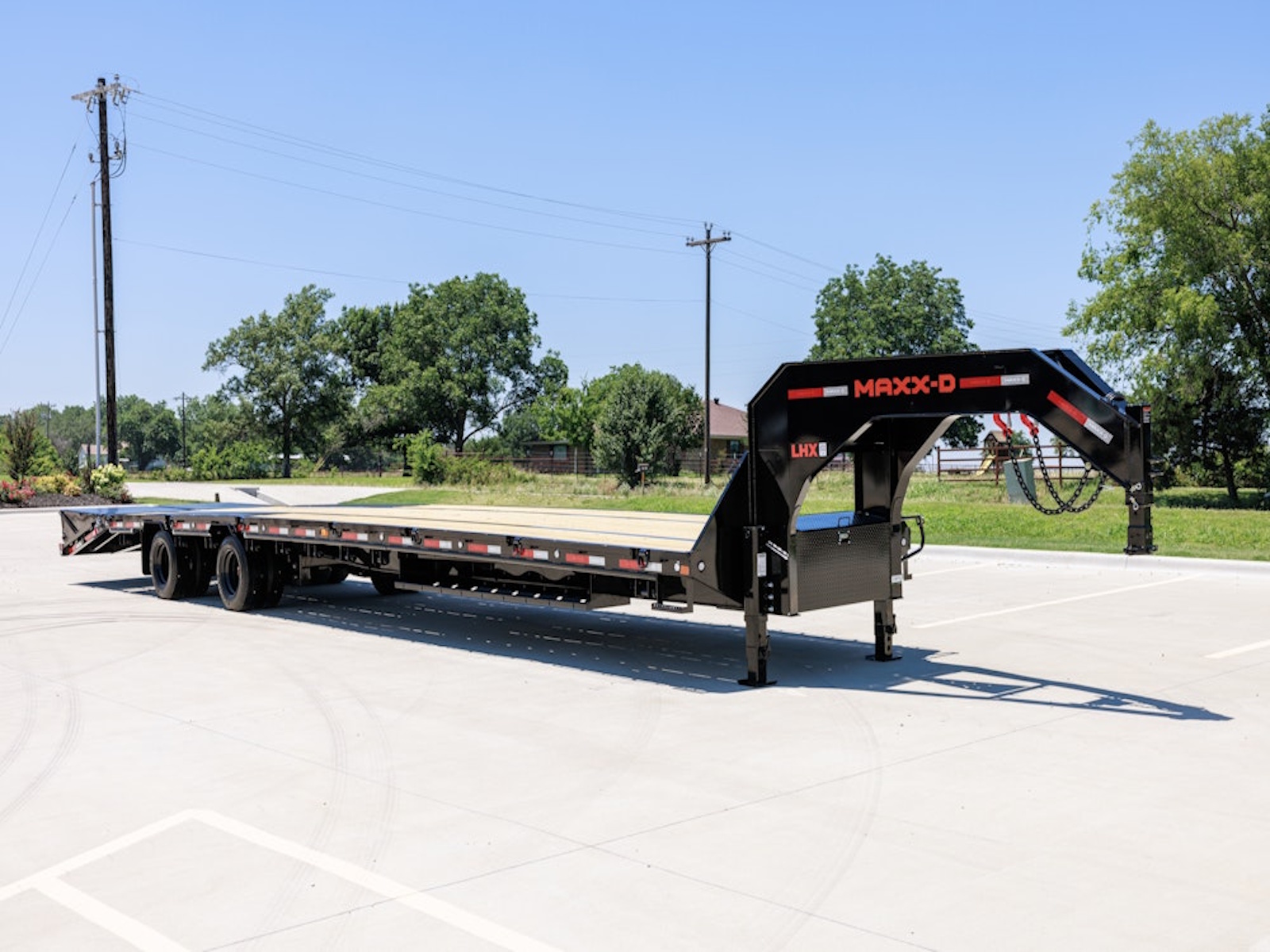

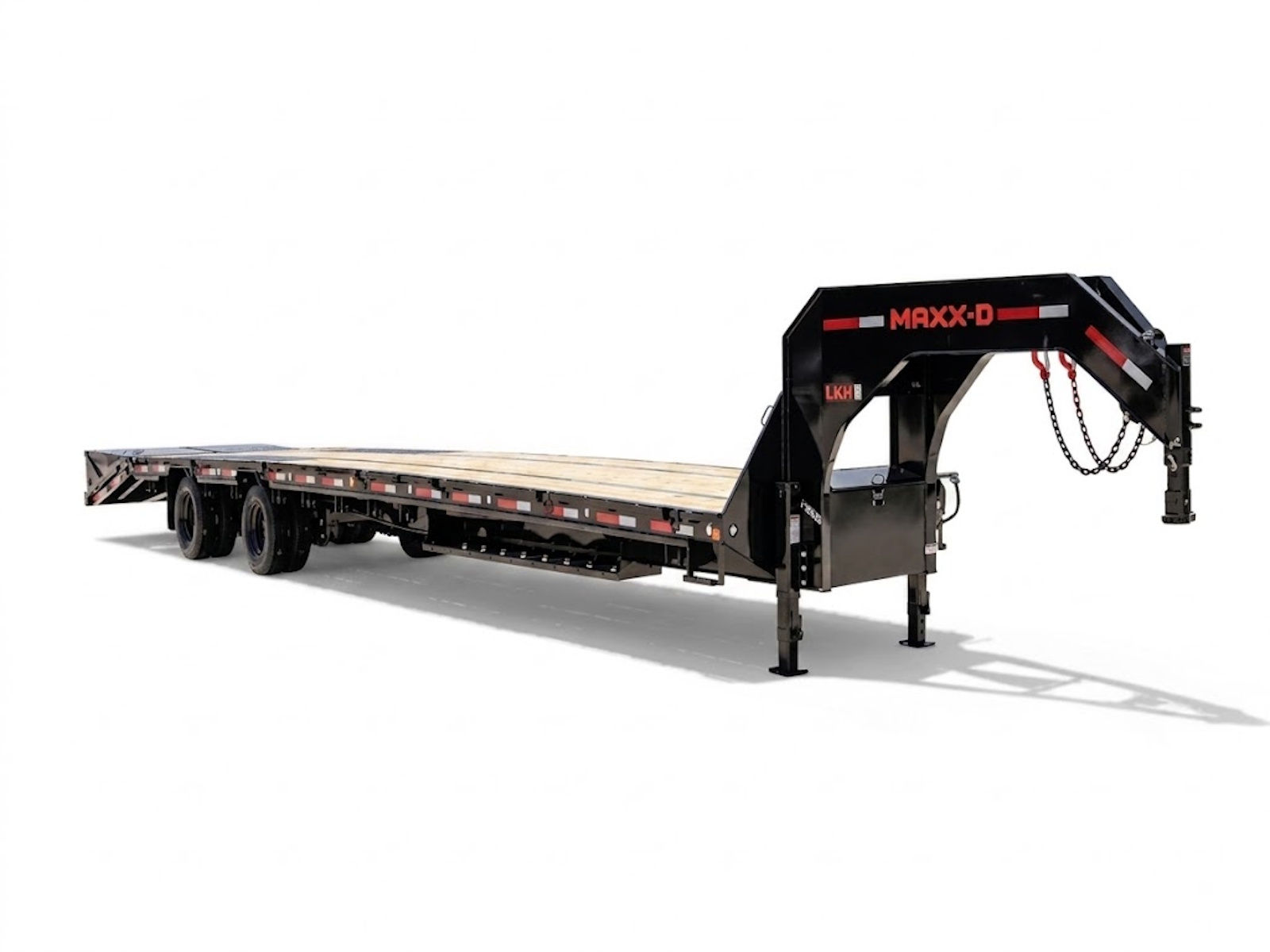

LHX – 40K HEAVY-DUTY ENGINEERED BEAM GOOSENECK FLATBED

Built for maximum strength and hauling capacity, the LHX 40K Gooseneck Flatbed Trailer is designed for hotshot trucking, oil field work, and heavy construction. Its massive engineered-beam frame, 6” channel outer frame, and junior beam crossmembers ensure unmatched durability in the toughest working environments.

The LHX features twin 16K electric-over-hydraulic brake axles, with an option for three 12K axles, allowing for extreme payloads up to 40,000 lbs. GVWR. A treated lumber floor withstands heavy use, while our industry-leading powder coat finish provides long-lasting protection. Available in 30’ to 40’ lengths, the LHX is built for professionals who need serious hauling capability.

At MAXX-D, we build reliable trailers so you can focus on building something great.

Features May Include:

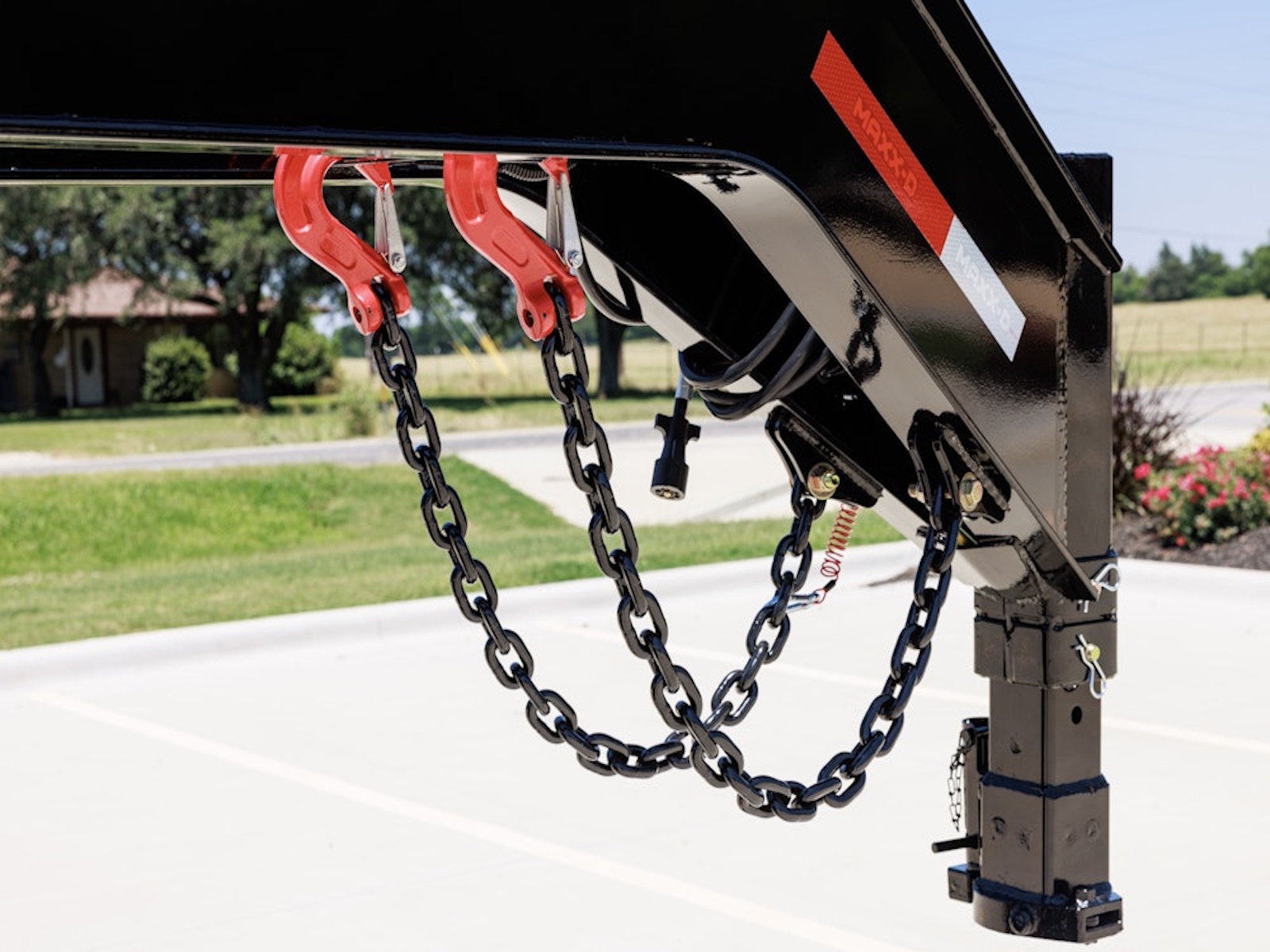

• 2 5/16″ 30K ROUND GN COUPLER

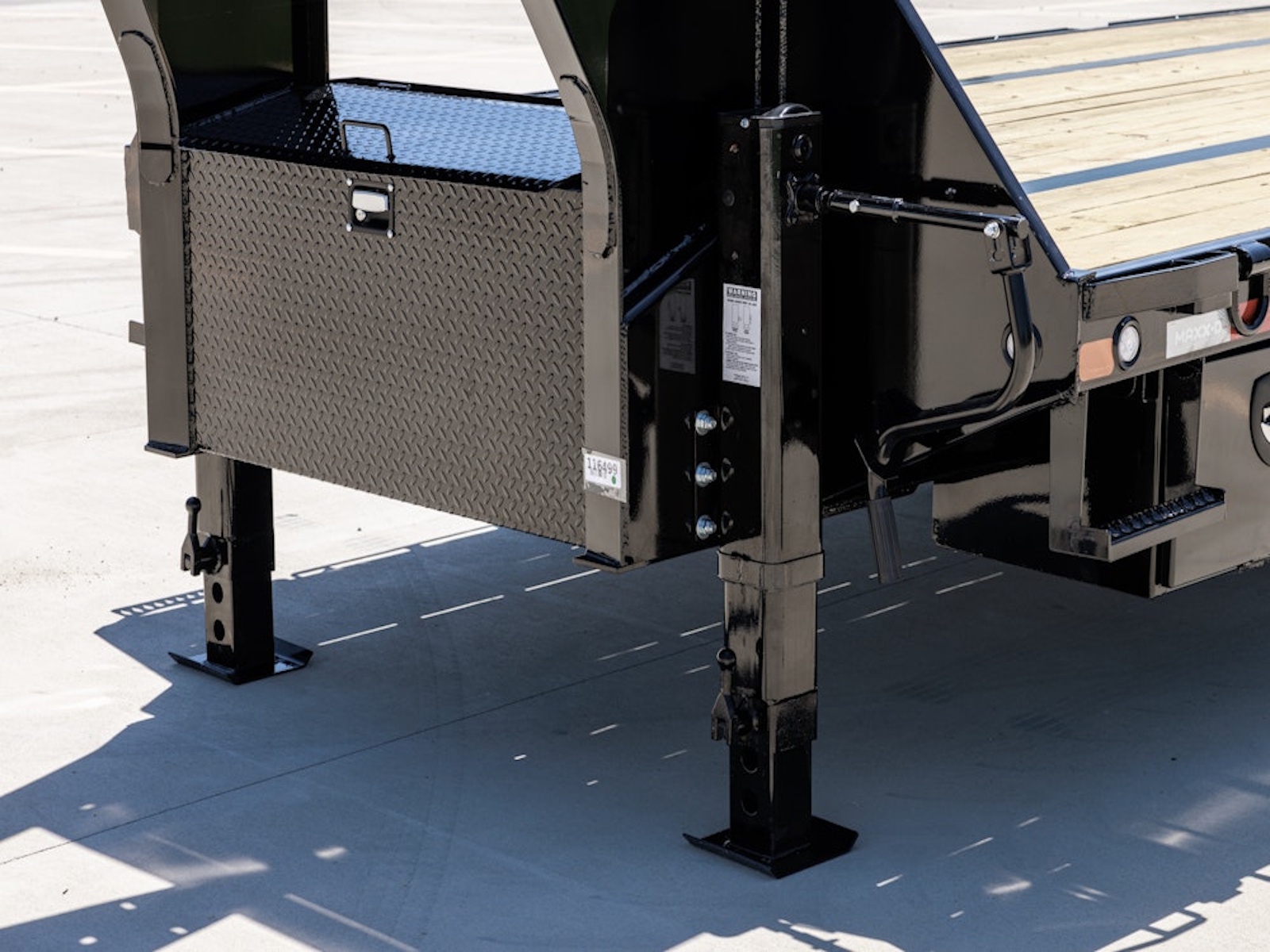

• 2 – 10K DROP-LEG JACKS
• STND HEIGHT I-BEAM NECK
• 12″ X 19LB I-BEAM FRAME WITH TORQUE TUBE
• 3″ CHANNEL ON 16″ CENTERS
• 6″ CHANNEL OUTER FRAME
• NO DOVETAIL/8' SLIDE-IN RAMPS
• 2-10K ELECTRIC BRAKE AXLES
• ADJUSTABLE SUSPENSION 2 AXLES
• ST235/80R16 E RADIAL TIRES ON DUALS
• 2X8 TREATED WOOD FLOOR
• FLUSHMOUNT LED’S/STANDARD WIRING
• WIRELESS REMOTE

Options:

COUPLERS

• 30K ROUND GN COUPLER KING PIN
• 2 5/16″ PLATE MOUNT ADJUSTABLE COUPLER
• 30K ADJUSTABLE PINTLE EYE

JACKS

• 2 – 2-SPEED JOST JACKS
• 2 – HYDRAULIC JACKS

TONGUE/NECKS

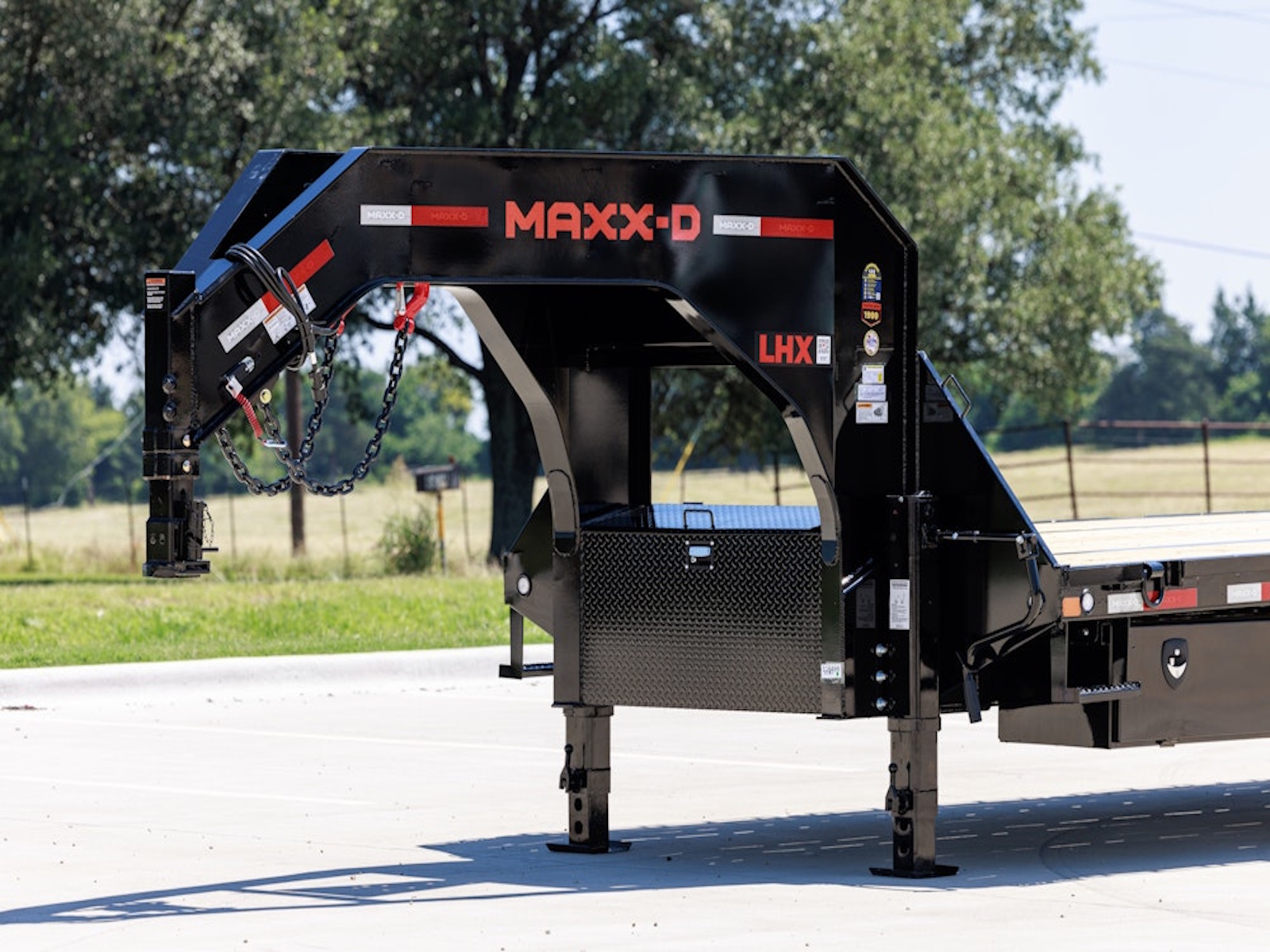

• STND HEIGHT I-BEAM NECK (OPT. W/ RISER BOX OR DECK-OVER)
• 6″ EXTENDED HEIGHT RISERS NECK (OPT. W/RISER BOX OR DECK-OVER)

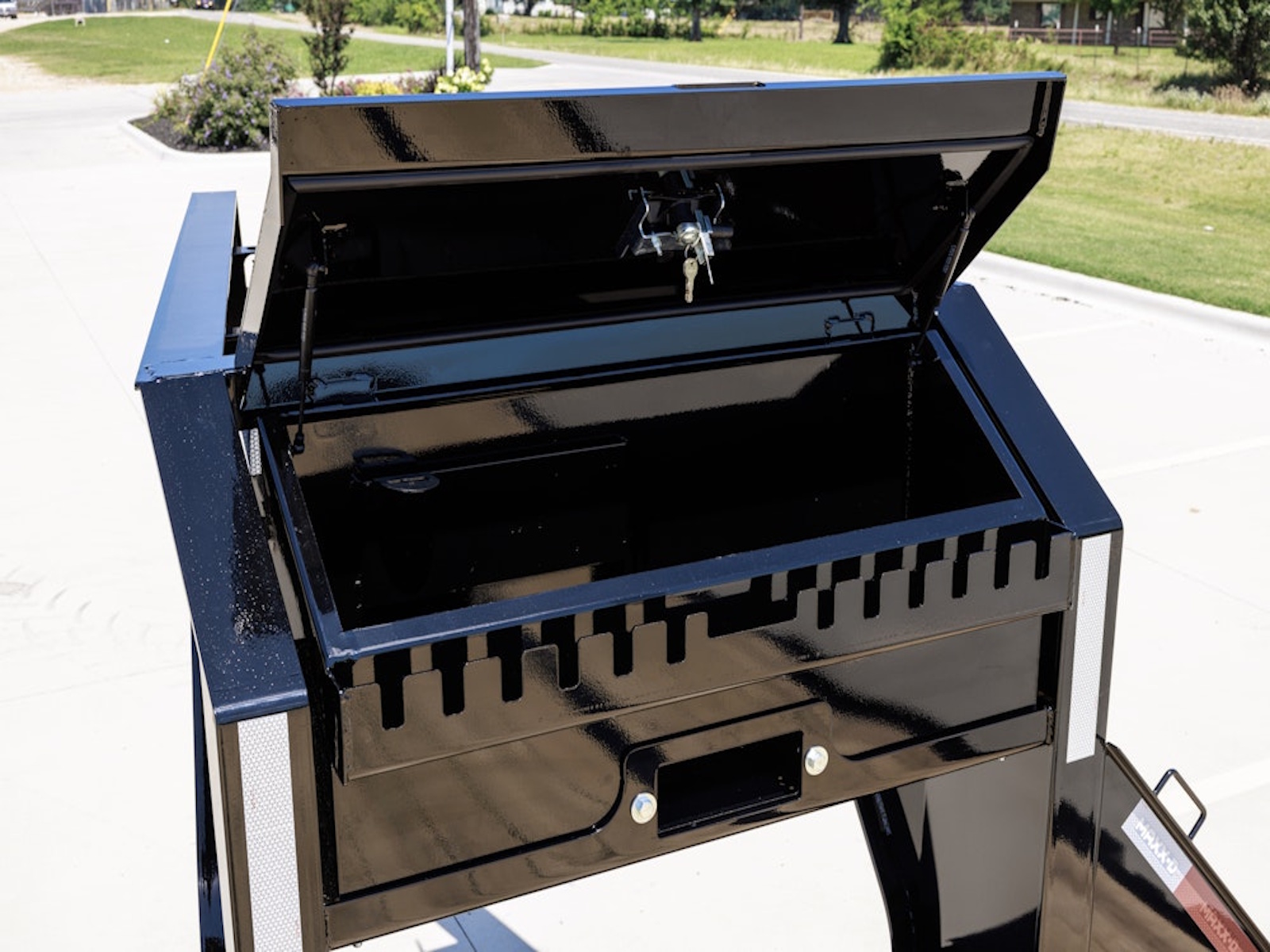

• I-BEAM TONGUE WITH TOOLBOX

FRAMES

• 12″ X 19LB I-BEAM FRAME WITH BRIDGE AND TORQUE TUBE
• 12" X 22LB I-BEAM FRAME WITH TORQUE TUBE (OPT. ADD BRIDGE)

CROSSMEMBERS

• 3″ CHANNEL ON 12″ CENTERS

LIGHTS/WIRING

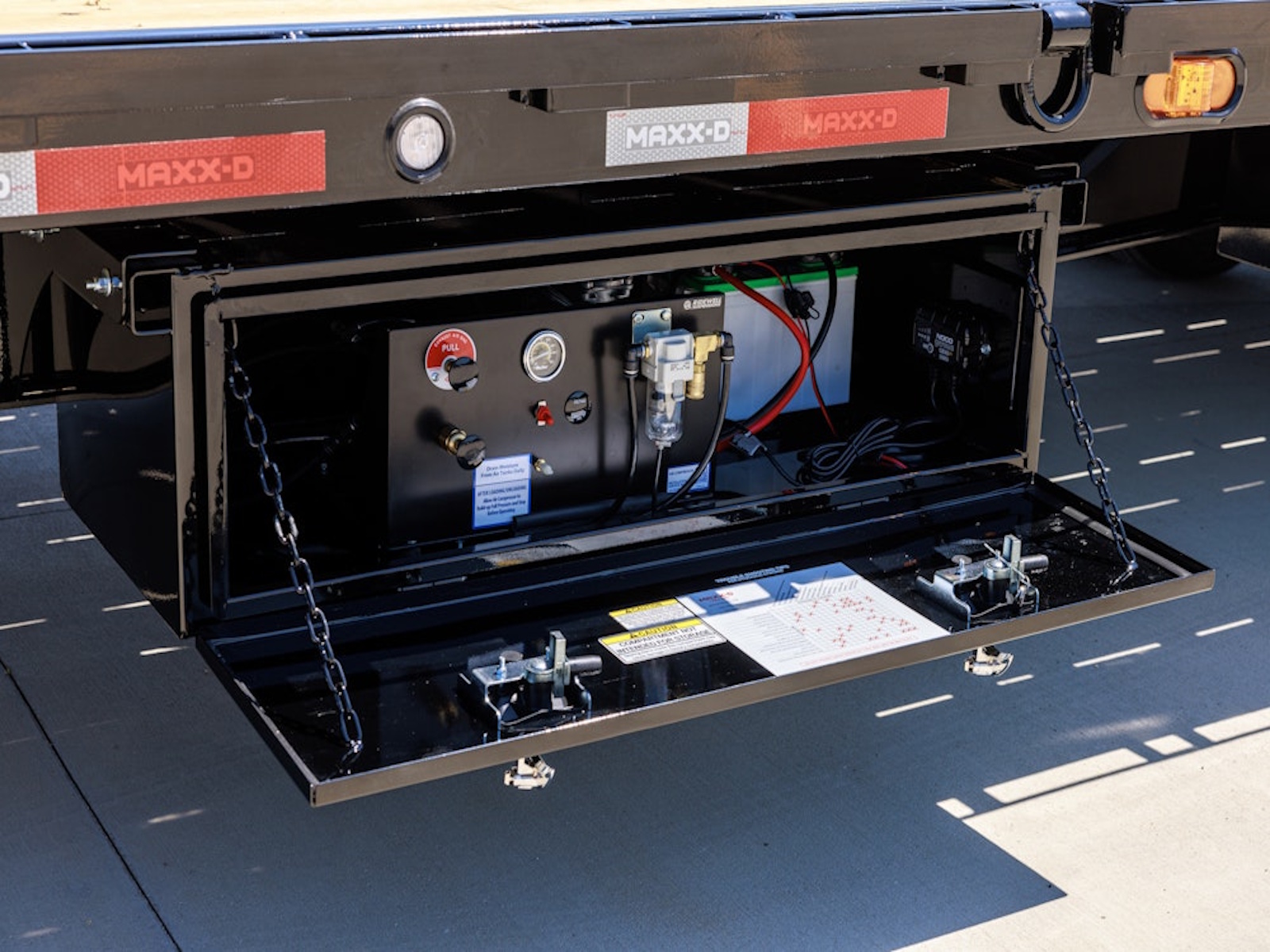

• FLUSHMOUNT LED'S/STANDARD WIRING/ BATTERY POWER PACK

DOVETAILS

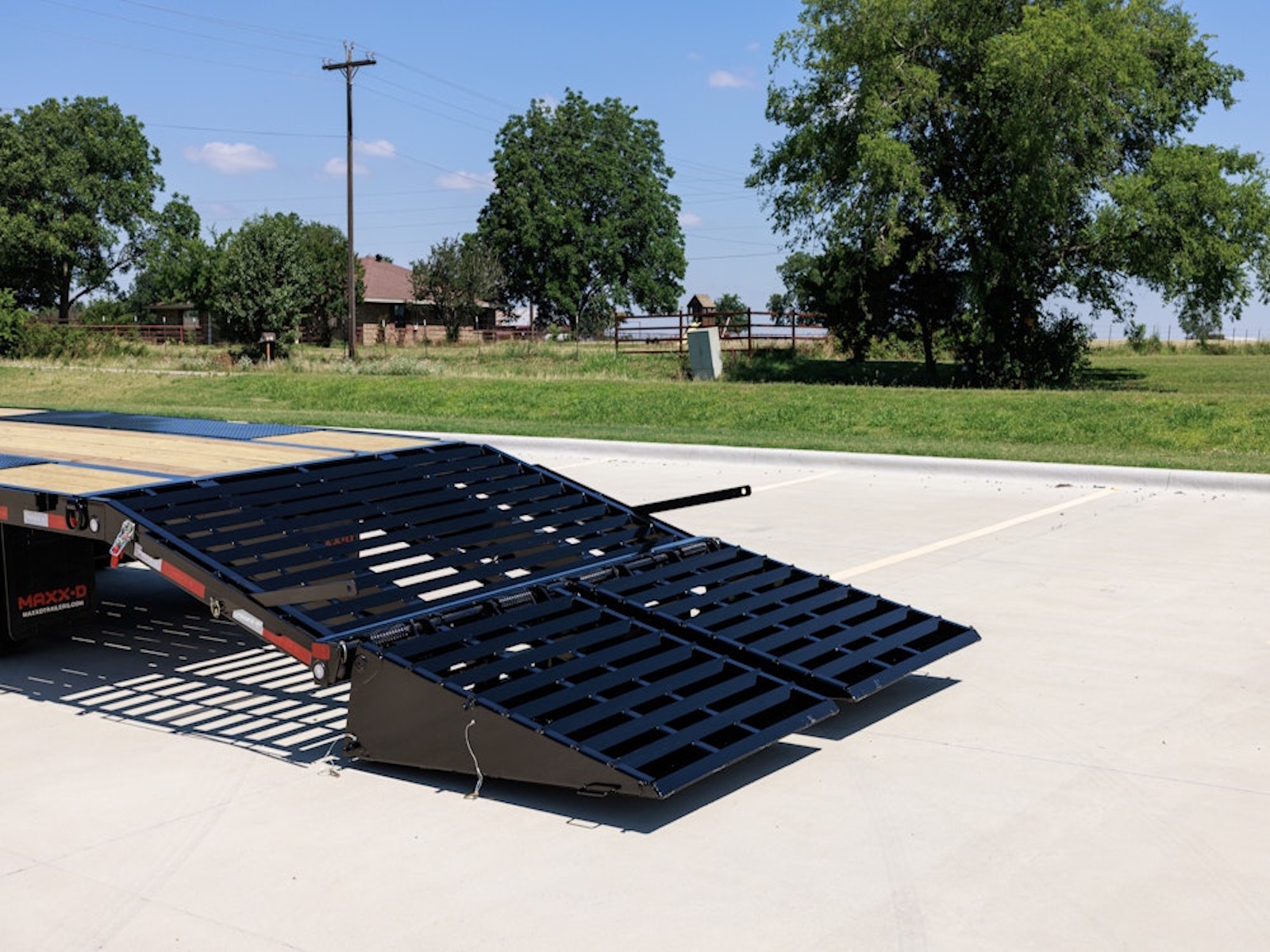

• 5' DOVETAIL/MAXXD-OUT RAMPS

AXLES

• 2-12K ELECTRIC BRAKE AXLES
• 2-12K ELECTRIC/HYDRAULIC BRAKE AXLES
• 2-15K ELECTRIC/HYDRAULIC BRAKE AXLES

SUSPENSIONS

• RIDEWELL AIR SUSPENSION ON 2 AXLES
• RIDEWELL AIR RIDE WITH 72" SPREAD AND FRONT LIFT AXLE
• RIDEWELL AIR SUSPENSION ON 2 AXLES WITH FRONT LIFT AXLE

FLOORS

• 2X8 OAK WOOD FLOOR
• BLACKWOOD LUMBER

D-RINGS

• EXTRA 3/4″ BULL-NOSE D-RINGS

SLIDING RATCHETS

• SLIDING RATCHET BAR ONLY
• SLIDING RATCHET BAR WITH 1 RATCHET PER 4′ OR 2’

WHEEL/TIRES

• ST235/85R16 G RADIAL TIRES ON DUALS for 2-10/12K
• ST215/75R17.5 H RADIAL TIRES ON DUALS for 15/16K
• ST235/75R17.5 I RADIAL TIRES SINGLES for 2-10/12K
• ST215/75R17.5 H RADIAL TIRES ON DUALS for 2-10/12K
• ST235/75R17.5 I RADIAL ON DUALS for 2-15K

OTHER OPTIONS

• DUNNAGE BOX

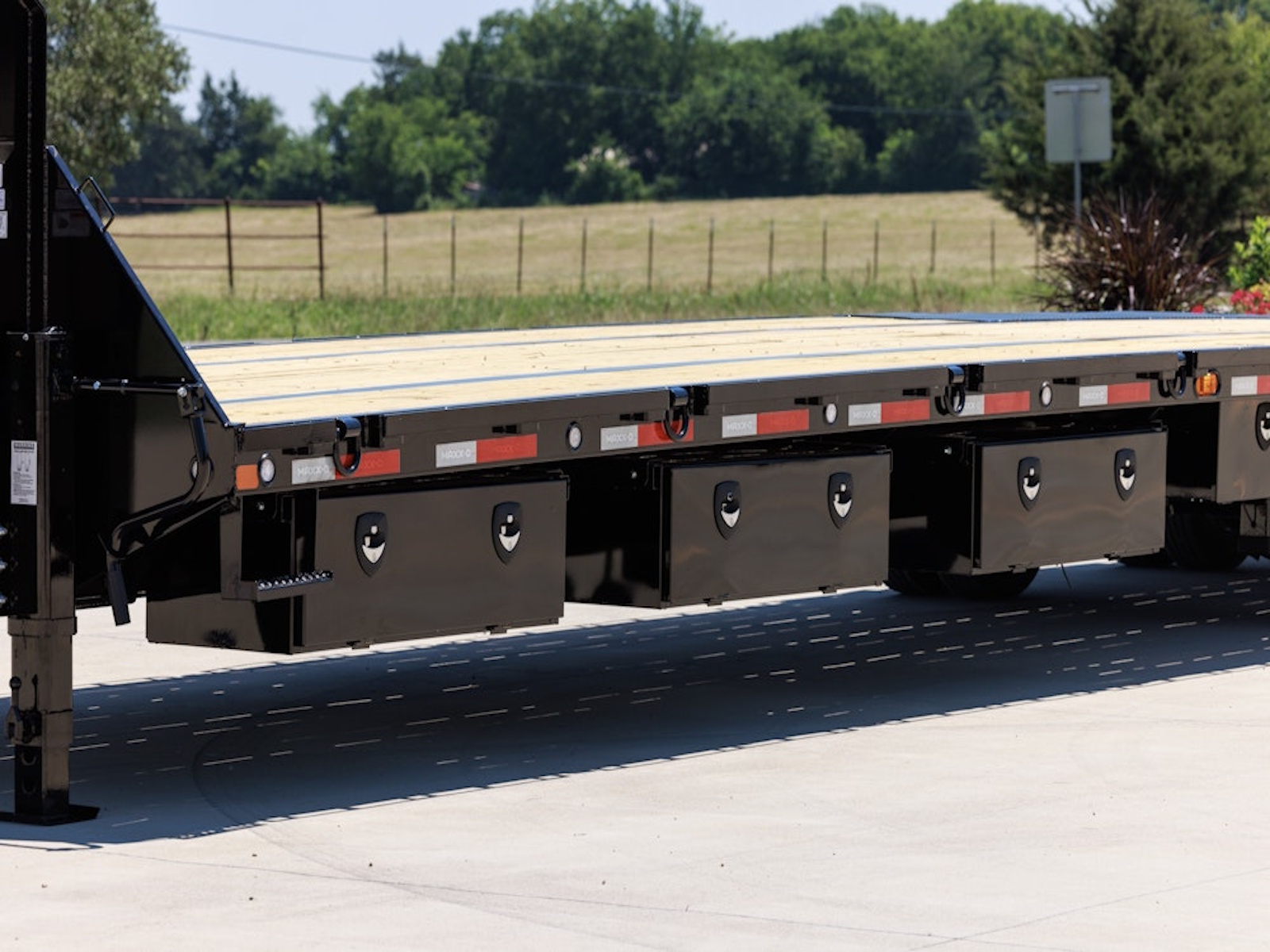

• 1x OR 2x 48″ SIDE MOUNT TOOLBOXES
• 1x OR 2x 48″ SLIDING DRAWER SIDE MOUNT BOXES
• WINCH ROLLER
• WINCH PLATE IN FRONT
• 8″ WINCH CHANNEL BETWEEN RISERS
• WARRIOR 17.5K 22K WINCH IN NECK
• WARRIOR 17.5K 22K WINCH MOUNTED ON PLATE/CHANNEL
• 7-WATT SOLAR PANEL
• SECOND BATTERY
• LOCKABLE CHAIN RACK IN NECK
• 2X REAR-FACING CARGO LIGHTS
