2027 MaxxD Trailers YDX10238

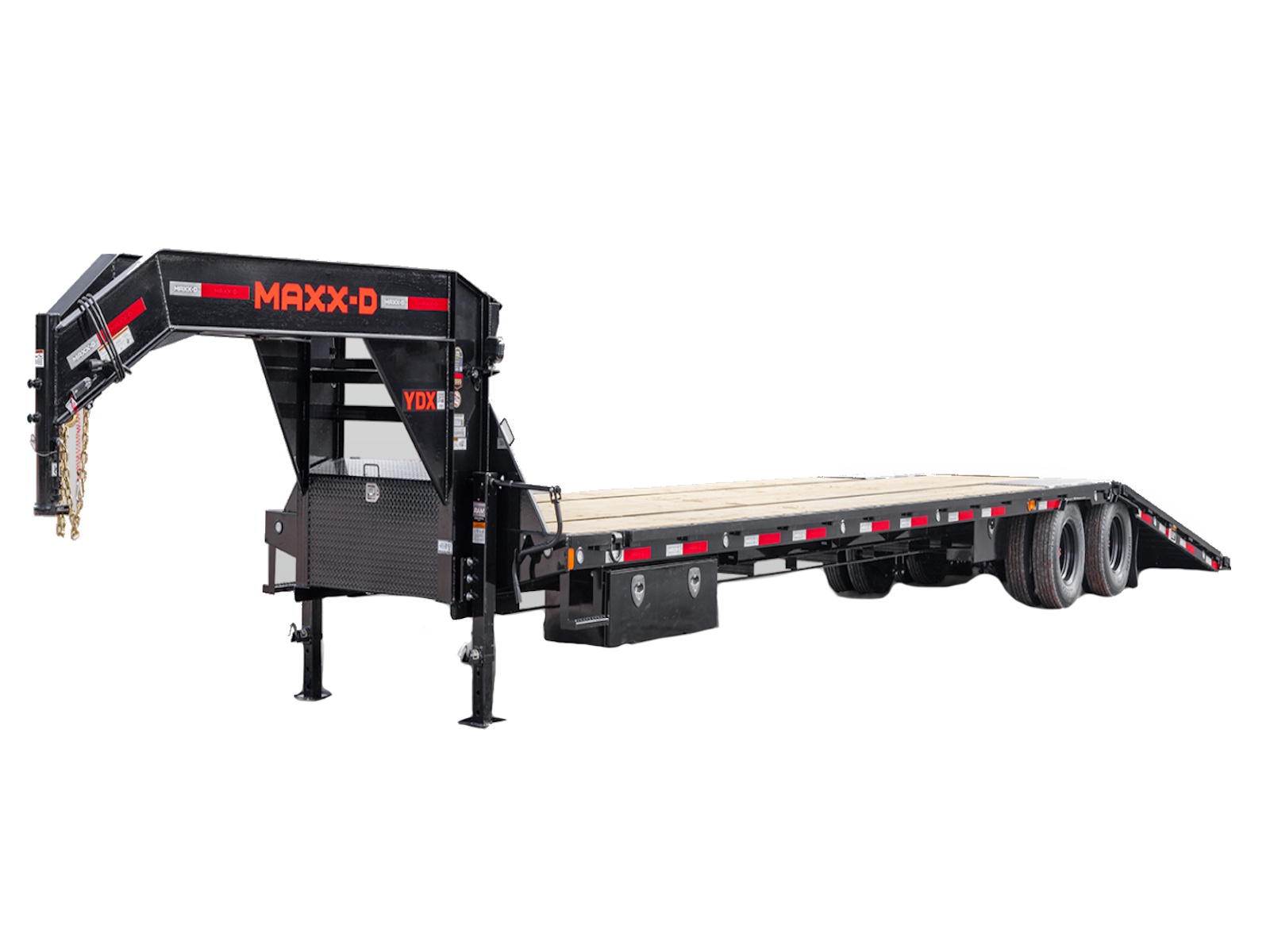

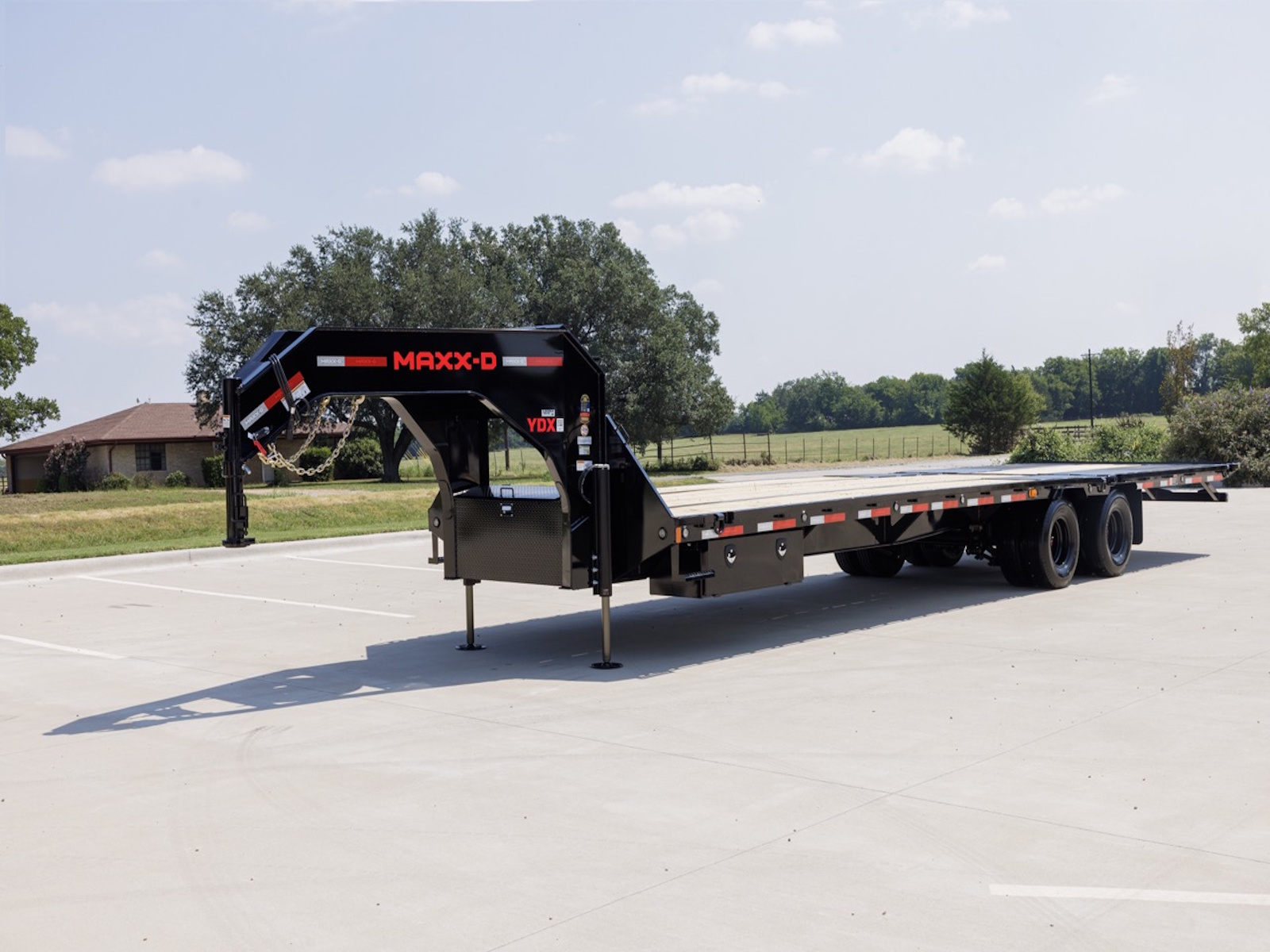

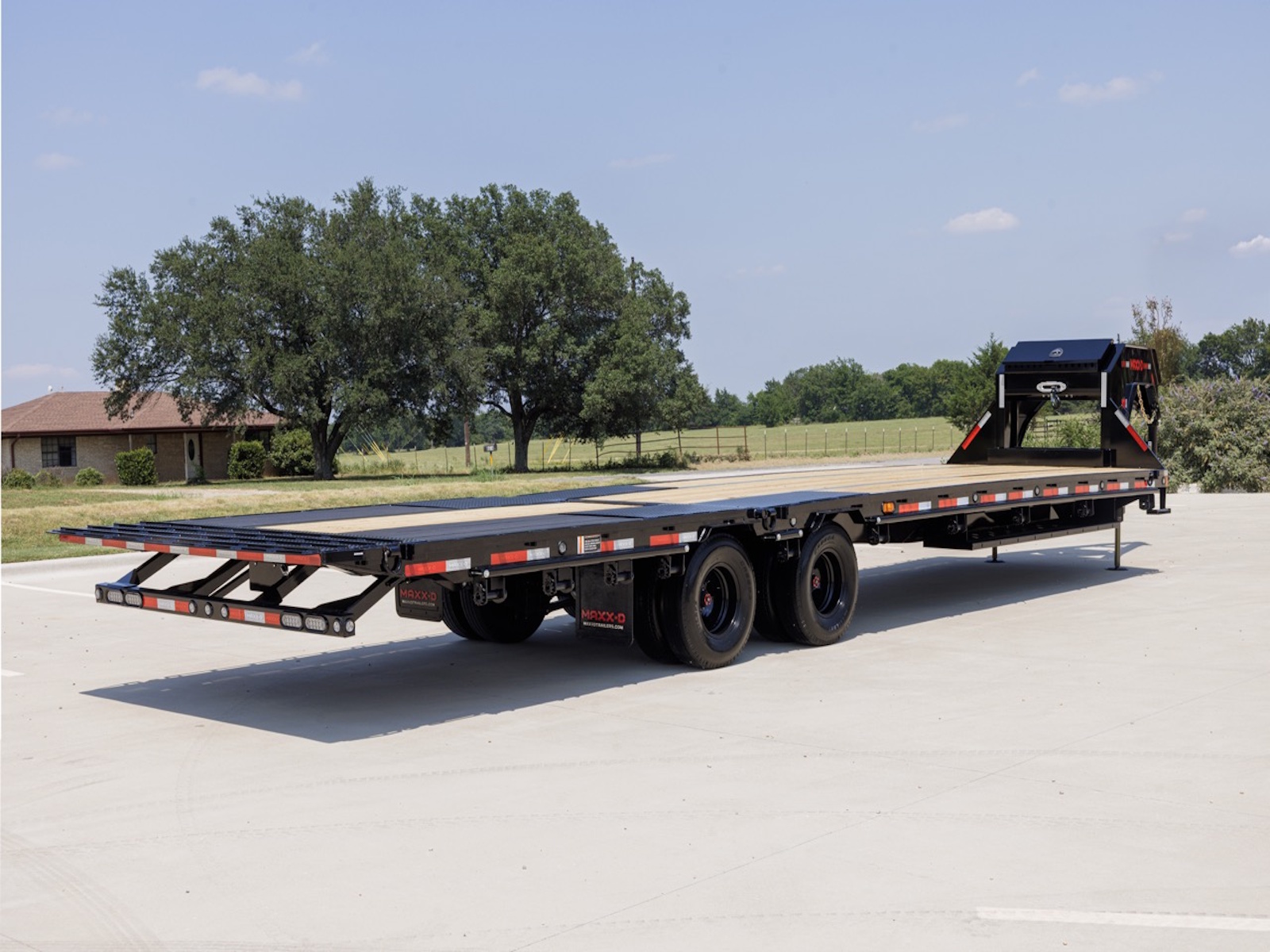

YDX – TANDEM DUAL HYDRAULIC DOVETAIL TRAILER

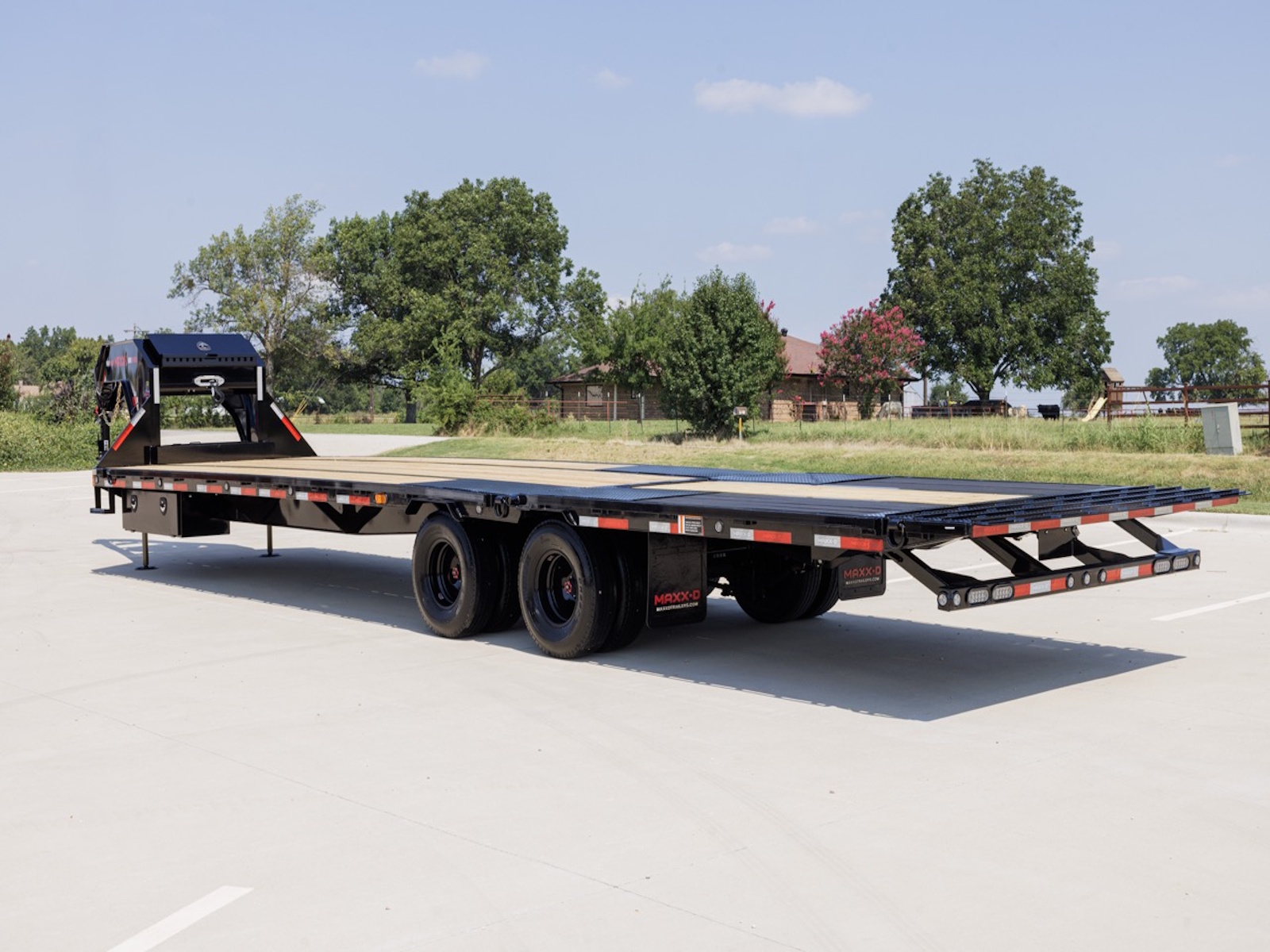

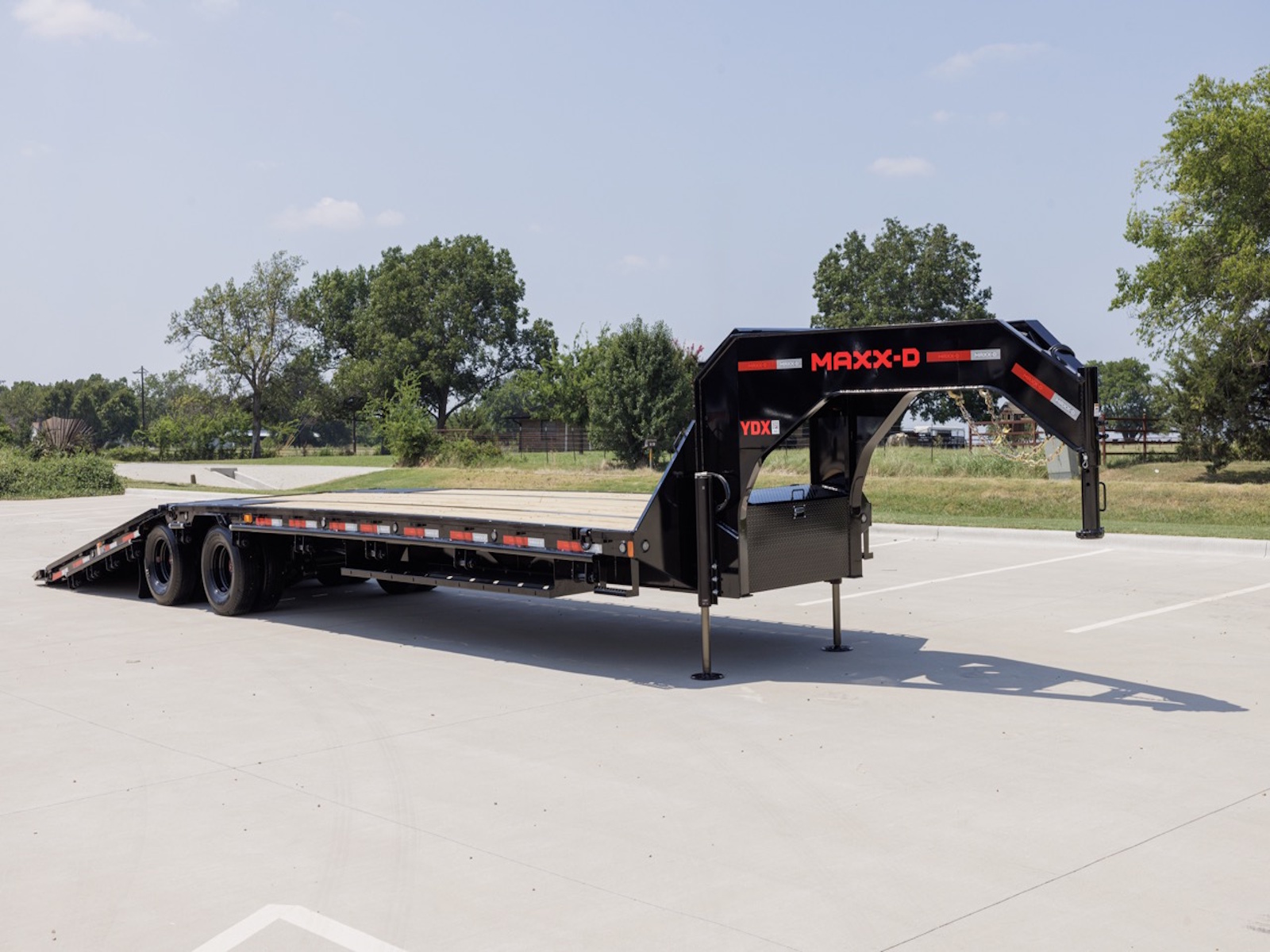

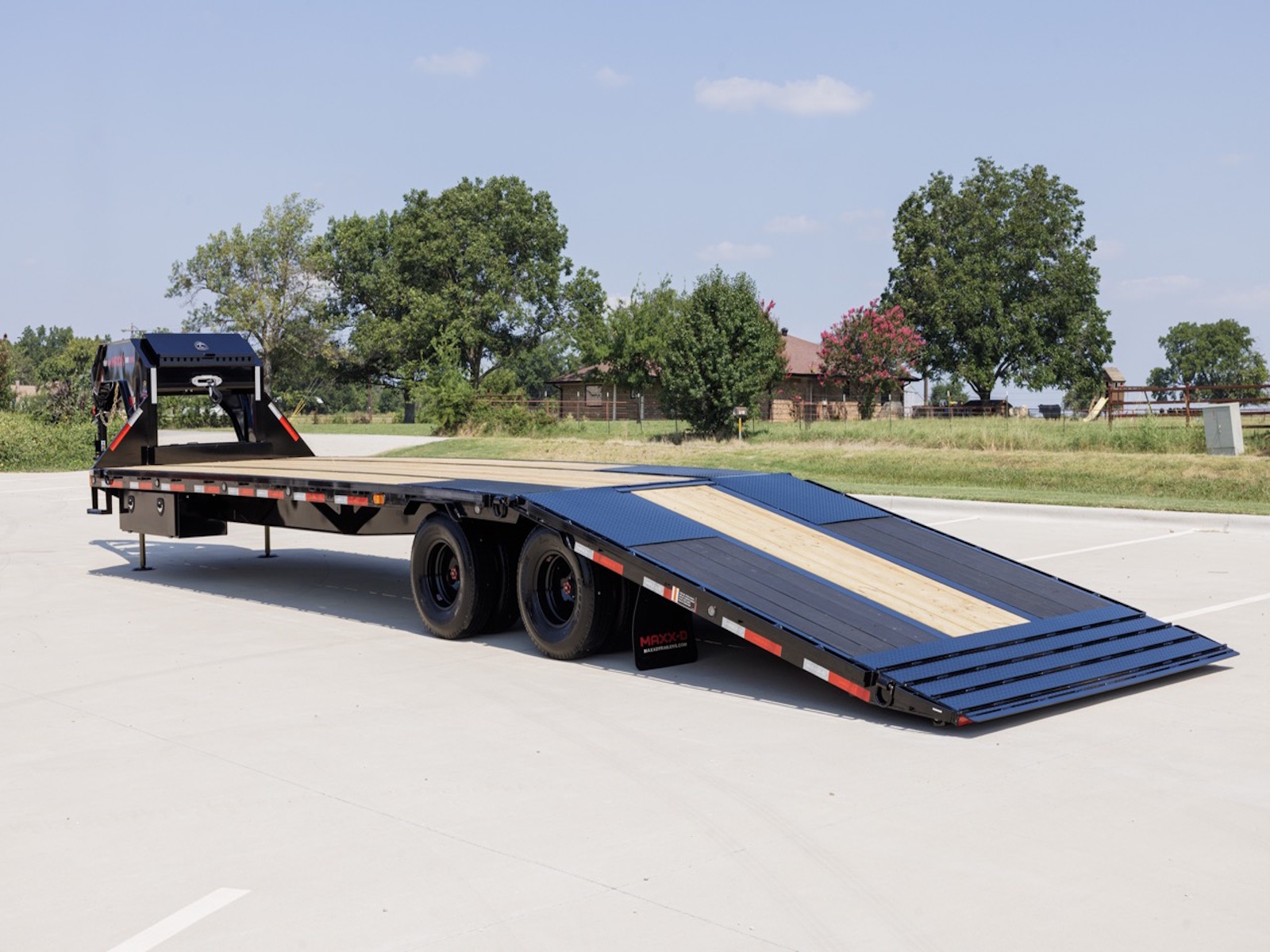

The YDX Hydraulic Dovetail Gooseneck makes loading heavy equipment effortless with its full-width, 12’ hydraulic dovetail. Designed for smooth, controlled operation, it eliminates the need for traditional ramps—just push a button and load.

With a 12.5-degree loading angle, a reinforced torque tube for added stiffness, and twin 10K electric brake axles, the YDX has a 22,500 lb. GVWR, upgradeable to 30,000 lbs. Available in 32’ to 40’ lengths, it’s the go-to trailer for serious haulers needing fast, reliable loading.

At MAXX-D, we build reliable trailers so you can focus on building something great.

Features May Include:

• 2 5/16″ 30K ROUND GN COUPLER

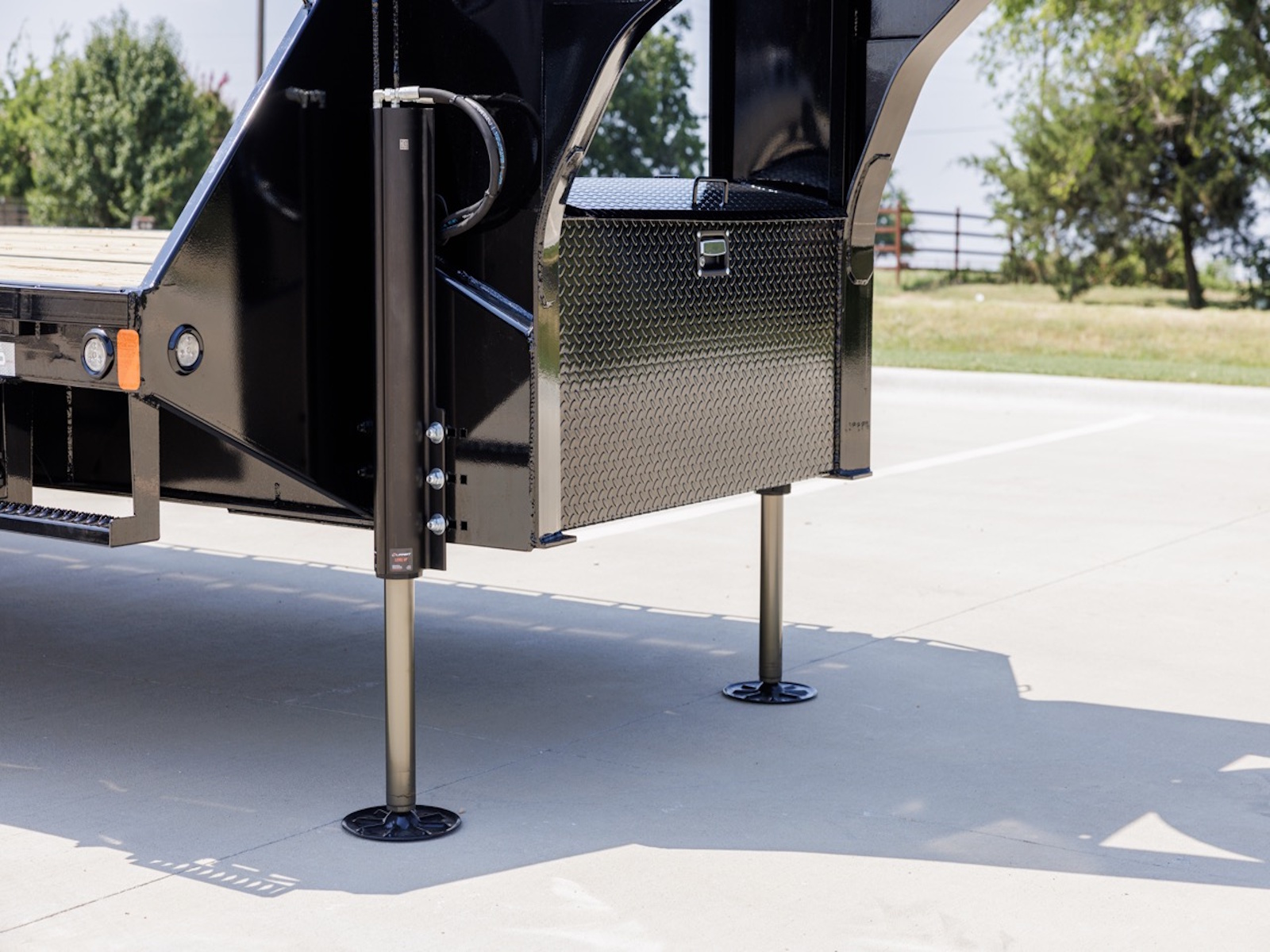

• 2 – 10K DROP-LEG JACKS

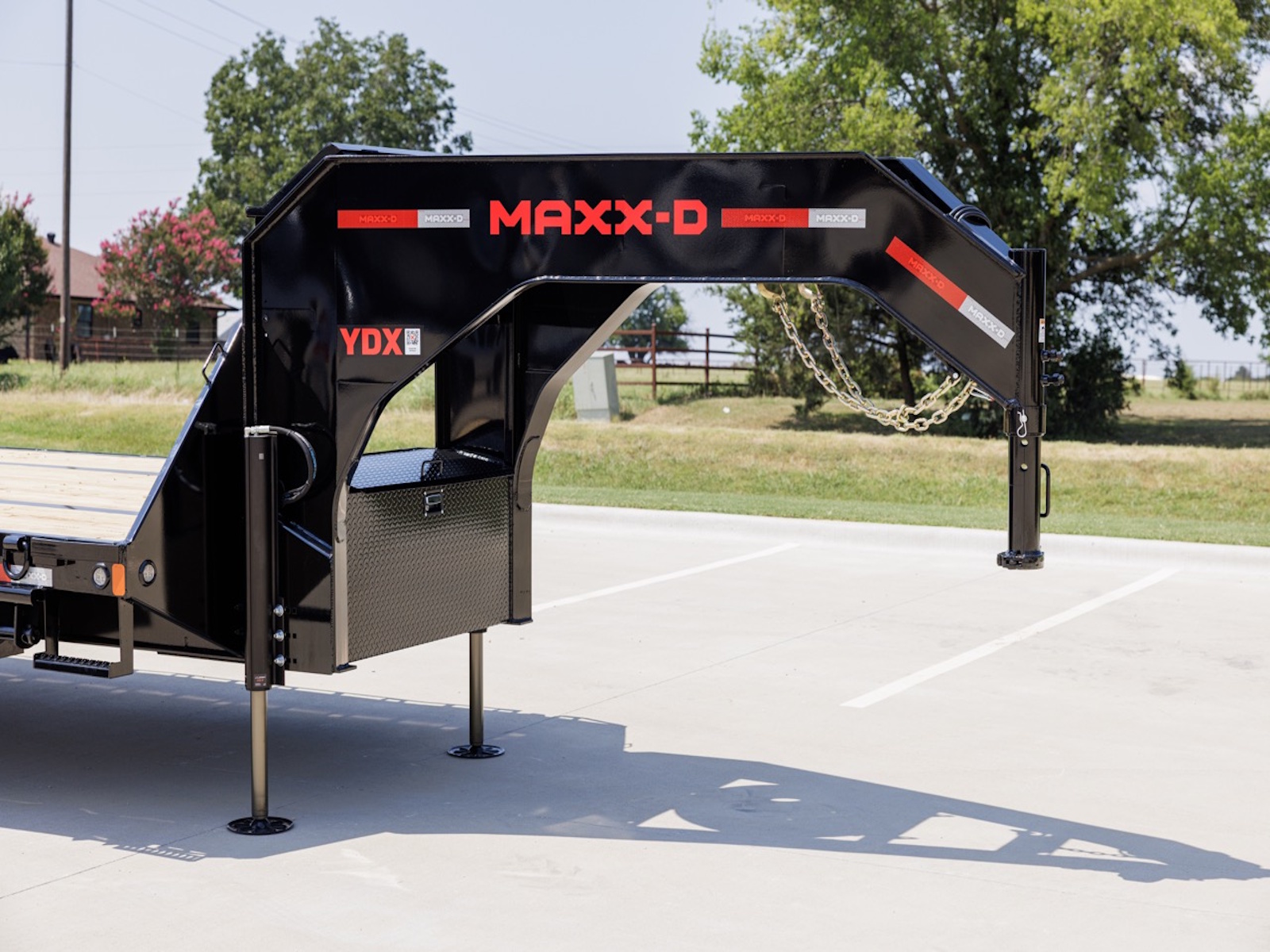

• STND HEIGHT I-BEAM NECK

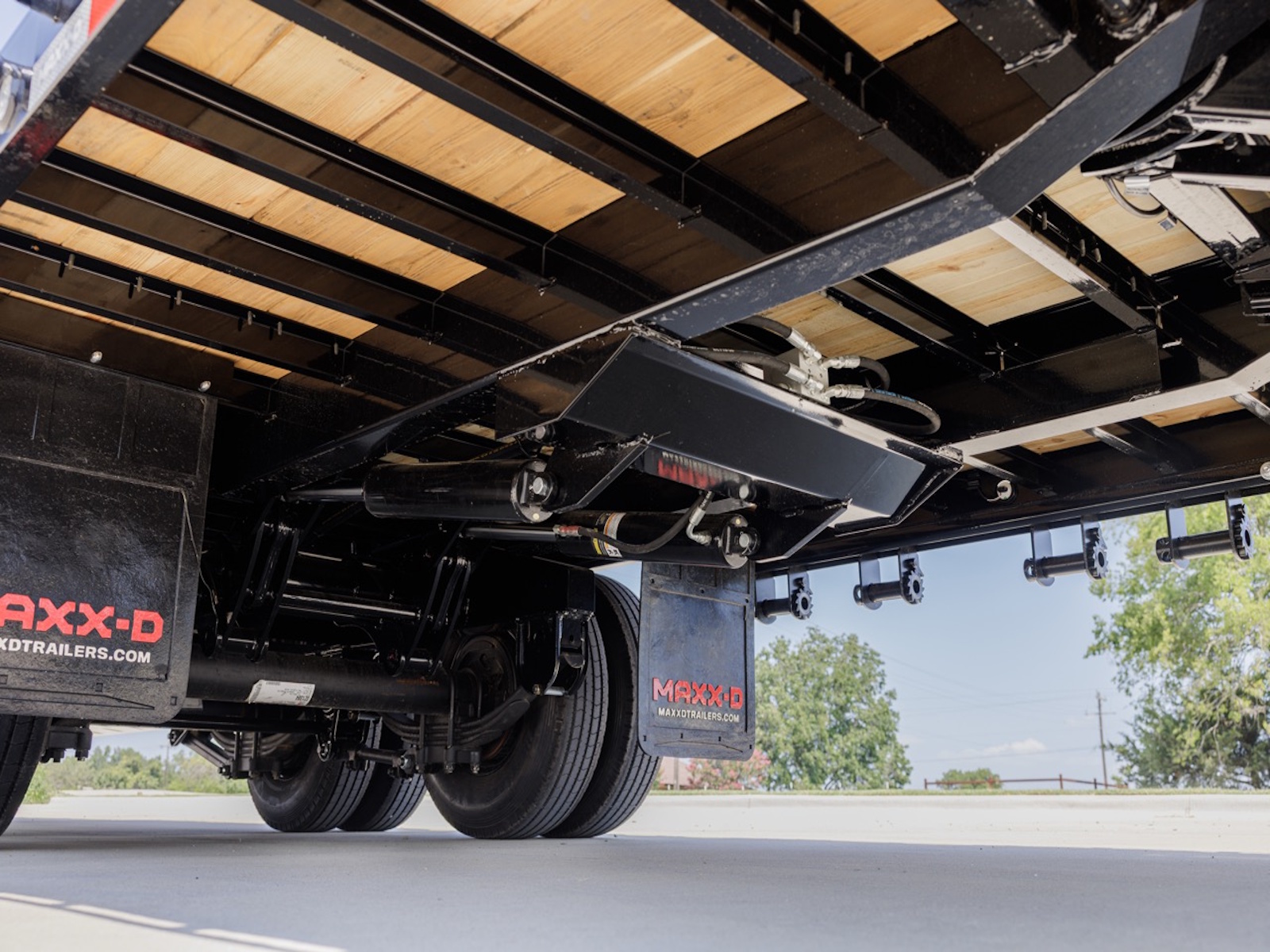

• 12″ X 19LB I-BEAM FRAME WITH TORQUE TUBE
• 3″ CHANNEL ON 16″ CENTERS
• 6″ CHANNEL OUTER FRAME

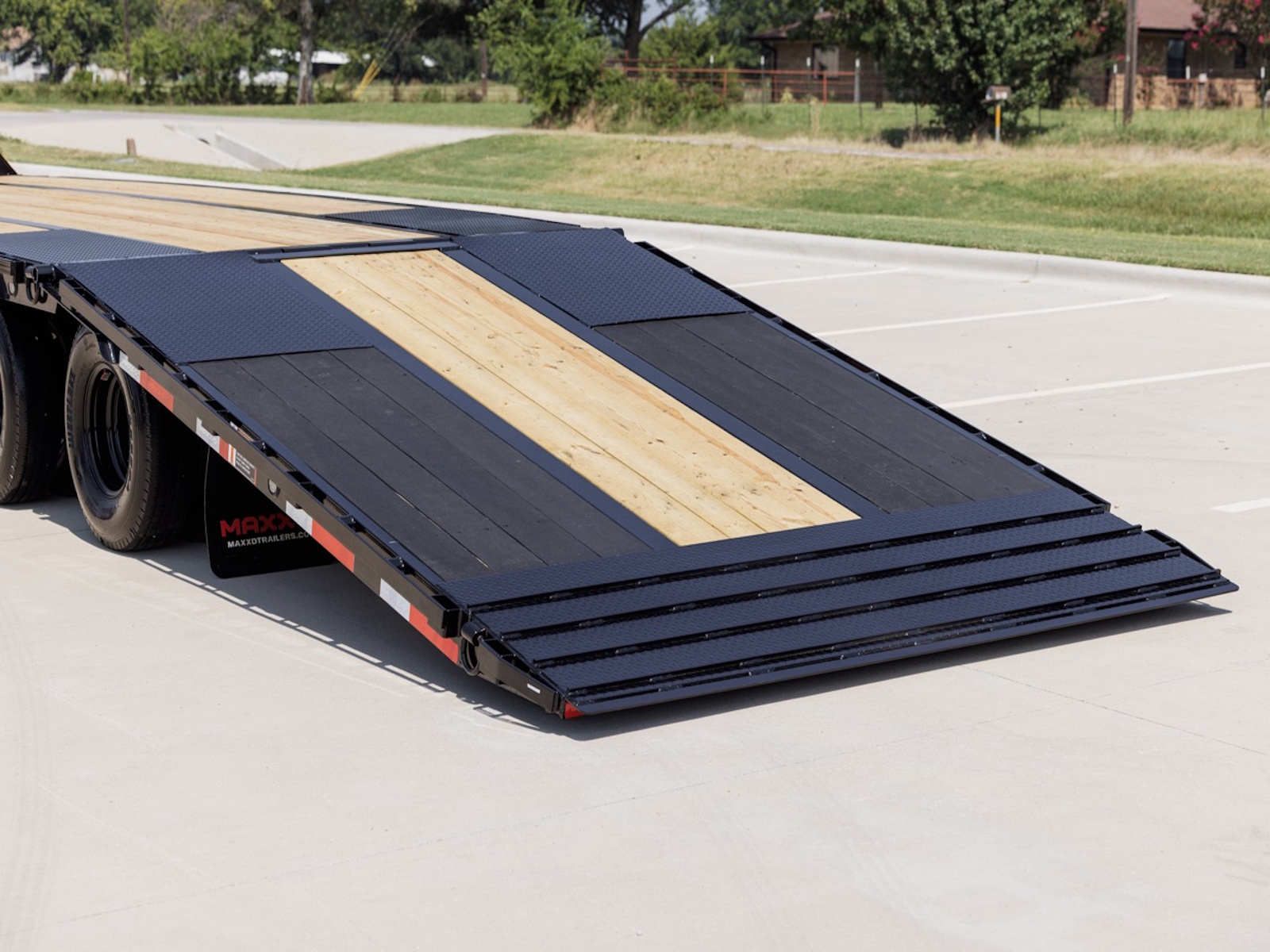

• 12′ HYDRAULIC DOVETAIL
• 2-10K ELECTRIC BRAKE AXLES

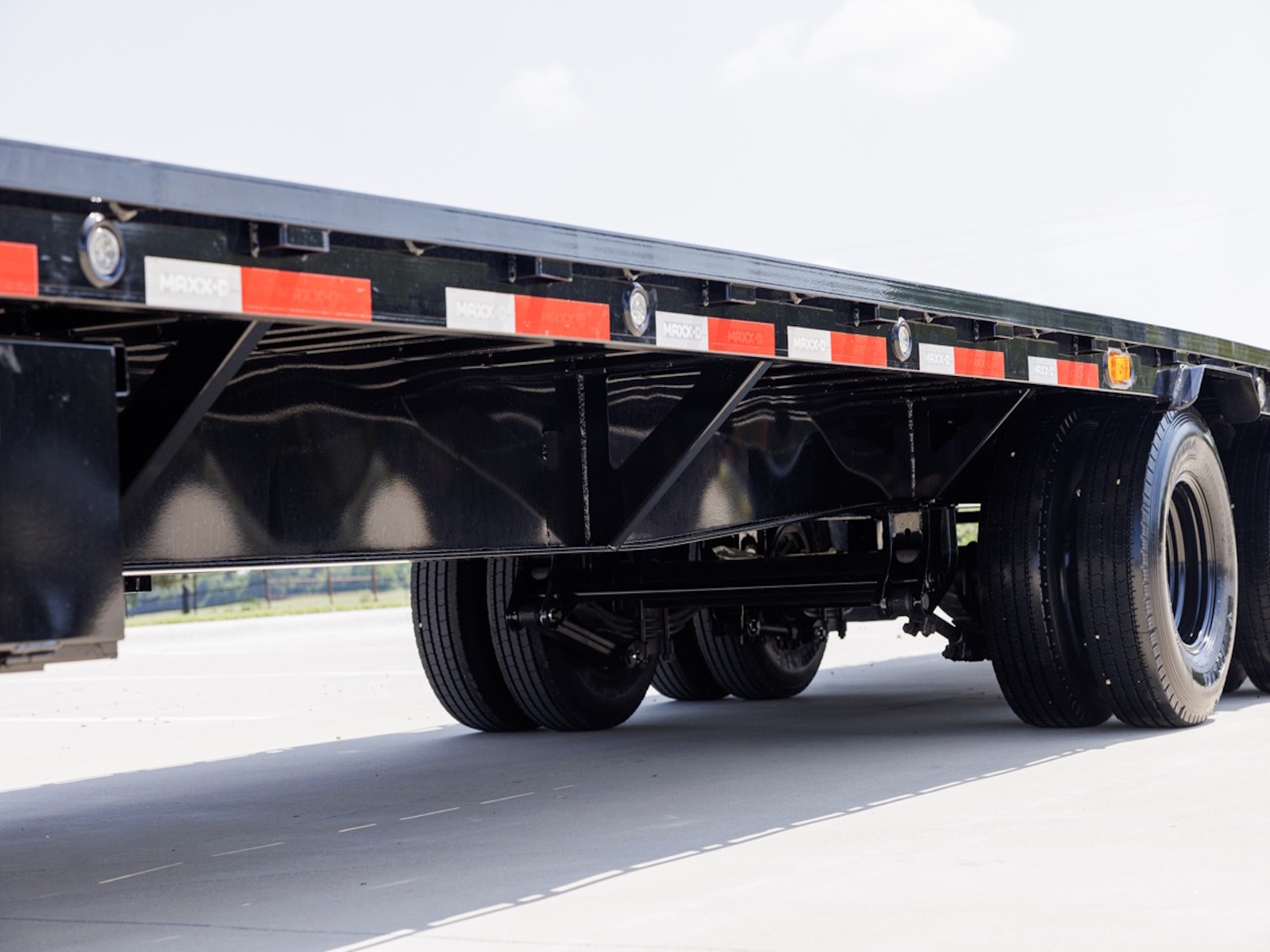

• ADJUSTABLE SUSPENSION ON 2 AXLES
• ST235/80R16 E RADIAL TIRES ON DUALS
• 2X8 TREATED WOOD FLOOR
• FLUSHMOUNT LED’S/STANDARD WIRING
• WIRELESS REMOTE

Options:

COUPLERS

• 30K ROUND GN COUPLER KING PIN
• 2 5/16″ PLATE MOUNT ADJUSTABLE COUPLER
• 30K ADJUSTABLE PINTLE EYE

JACKS

• 2 – 2-SPEED JOST JACKS
• 2 – HYDRAULIC JACKS

TONGUE/NECKS

• STND HEIGHT I-BEAM NECK (OPT. W/ RISER BOX OR DECK-OVER)
• 6″ EXTENDED HEIGHT RISERS NECK (OPT. W/RISER BOX OR DECK-OVER)
• I-BEAM TONGUE WITH TOOL TRAY OR TOOLBOX

FRAMES

• 12″ X 19LB I-BEAM FRAME WITH BRIDGE AND TORQUE TUBE
• 12″ X 22LB I-BEAM FRAME WITH TORQUE TUBE
• 12″ X 22LB I-BEAM FRAME WITH BRIDGE AND TORQUE TUBE

CROSSMEMBERS

• 3″ CHANNEL ON 12″ CENTERS

DOVETAILS

• 12' HYD DOVETAIL W/DIAMOND PLATE RUNNERS WITH TRAC BARS

AXLES

• 2-12K ELECTRIC BRAKE AXLES
• 2-12K ELECTRIC/HYDRAULIC BRAKE AXLES
• 2-15K ELECTRIC/HYDRAULIC BRAKE AXLES

SUSPENSIONS

• RIDEWELL AIR SUSPENSION ON 2 AXLES (OPT. W/FRONT LIFT AXLE)
• RIDEWELL AIR RIDE WITH 72" SPREAD AND FRONT LIFT AXLE
• 72" SPREAD ON ADJUSTABLE SUSPENSION 2 AXLES

WHEEL/TIRES

• ST235/85R16 G RADIAL TIRES ON DUALS FOR 2-10/12K
• ST215/75R17.5 H RADIAL TIRES ON DUALS FOR 15K
• ST215/75R17.5 H RADIAL TIRES ON DUALS FOR 2-10/12K
• ST235/75R17.5 I RADIAL TIRES ON DUALS FOR 2-15K

FLOORS

• 2X8 OAK OR BLACKWOOD FLOOR

D-RINGS

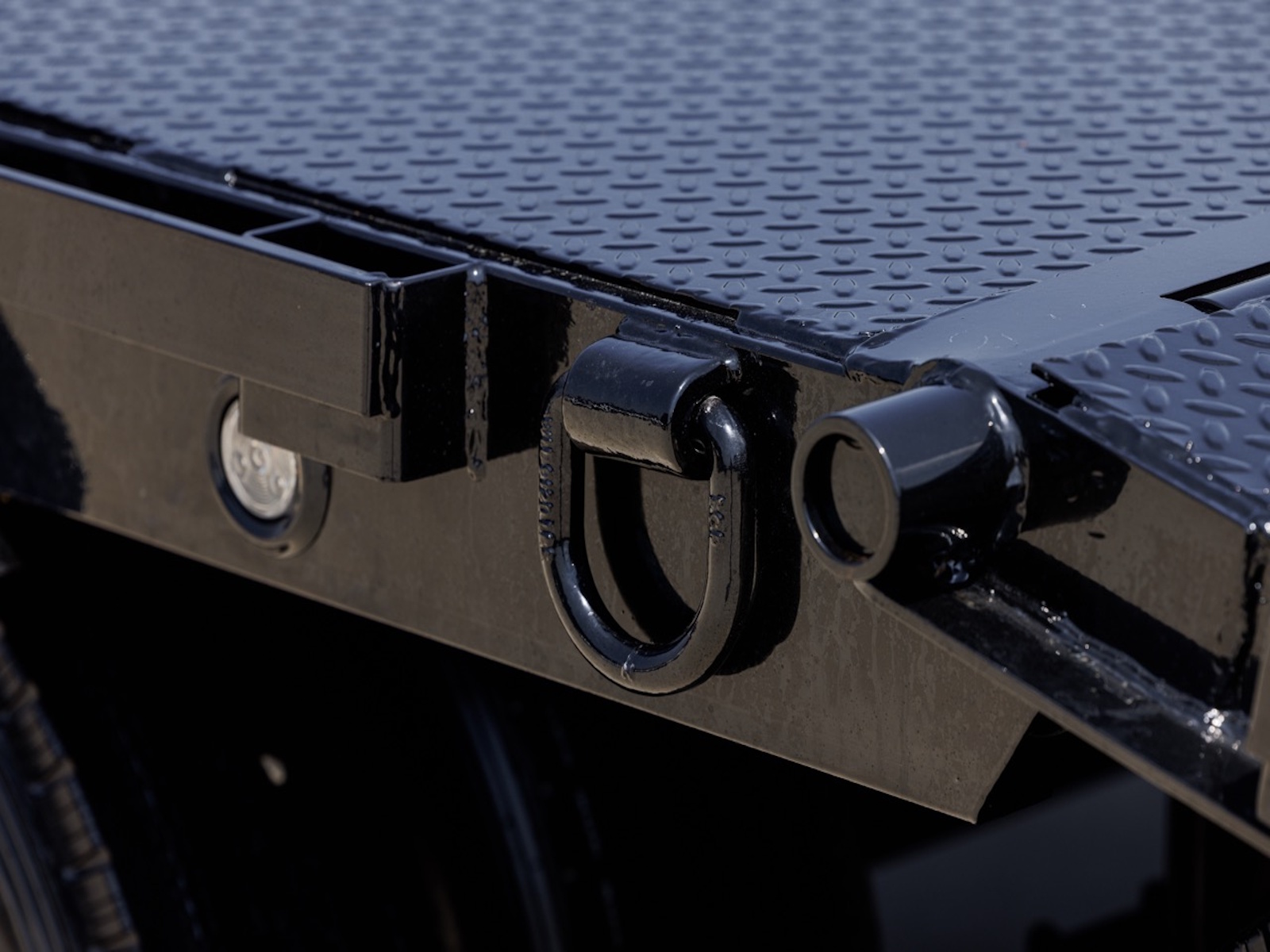

• EXTRA 3/4″ BULL-NOSE D-RINGS

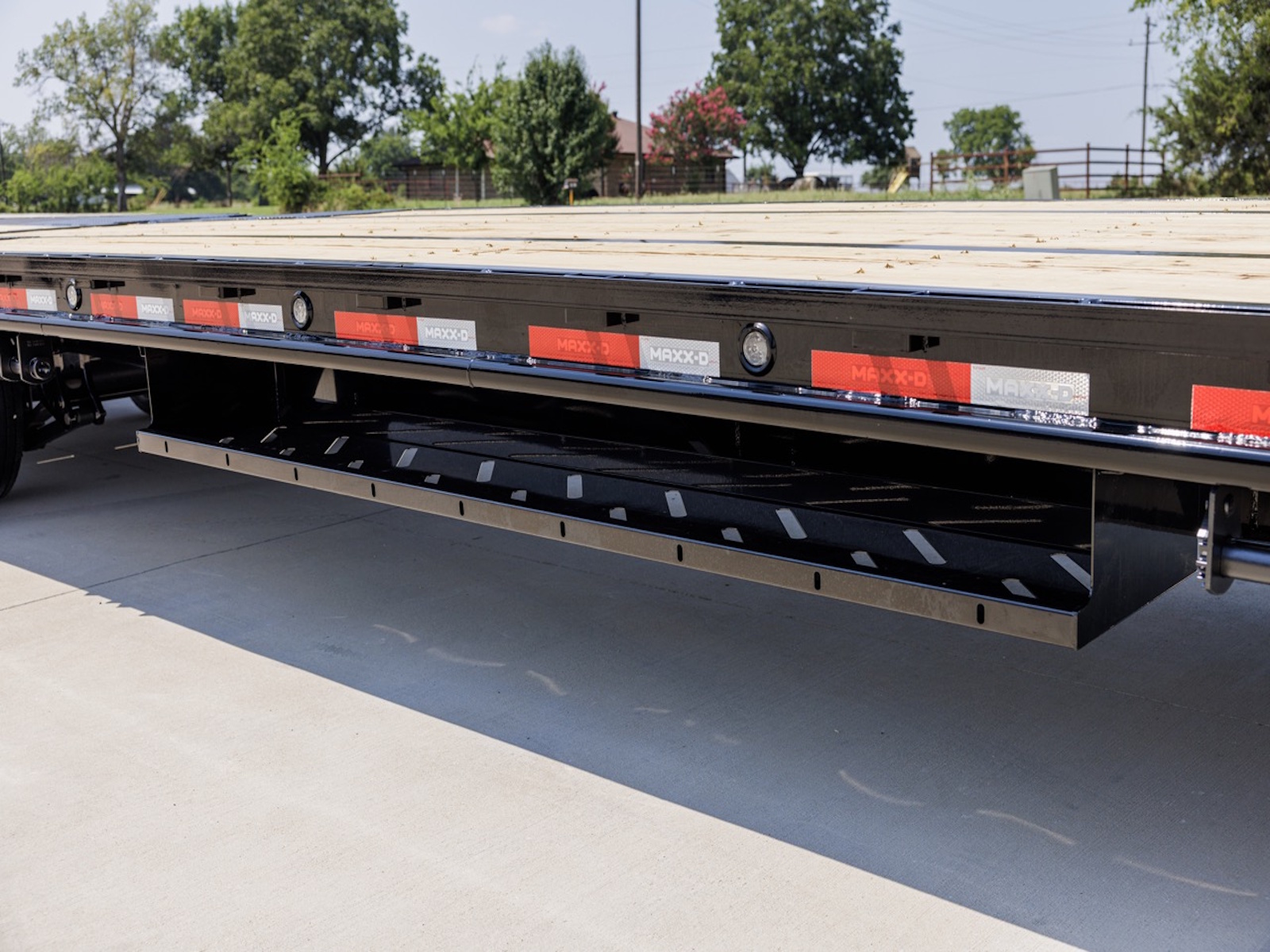

SLIDING RATCHETS

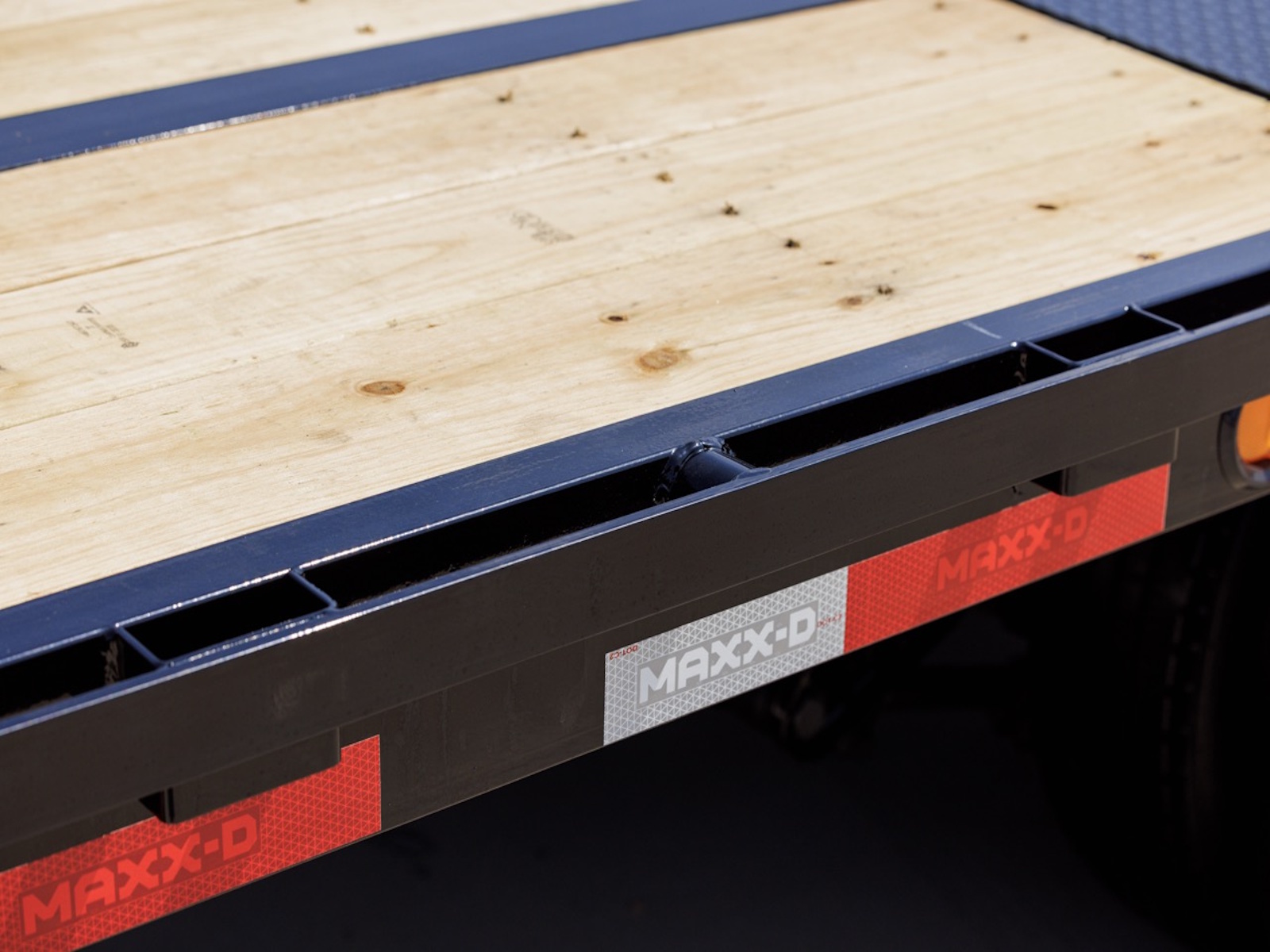

• SLIDING RATCHET BAR ONLY

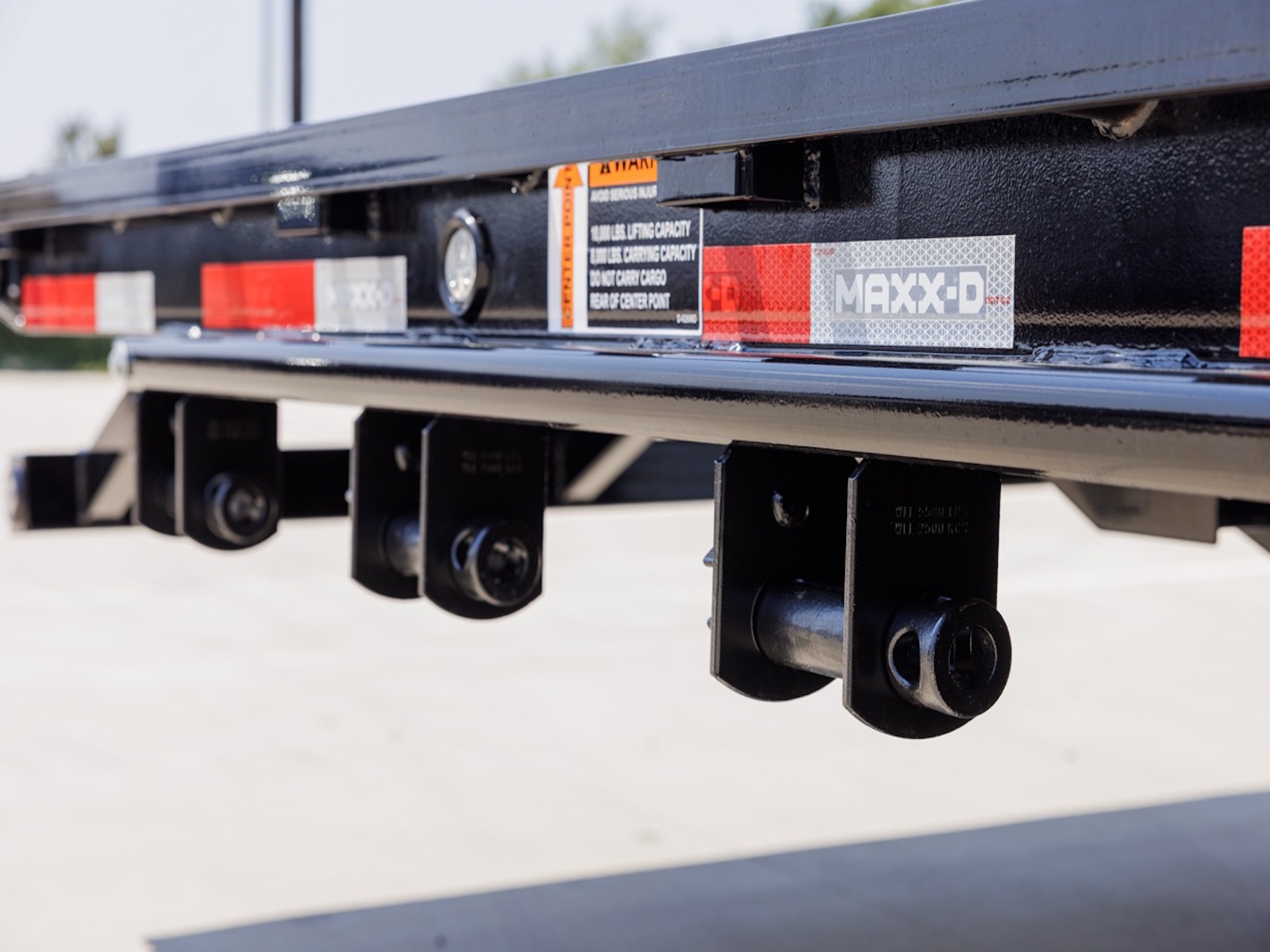

• SLIDING RATCHET BAR WITH 1 RATCHET PER 2′ OR 4’
• SLIDING RATCHET BARS ON BOTH SIDES

OTHER OPTIONS

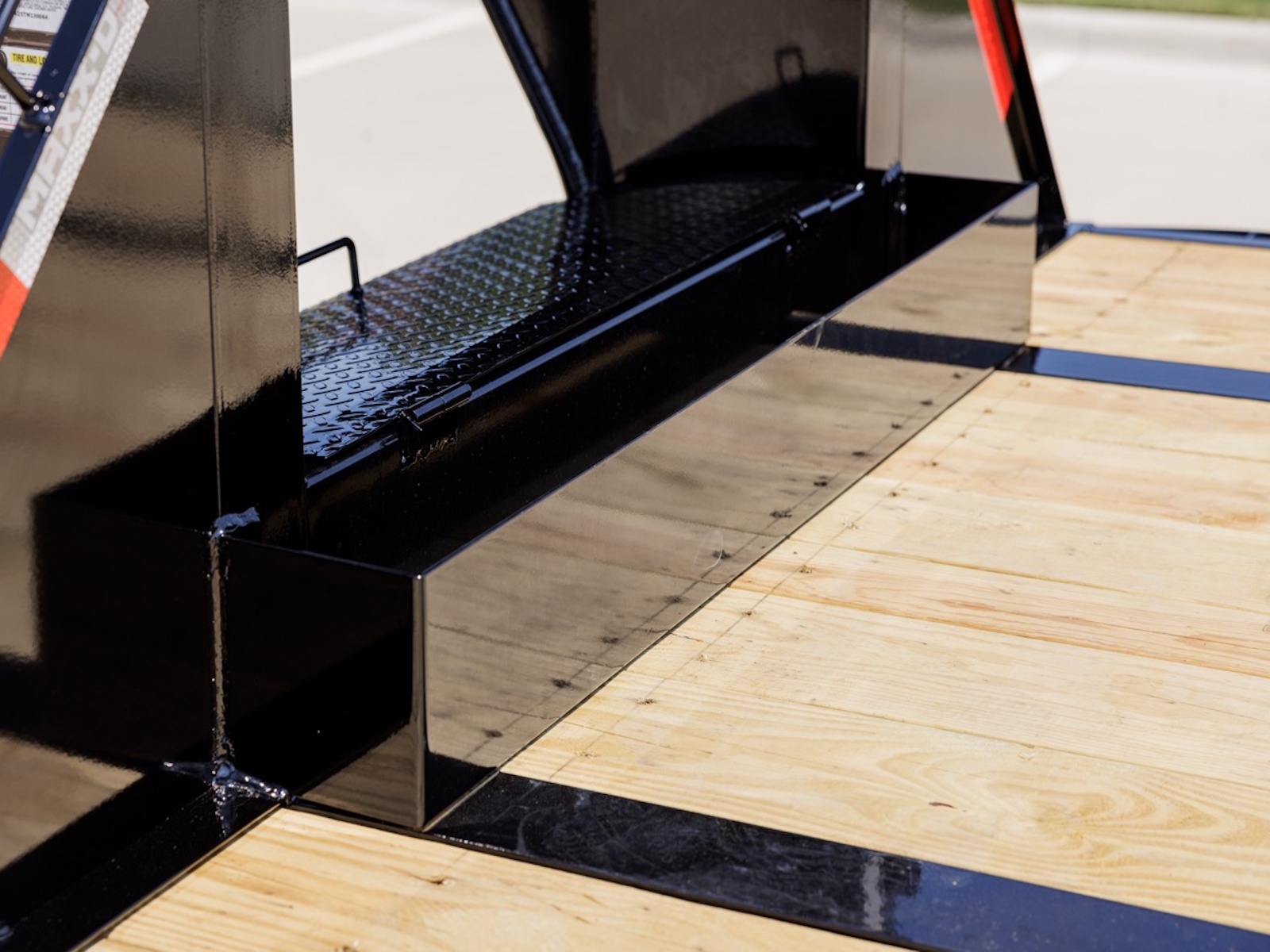

• DUNNAGE BOX

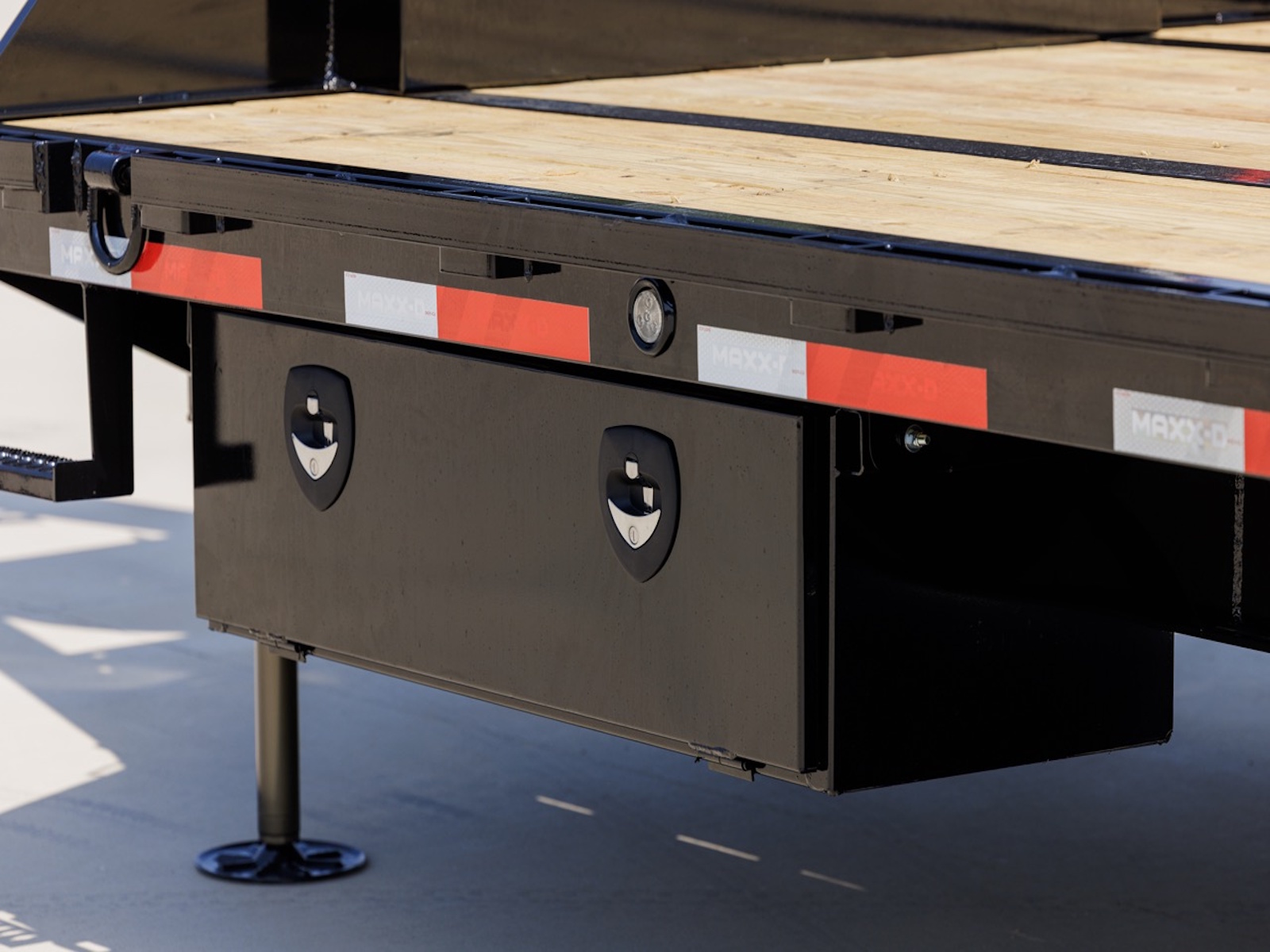

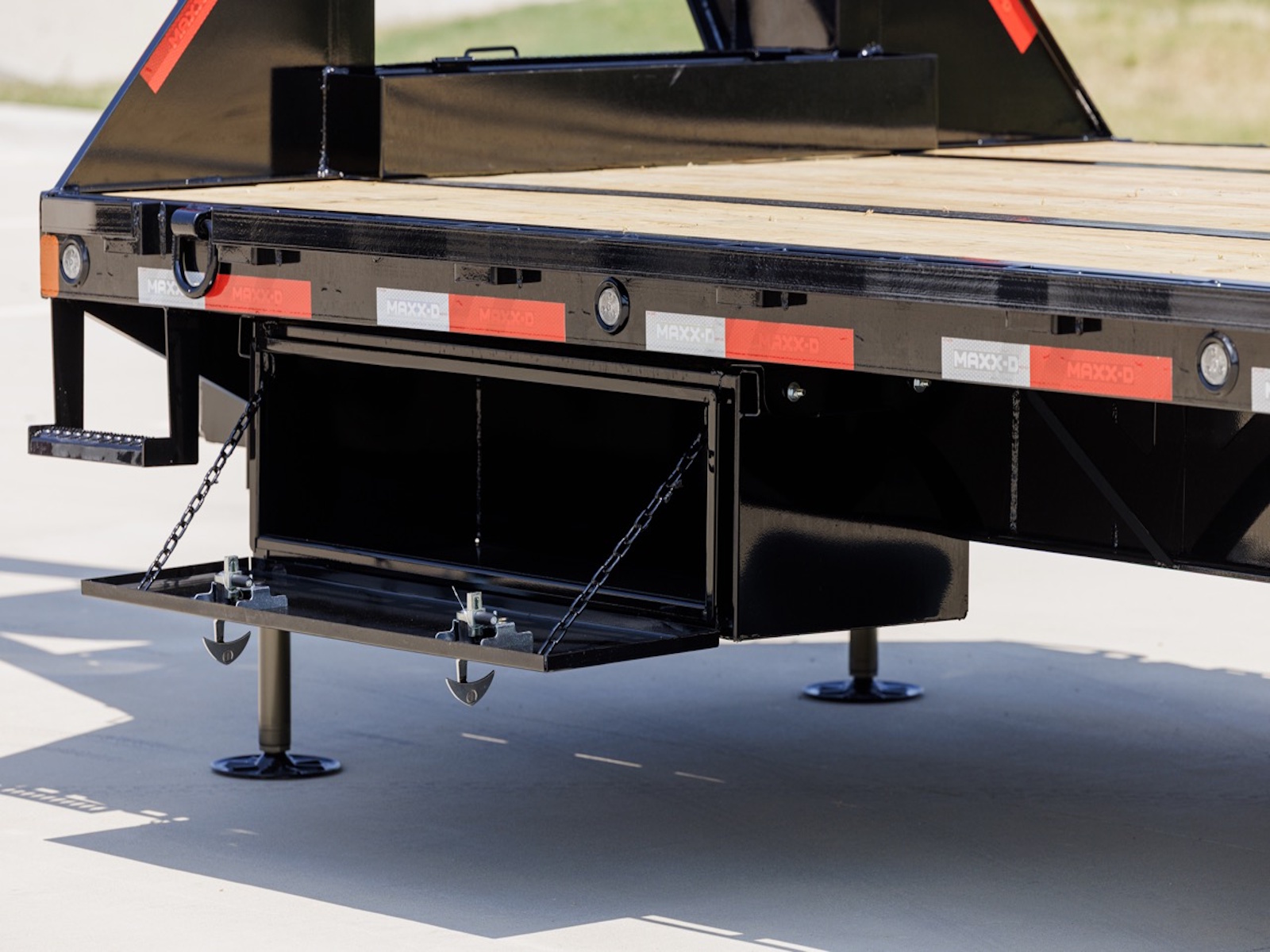

• 1x OR 2x 48″ SIDE MOUNT TOOLBOXES
• 1x, 2x, OR 3x 48″ SLIDING DRAWER SIDE MOUNT BOXES
• WINCH ROLLER
• WINCH PLATE IN FRONT
• 8″ WINCH CHANNEL BETWEEN RISERS

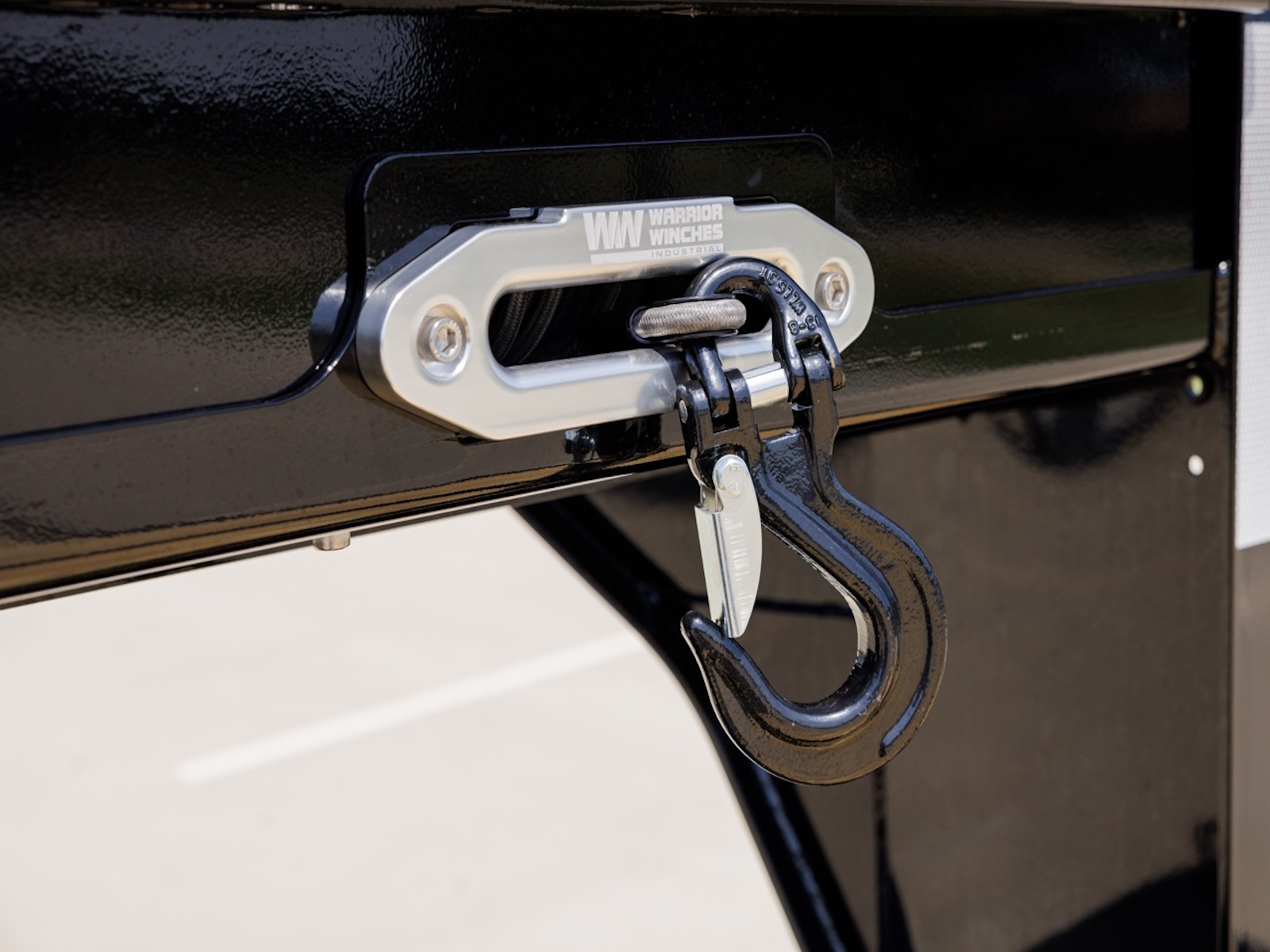

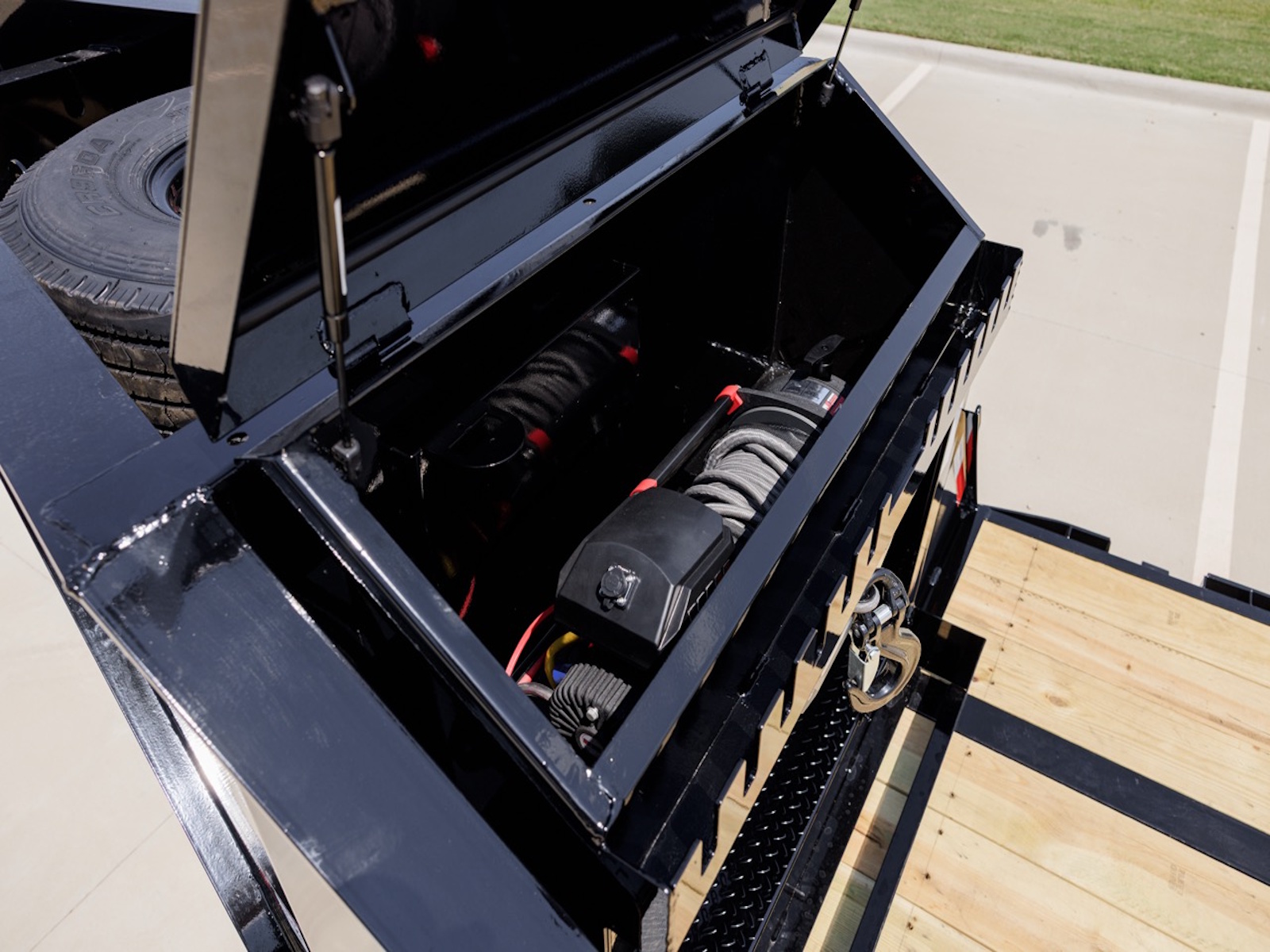

• WARRIOR 17.5K OR 22K WINCH MOUNTED ON PLATE/CHANNEL

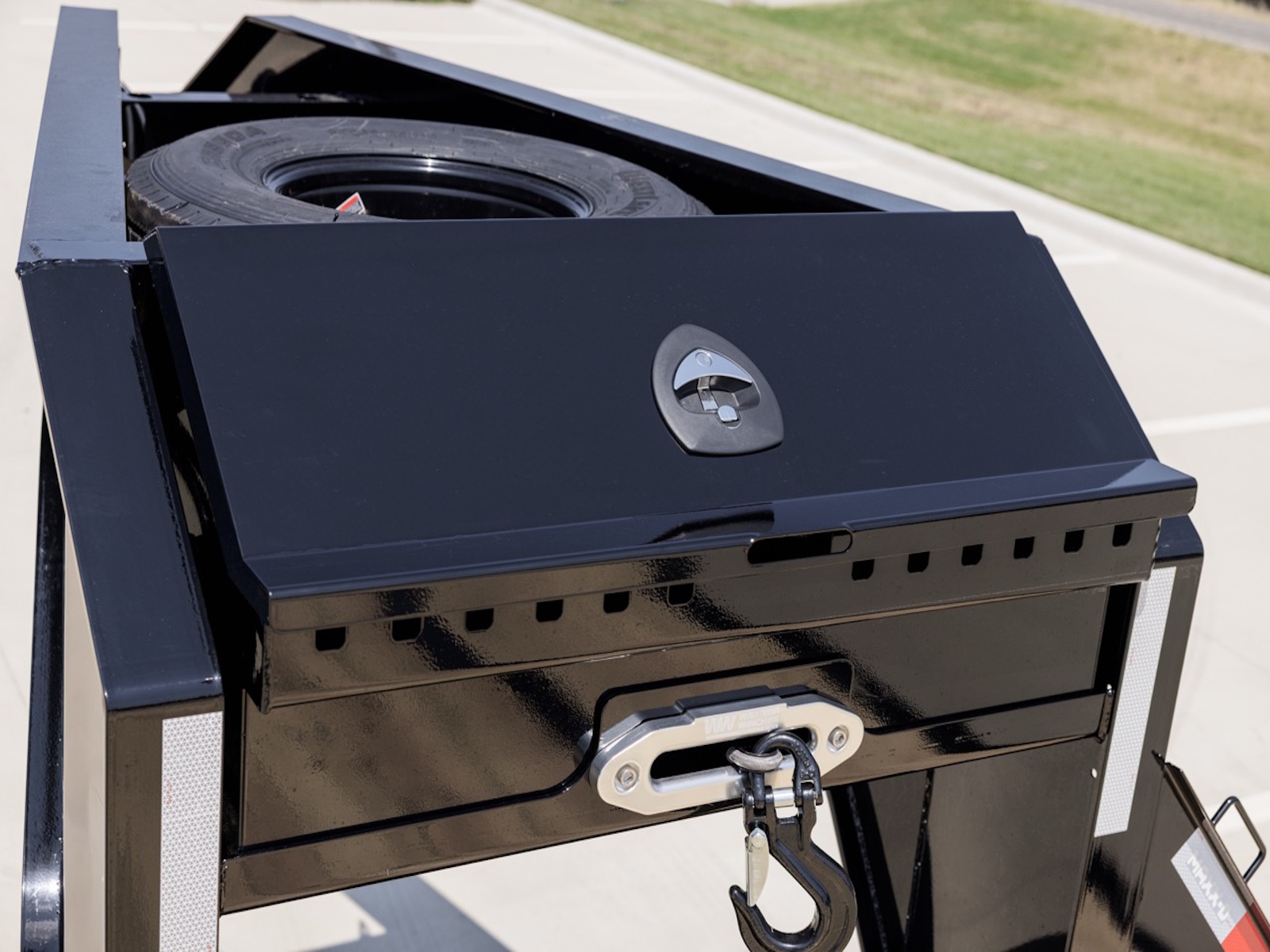

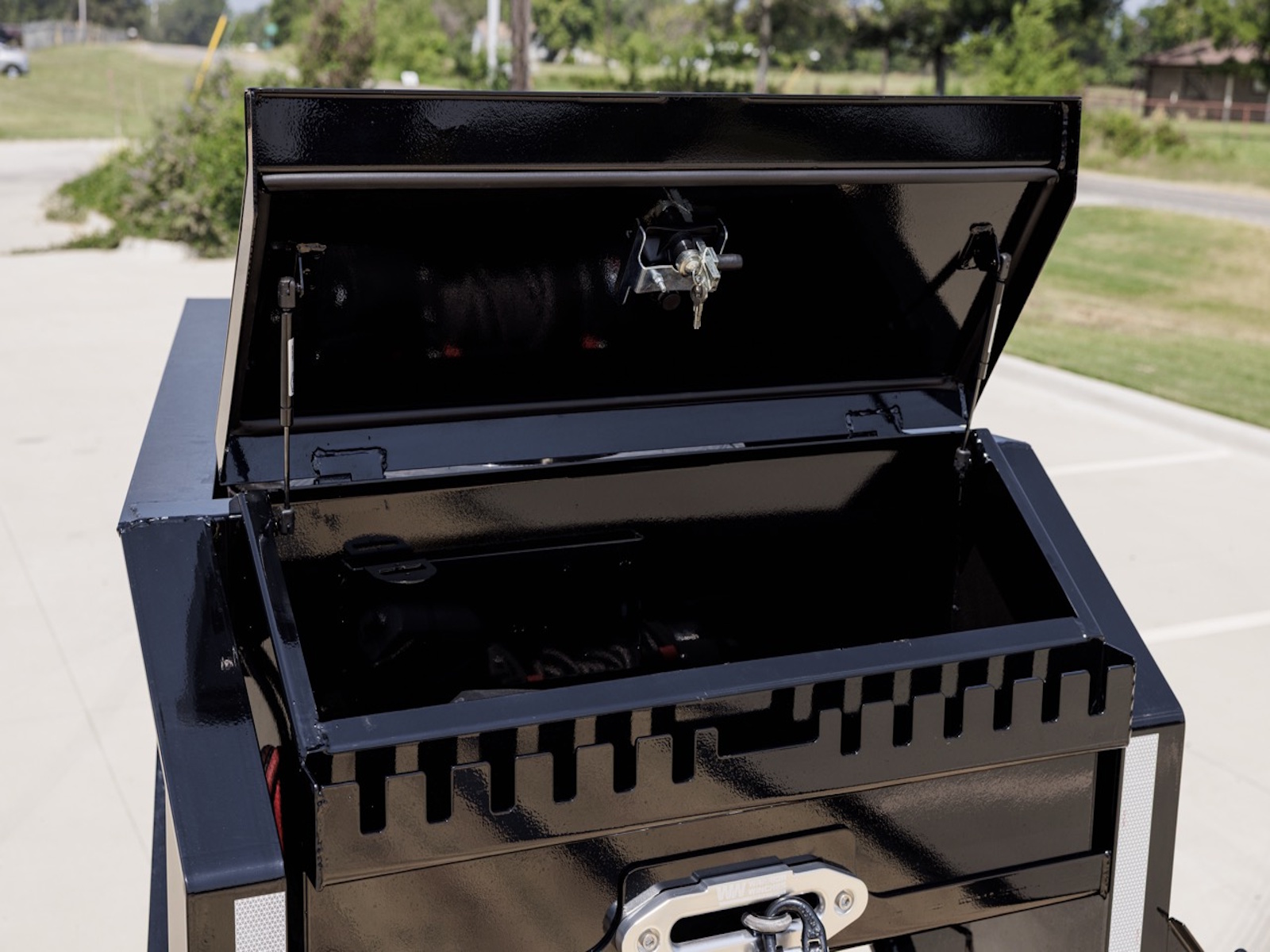

• WARRIOR 17.5K OR 22K WINCH IN NECK
• 7-WATT SOLAR PANEL
• SECOND BATTERY
• LOCKABLE CHAIN RACK IN NECK
• 2X REAR-FACING CARGO LIGHTS
