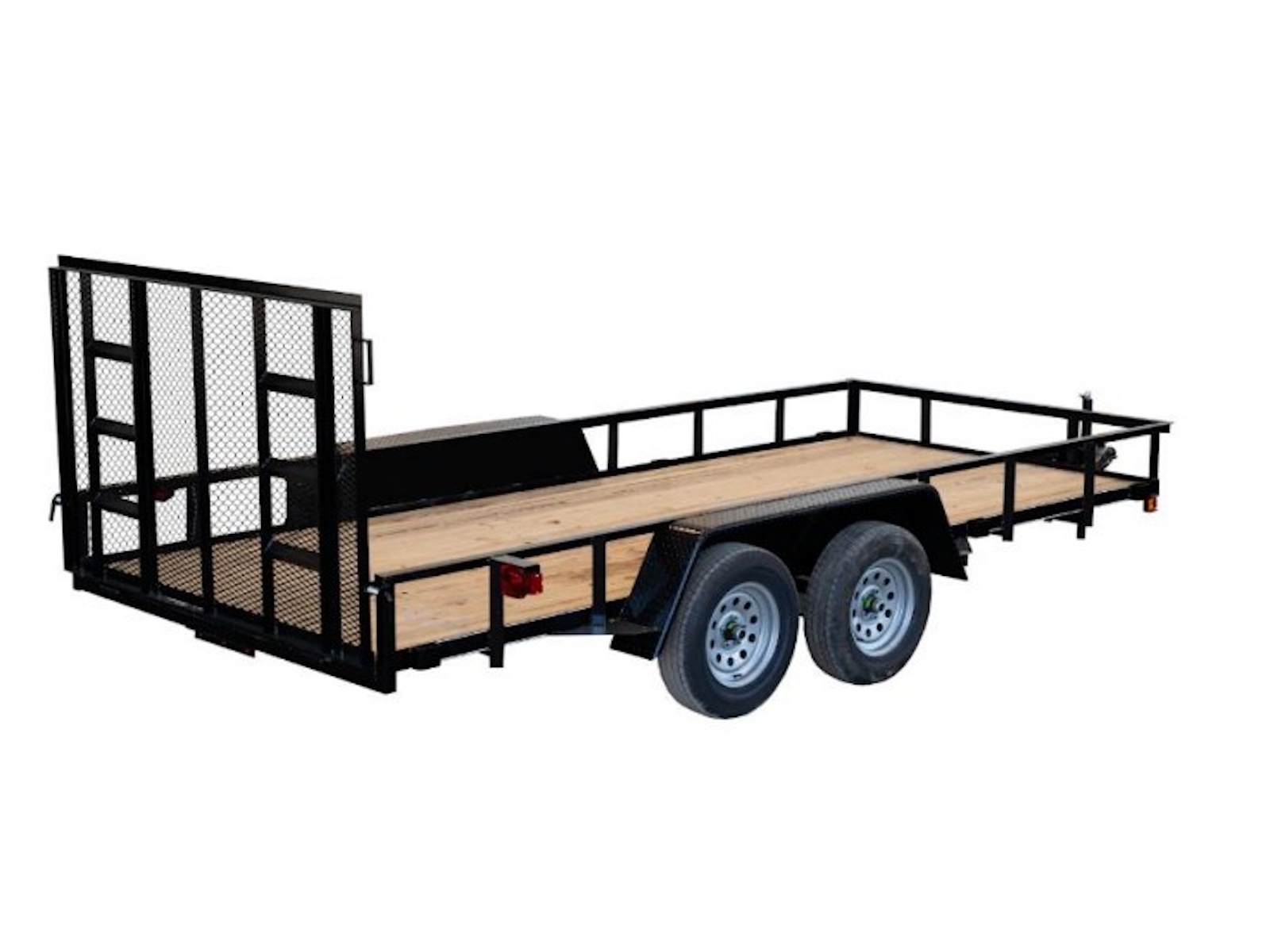

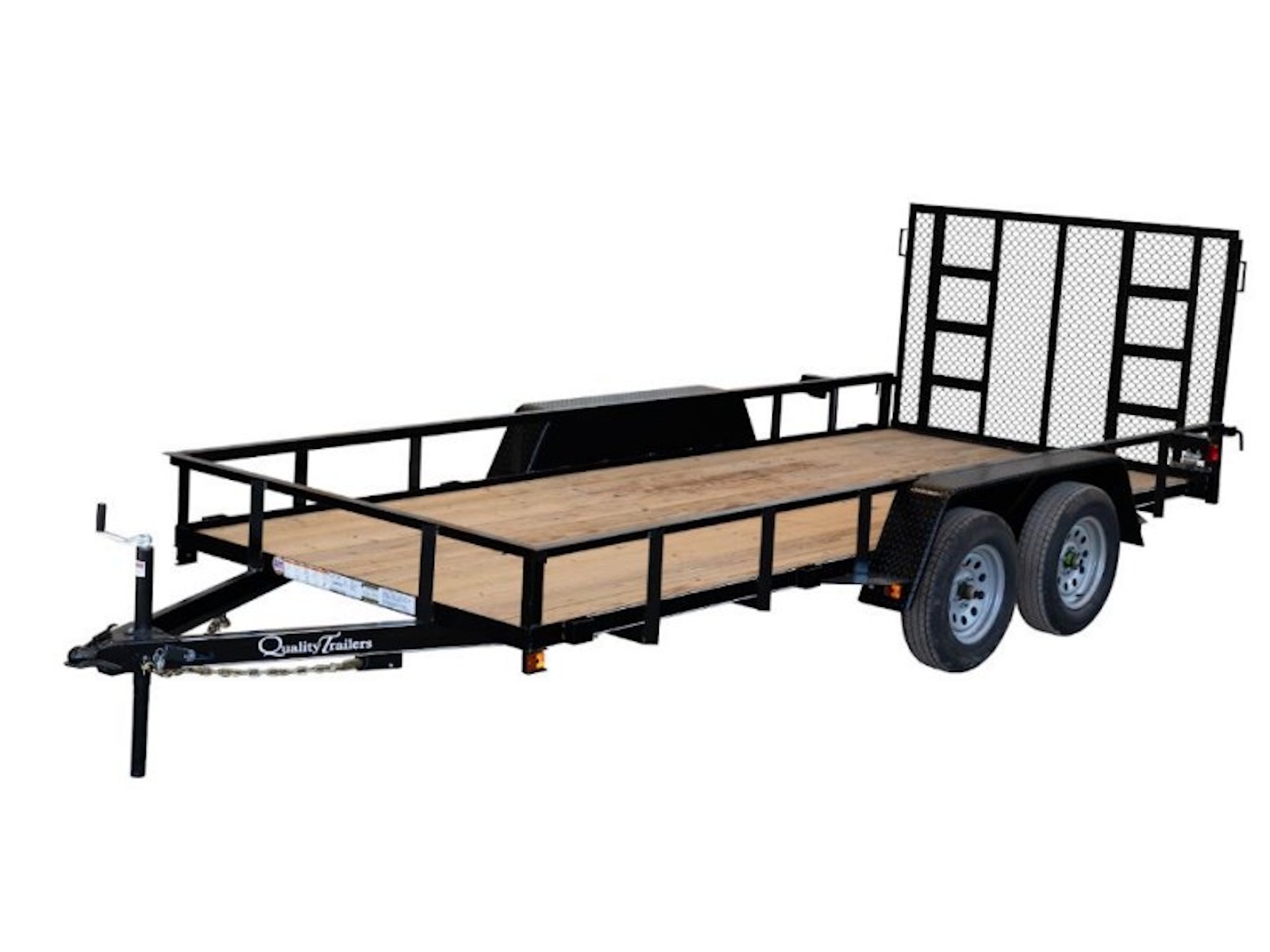

2027 Quality Trailers 7000 GVWR Economy Series 77 in x 18 ft – One Brake Axle

Economy Series feature an all-angle frame, with a 4′ landscape gate, treated wood floor, and stud-mounted lighting. Running gear is spring suspension 3,500 lb. axles with radial tires. This trailer is available with one brake axle or two brake axles. There is no reflective tape on Economy models. The main frame is 3x3x3/16 angle iron with a 2x2x1/8 angle top rail and a 4″ channel non-wrap-around tongue. This model is available in 16′ and 18′ lengths.

General Duty models feature an upgraded all-angle frame. The main frame is 3x3x3/16 angle iron with heavy duty 3x3x3/16 angle top rails and uprights, 3″ channel crossmembers, and a 4″ channel wrap-around tongue. Running gear is spring suspension 3,500 lb. axles with 4-wheel brakes and radial tires. A 4′ landscape gate, and a standard 2′ dovetail make loading lawn equipment easy. A treated wood floor, stud-mounted lighting, and skip reflective tape are standard. General Duty models are available in 16′, 18′, and 20′ lengths in 7,000, 8,500, and 10,000 GVW ratings.

Professional Grade models feature a heavy duty angle iron bottom frame with rectangular tubing top rails. The main frame is 3x3x3/16 angle iron with a 3×2 tubing top rail, 3″ channel crossmembers, and a 4″ channel wrap-around tongue. A 10,000 GVWR model features increased main frame tongue and crossmember upgrades. Running gear is spring suspension 3,500 lb. axles with 4-wheel brakes and upgraded radial tires. A 4′ landscape gate, and a standard 2′ dovetail make loading lawn equipment easy. A sealed wiring harness with all LED lighting and full reflective tape comprise the upgraded lighting package. We also add steps to the front and rear of the fenders. Professional Grade models are available in 16′, 18′, and 20′ lengths in 7,000, 8,500, and 10,000 GVW ratings.

Economy Series – Standard Features

GVWR 7000 lb. – Capacity 6000 lb. with 1000 lb. Hitch load

Ramp Capacity 4000 lb.

Features May Include:

• 16 ft. or 18 ft. treated wood deck
• 77″ between fenders
• 3500 lb. axles with 1 braking axle (second brake axle optional)
• Double eye spring suspension
• 205/75 R15 load range C 6 ply rating Castle Rock Radial tires
• 3x3x3/16″ angle frames
• 2x2x1/8″ top rail
• 2x2x1/4″ angle cross members
• 4″ channel tongue (NOT wrap-around)
• 4 ft. full landscape gate
• 2 5/16″ A-frame coupler
• Top wind jack
• Diamond plate fenders with backs
• Stake pockets, self charging break away kit, safety chains, and DOT approved lighting
• Primed, 2 coats of acrylic enamel, pin striped

Options

• Second braking axle
• Spare tire and wheel
• Wrap-around tongue
